Proline Promag P 500
Misuratore di portata elettromagnetico

Misuratore di portata elettromagnetico - Proline Promag P 500 per l'industria chimica ©Endress+Hauser

Proline Promag P 500 per l'industria chimica

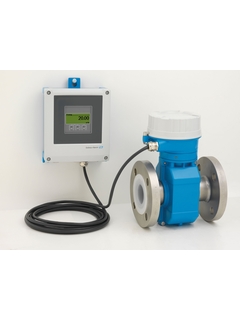

Proline Promag P 500 per l'industria chimica e di trattamento dell'acqua e delle acque reflue ©Endress+Hauser

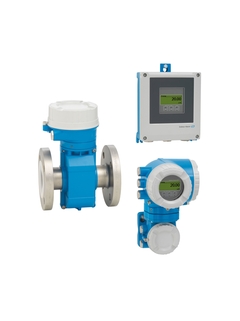

Proline Promag P 500 per l'industria chimica e il settore del trattamento dell'acqua e delle acque reflue

Proline Promag P 500 per l'industria chimica ©Endress+Hauser

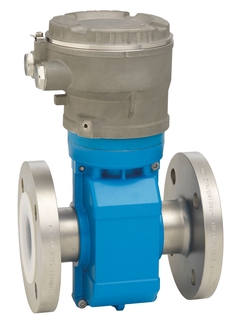

Proline Promag P 500 per l'industria chimica

Il principio elettromagnetico per la misura della portata

Una semplice spiegazione di Heartbeat Technology (3'14'')

  • Misuratore di portata elettromagnetico - Proline Promag P 500 per l'industria chimica
  • Proline Promag P 500 per l'industria chimica e di trattamento dell'acqua e delle acque reflue
  • Proline Promag P 500 per l'industria chimica

Il misuratore di portata per le più elevate temperature di fluido, in versione separata fino a un massimo di 4 ingressi/uscite

Promag P è dedicato ad applicazioni nell'industria chimica e di processo, con liquidi corrosivi e ad elevate temperature. L'innovativo trasmettitore remoto Promag P 500 massimizza la flessibilità d'installazione e la sicurezza operativa in ambienti difficili. Heartbeat Technology garantisce conformità e sicurezza di processo in qualsiasi momento.

Componenti aggiuntivi

  • Vantaggi

    • Applicazioni versatili - ampia gamma di materiali per le parti bagnate

    • Misura di portata con risparmio energetico - nessuna perdita di carico dovuta alla sezione del tubo

    • Senza parti in movimento - non necessita di manutenzione

    • Accesso completo a...

  • Campo applicativo

    • Principio di misura bidirezionale indipendente da pressione, densità, temperatura e viscosità

    • Dedicato ad applicazioni nell'industria chimica e di processo, con liquidi corrosivi e ad elevate temperature

    Proprietà del dispositivo

    • Diametro nominale: DN 600...

Caratteristiche e specifiche

Indietro

Details

  • Principio di misura

    Elettromagnetico

  • Caratteristiche principali

    Il misuratore di portata per le più elevate temperature di fluido, in versione separata con un massimo di 4 ingressi/uscite. Dedicato ad applicazioni nell'industria chimica e di processo, con liquidi corrosivi ed elevate temperature del fluido.

  • Caratteristiche

    Applicazioni versatili – ampia gamma di materiali per le parti bagnate. Misura di portata con risparmio energetico – nessuna perdita di carico dovuta alla sezione del tubo. Senza parti in movimento - non necessita di manutenzione. Diametro nominale: max. DN 600 (24"). Tutte le più comuni approvazioni Ex.

  • Caratteristiche del trasmettitore

    Accesso completo a informazioni di processo e diagnostiche – numerosi ingressi/uscite e bus di campo con libertà di combinazione. Complessità e varietà ridotte – configurazione libera della funzionalità di ingresso/uscita. Funzione di verifica integrata – Heartbeat Technology. Versione separata con un massimo di 3 ingressi/uscite. Display retroilluminato con Touch Control e accesso WLAN.

  • Diametro

    DN 15...600 (½...24")

  • Materiali delle parti bagnate

    Rivestimento: PFA; PTFE
    Elettrodi: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); Tantalio; Platino;
    Titanio; Duplex 1.4462 (UNS S31803)

  • Variabili misurate

    Portata volumetrica, conducibilità, portata massica

  • Errore di misura massimo

    Portata volumetrica (standard): ±0,5 % v.i. ± 1 mm/s (0.04 in/s)
    Portata volumetrica (opzione): ±0,2 % v.i. ± 2 mm/s (0.08 in/s)

  • Campo di misura

    4 dm³/min ... 9600 m³/h (1 gal/min ... 44 000 gal/min)

  • Campo di pressione

    PN 40, Classe 300, 20K

  • Temperatura di processo

    Materiale di rivestimento PFA: –20...+150 °C (–4...+302 °F)
    Materiale di rivestimento PFA alte temperature: –20...+180 °C (–4...+356 °F)
    Materiale di rivestimento PTFE: –40...+130 °C (–40...+266 °F)

  • Temperatura ambiente

    Materiale della flangia acciaio al carbonio: –10...+60 °C (+14...+140 °F)
    Materiale della flangia acciaio inox: –40...+60 °C (–40...+140 °F)

  • Materiale del corpo del sensore

    DN da 15 a 300 (da ½ a 12"): AlSi10Mg, rivestito
    DN da 350 a 600 (da 14 a 24"): Acciaio al carbonio con vernice protettiva
    Custodia del sensore (standard): AlSi10Mg, rivestita
    Custodia del sensore (opzionale): 1.4409 (CF3M) simile al 316L

  • Materiale della custodia del trasmettitore

    AlSi10Mg, coated; 1.4409 (CF3M) similar to 316L; Polycarbonat

  • Protezione elettronica

    Sensore versione separata (standard): IP66/67, custodia Type 4X
    Sensore versione separata (opzione): IP69. Trasmettitore versione separata: IP66/67, custodia Type 4X

  • Display / Operazione

    Display retroilluminato a 4 righe con Touch Control (operatività dall'esterno)
    Possibilità di configurazione tramite display locale e tool operativi

  • Uscite

    4 uscite:
    4-20 mA HART (attiva/passiva)
    4-20 mA WirelessHART
    4-20 mA (attiva/passiva)
    Uscita impulsi/frequenza/stato (attiva/passiva)
    Doppia uscita impulsiva (attiva/passiva)
    Uscita a relè

  • Ingressi

    Ingresso di stato
    Ingresso 4-20 mA

  • Comunicazione

    HART, PROFIBUS PA, PROFIBUS DP, FOUNDATION Fieldbus, Modbus RS485, Profinet, Ethernet/IP, OPC-UA

  • Alimentazione

    c.c. 24 V
    c.a. 100...230 V
    c.a. 100...230 V / c.c. 24 V (area sicura)

  • Approvazioni Ex

    ATEX, IECEx, cCSAus, INMETRO, NEPSI, EAC

  • Sicurezza del prodotto

    CE, C-tick, EAC marking

  • Sicurezza funzionale

    Sicurezza funzionale secondo IEC 61508, valida per applicazioni di sicurezza in conformità a IEC 61511

  • Certificati e approvazioni metrologiche

    Taratura eseguita in laboratori accreditati (secondo ISO/IEC 17025)

    La Heartbeat Technology soddisfa i requisiti di verifica tracciabile previsti dalla norma ISO 9001:2008 – Sezione 7.6 a (attestazione TÜV)

  • Certificati e approvazioni per pressione

    PED, CRN

  • Certificati dei materiali

    3.1 material

  • Certificati e approvazioni igieniche

    ACS, NSF 61

Documenti / Manuali / Software

Accessori / Parti di ricambio

Nr
Order code
Specification
  • 31
    • Nr 31 Order code 71323007

      Kit alimentazione, 100-230VAC, Ex

      Per: Promag/Promass 300/500, custodia trasmettitore, scomparto elettronico.

    • Nr 31 Order code 71323008

      Kit alimentazione, 24VDC, Ex

      Per: Promag/Promass 300/500, custodia trasmettitore, scomparto elettronico.

    • Nr 31 Order code 71323009

      Kit aliment.,100-230VAC/24VDC, No Ex

      Per: Promag/Promass 300/500 digitale. No Ex, Zona 2, custodia trasmettitore, scomparto elettronico.

  • 47
  • 36
  • 39
    • Nr 39 Order code 71185788

      Kit T-DAT,Promass 100,Promag 100/400(C)

      Per: Promag/Promass 100/300/500, 500 digitale, Prosonic Flow E 100, Promag 400(C). (C) = index C.

  • 33
  • 37
    • Nr 37 Order code 71323010

      Kit module cartridge, 300/500, Ex

      Usage: transmitter housing, electronic compartment. Consists of: module cartridge incl. interconnection board.

  • 34
  • 46
  • 45
    • Nr 45 Order code 71323075

      Kit conn. terminale opz. A, 300/500, Ex

      Uso: custodia trasmettitore Alu/cast, Scomparto di collegamento. Opzione A = HART, PROFIBUS PA, FOUNDATION Fieldbus. Consiste in: 2x collegamento terminale 2-Pol., 1x collegamento terminale 4-Pol.

  • 35
  • 45
    • Nr 45 Order code 71323076

      Kit conn.terminal option B, 300/500, Ex

      Usage: transmitter housing Alu/cast, connection compartment. Option B = EtherNet, PROFINET. Consists of: 2x connection terminal 2-Pol.

  • 50
  • 45
    • Nr 45 Order code 71327819

      Kit conn.terminal option C, 300/500, Ex

      Usage: transmitter housing Alu/cast, connection compartment. Option C = PROFIBUS DP, Modbus RS485. Consists of: 2x connection terminal 2-Pol., 1x connection terminal 4-Pol.

    • Nr 45 Order code 71323077

      Kit terminal option A, 500 dig., Non-haz

      Usage: transmitter housing Alu/polycarbonate, connection compartment. Option A = HART, PROFIBUS PA, FOUNDATION Fieldbus. Consists of: 1x connection terminal 2-Pol., 1x connection terminal 3-Pol., 1x connection terminal 4-Pol., 1x connection terminal 6-Pol.

    • Nr 45 Order code 71323078

      Kit terminal option B, 500 dig., Non-haz

      Usage: transmitter housing Alu/polycarbonate, connection compartment. Option B = EtherNet, PROFINET. Consists of: 1x connection terminal 3-Pol., 1x connection terminal 4-Pol., 1x connection terminal 6-Pol.

    • Nr 45 Order code 71327820

      Kit terminal option C, 500 dig., Non-haz

      Usage: transmitter housing Alu/polycarbonate, connection compartment. Option C = PROFIBUS DP, Modbus RS485. Consists of: 1x connection terminal 2-Pol., 1x connection terminal 3-Pol., 1x connection terminal 4-Pol., 1x connection terminal 6-Pol.

  • 44
    • Nr 44 Order code 71323264

      Kit connection board, Promag P/W, 500,Ex

      Usage: Sensor connection housing. Consists of: connection board, cover to connection board.

  • 20
    • Nr 20 Order code 71323016

      Kit coper., vetro, Alu,Non-haz/Exde

      Per: Promag/Promass 300, alloggiamento del trasmettitore Alu, Non-haz. Promag/Promass 300/500, alloggiamento del trasmettitore Alu, Ex. Composto da: coperchio Alu, vetro, O-Ring 110.7x3.53 HNBR.

    • Nr 20 Order code 71323017

      Kit cover,glass, Alu, -50oC,Non-haz/Exde

      Usage: Promass 300, transmitter housing Alu, Non-haz. Promag 500, Promass 300/500, transmitter housing Alu, Ex. Consists of: cover Alu, sight glass, O-Ring 110,7x3,53 FVMQ, -50oC/-58oF.

    • Nr 20 Order code 71323020

      Kit cover, sight glass, Alu, Exd

      Usage: Promag/Promass 300/500, transmitter housing Alu, Ex. Consists of: cover Alu, sight glass, O-Ring 110.7x3.53 HNBR.

    • Nr 20 Order code 71323021

      Kit cover, sight glass, Alu, -50oC, Exd

      Usage: Promag 500, Promass 300/500, transmitter housing Alu, Ex. Consists of: cover Alu, sight glass, O-Ring 110,7x3,53 FVMQ, -50oC/-58oF.

    • Nr 20 Order code 71323024

      Kit cover, sight glass, cast, Ex

      Usage: Promag/Promass 300/500, transmitter housing cast, Ex. Consists of: cover cast, sight glass, O-Ring 110.7x3.53 HNBR.

    • Nr 20 Order code 71323025

      Kit cover, sight glass, cast, -50oC, Ex

      Usage: Promag 500, Promass 300/500, transmitter housing cast, Ex. Consists of: cover cast, sight glass, O-Ring 110,7x3,53 FVMQ, -50oC/-58oF.

  • 70
    • Nr 70 Order code 71323026

      Kit cover gasket, sight glass/blind

      Usage: Promag/Promass 300/500, transmitter housing Alu/cast. Consists of: 10x O-Ring 110.7x3.53 HNBR.

    • Nr 70 Order code 71323027

      Kit cover gasket,sight glass/blind,-50oC

      Usage: Promag 500, Promass 300/500, transmitter housing Alu/cast, Consists of: O-Ring 110,7x3,53 FVMQ, -50oC/-58oF.

  • 22
    • Nr 22 Order code 71323032

      Kit cover, electronic compart., Alu, Ex

      Usage: Promag/Promass 300/500, transmitter housing Alu, Ex. Consists of: cover Alu, O-Ring 120,2x3,53 HNBR.

    • Nr 22 Order code 71323033

      Kit cover, electr.compart., Alu,-50oC,Ex

      Usage: Promag 500, Promass 300/500, transmitter housing Alu, Ex. Consists of: cover Alu, O-Ring 120,2x3,53 FVMQ, -50oC/-58oF.

    • Nr 22 Order code 71323034

      Kit cover, electronic compart., cast, Ex

      Usage: Promag/Promass 300/500, transmitter housing cast, Ex. Consists of: cover cast, O-Ring 120,2x3,53 HNBR.

    • Nr 22 Order code 71323035

      Kit cover, electr.compart.,cast,-50oC,Ex

      Usage: Promag 500, Promass 300/500, transmitter housing cast, Ex. Consists of: cover cast, O-Ring 120,2x3,53 FVMQ, -50oC/-58oF.

  • 74
    • Nr 74 Order code 71323036

      Kit cover gasket, electronic compart.,Ex

      Usage: Promag/Promass 300/500, transmitter housing Alu/cast, Ex. Consists of: 10x O-Ring 120,2x3,53 HNBR.

    • Nr 74 Order code 71323037

      Kit cover gasket,elect.compart.,-50oC,Ex

      Usage: Promag 500, Promass 300/500, transmitter housing Alu/cast, Ex. Consists of: O-Ring 120,2x3,53 FVMQ, -50oC/-58oF.

  • 23
    • Nr 23 Order code 71323038

      Kit cover, wall mount, Alu, Ex

      Usage: Promag/Promass 500, wall mount transmitter Alu, Ex, connection compartment. Consists of: cover Alu, O-Ring 88,50x3,53 HNBR.

    • Nr 23 Order code 71323039

      Kit cover, wall mount, Alu, -50oC, Ex

      Usage: Promag/Promass 500, wall mount transmitter Alu, Ex, connection compartment. Consists of: cover Alu, O-Ring 88,50x3,53 FVMQ, -50oC/-58oF.

    • Nr 23 Order code 71323040

      Kit cover, wall mount, cast, Ex

      Usage: Promag/Promass 500, wall mount transmitter cast, Ex, connection compartment. Consists of: cover cast, O-Ring 88,50x3,53 HNBR.

    • Nr 23 Order code 71323041

      Kit cover, wall mount, cast, -50oC, Ex

      Usage: Promag/Promass 500, wall mount transmitter cast, Ex, connection compartment. Consists of: cover cast, O-Ring 88,50x3,53 FVMQ, -50oC/-58oF.

  • 75
    • Nr 75 Order code 71323042

      Kit cover gasket, wall mount, Ex

      Usage: Promag/Promass 500, wall mount transmitter Alu/cast, Ex, connection compartment. Consists of: 10x O-Ring 88,50x3,53 HNBR.

    • Nr 75 Order code 71323043

      Kit cover gasket, wall mount, -50oC, Ex

      Usage: Promag/Promass 500, wall mount transmitter Alu/cast, Ex, connection compartment. Consists of: O-Ring 88,50x3,53 FVMQ, -50oC/-58oF.

  • 20
    • Nr 20 Order code 71384170

      Kit cover, alu,Promag 400(C),500 digital

      Usage: Promag 400(C) = generation index C, Promag/Promass 500 digital, transmitter housing Alu. Consists of: cover Alu complete included O-Ring 196,44x3,53 VMQ, default and -50oC/-58oF, wire with screw lock 1,5x150.

    • Nr 20 Order code 71408508

      Kit cover, polycarb., 500 digital

      Usage: Promag/Promass 500 digital, transmitter housing polycarbonate. Consists of: Cover polycarbonate complete, O-Ring 196,44x3,53 VMQ, default and -50oC/-58oF, wire with screw lock 1,5x150.

  • 70
    • Nr 70 Order code 71278078

      Kit cover gasket, alu,400(C),500 digital

      Usage: Promag 400(C) = generation index C, Promag/Promass 500 digital, transmitter housing Alu, Ex. Consists of: 10x O-Ring 196,44x3,53 VMQ, default and -50oC/-58oF.

    • Nr 70 Order code 71278077

      Kit 10 cover gasket, polycarbonate

      Usage: Promag 400(C), 500 digital with polycarbonate housing. (C) = generation index C. Consists of: 10x O-Ring 196,44x3,53 VMQ.

  • 24
    • Nr 24 Order code 71228796

      Kit cover, remote, Alu

      Usage: Promag 400(C) = generation index C, Promag 500, Promag/Promass 500 digital, sensor connection housing. Consists of: cover Alu, O-Ring 113,90x3,53 HNBR.

  • 73
    • Nr 73 Order code 71228798

      Kit housing gaskets, remote, Alu

      Usage: Promag 400(C) = generation index C, Promag 500, Promag 500 digital, sensor connection housing. Consists of: O-Ring 113,90x3,53 HNBR for cover, gasket EPDM for housing/sensor L/P/W, O-Ring 29,87x1,78 HNBR for sensor plug.

  • 24
    • Nr 24 Order code 71323063

      Kit cover, remote, cast, Ex

      Usage: Promag/Promass 500, Promag/Promass 500 digital, sensor connection housing. Consists of: cover cast, O-Ring 120,2x3,53 HNBR.

  • 73
    • Nr 73 Order code 71323067

      Kit housing gaskets, remote, cast, Ex

      Usage: Promag 500, Promag 500 digital, sensor connection housing. Consists of: O-Ring 120,2x3,53 HNBR for cover, O-Ring 88,50x3,53HNBR for housing/sensor O-Ring 29,87x1,78 HNBR for sensor plug.

  • 71
    • Nr 71 Order code 71323069

      Kit interface gaskets, Promag 300/500

      Usage: transmitter housing/sensor or transmitter housing/wall mount. Consists of: 5x O-Ring 88,50x3,53 HNBR for interface, 5x O-Ring 29,87x1,78 HNBR for for sensor plug.

    • Nr 71 Order code 71323070

      Kit interface gaskets, Promag 500, -50oC

      Usage: transmitter housing/wall mount. Consists of: O-Ring 88,50x3,53 FVMQ for interface, -50oC/-58oF, O-Ring 29,87x1,78 FVMQ for for sensor plug, -50oC/-58oF.

  • 11
    • Nr 11 Order code 71323081

      Kit protective cover option A,300/500,Ex

      Usage: transmitter housing Alu/cast, connection compartment. Option A = HART, PROFIBUS PA, PROFIBUS DP, Modbus RS485, FOUNDATION Fieldbus. Consists of: Connection compartment protective cover, display carrier, 2x screw M4x10.

    • Nr 11 Order code 71323082

      Kit protective cover option B,300/500,Ex

      Usage: transmitter housing Alu/cast, connection compartment. Option B = EtherNet, PROFINET. Consists of: Connection compartment protective cover, display carrier, 2x screw M4x10.

  • 13
    • Nr 13 Order code 71276494

      Kit securing clamp, screw

      Usage: Promass 100, Promag 100, Prosonic Flow E 100/E Heat, CNGmass, LPGmass, LNGmass. Sensor housing: Promag 400(C), (C) = generation index C, Promag/Promass 500, Promag/Promass 500 digital. Consists of: cover clamp, screw M4x16.

  • 82
    • Nr 82 Order code 71228792

      Kit display protec., 400(C)/500 digital

      (C) = generazione index C. Composto da: protezione display 1.4301, materiale per montaggio.

  • 87
    • Nr 87 Order code 71343504

      Kit weather protection cover,500 digital

      Usage: Promag/Promass 500 digital, transmitter housing. Consists of: weather protection cover 4404.

    • Nr 87 Order code 71343505

      Kit weather protection cover, 300/500

      Usage: Promag/Promass 300/500, transmitter housing. Consists of: weather protection cover 4404, installation material.

Storie di successi

Questo sito utilizza cookie. Continuando a esplorare il sito, accettate l'utilizzo dei cookie. Maggiori informazioni qui

Confronta prodotti
