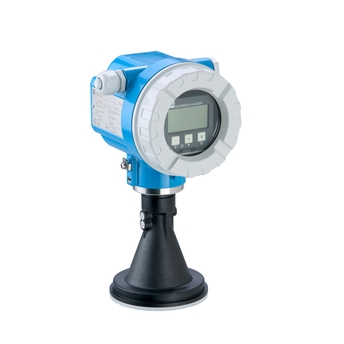

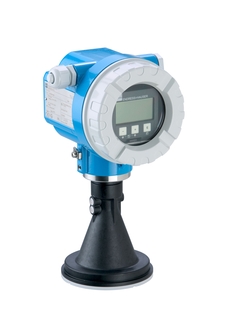

Micropilot M FMR244

Questo prodotto non è più disponibile.

Cercare la nuova versione nella sezione predecessore / successore o contattare l'ufficio Endress+Hauser locale.

Details

  • Principio di misura

    Livello radar

  • Caratteristica / Applicazione

    Misura di livello senza contatto per solidi, da granulari a polverosi, campo di misura fino a 15 m. Applicazioni con solidi estremamente abrasivi, ad es. ferrite/vetro, ecc.

  • Alimentazione / Comunicazione

    A 2 fili (HART/PROFIBUS PA/Fieldbus Foundation)

  • Frequenza

    Banda K (~ 26 GHz )

  • Antenna

    A cono DN80/3"

  • Precisione

    ±15 mm (o 0,04% del campo, il valore maggiore)

  • Temperatura ambiente

    -40 … +80 °C
    (-40 … +266 °F)

  • Temperatura di processo

    -40 … +80 °C
    (-40 … +266 °F)

  • Pressione assoluta di processo / limite massimo di sovrapressione

    Vuoto … 3 bar
    (Vuoto … 43.5 psi)

  • Parti bagnate

    PP, PBT, Silicone

  • Attacco al processo

    Flangia:

    UNI DN80 … 150

  • Distanza massima di misura

    15 m (49 ft)(opzione F)

  • Comunicazione

    4-20 mA HART

    PROFIBUS PA

    Fieldbus Foundation

  • Certificati / Approvazioni

    ATEX, FM, CSA, IECEx, TIIS, NEPSI

  • Opzioni

    Display separato

    Staffa di montaggio

    Guarnizione della flangia variabile per regolazione

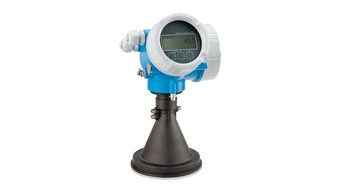

  • Successore

    Micropilot FMR56

  • Limiti applicativi

    Dk < 1,6

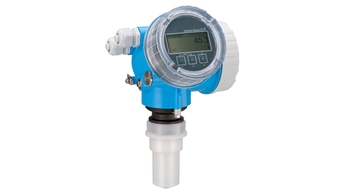

  • Principio di misura

    Livello radar

  • Caratteristica / Applicazione

    Small horn with high chemical compatibility

  • Alimentazione / Comunicazione

    A 2 fili (HART/PROFIBUS PA/Fieldbus Foundation)

  • Frequenza

    Banda K (~ 26 GHz )

  • Precisione

    ±3 mm

  • Temperatura ambiente

    -40 °C...+80 °C

    (-40 °F...+176 °F)

  • Temperatura di processo

    -40 … +130 °C

    (-40 … +266 °F)

  • Pressione assoluta di processo / limite massimo di sovrapressione

    Vuoto … 3 bar

    (Vuoto … 43.5 psi)

  • Parti bagnate

    PVDF, PTFE, PP, PBT

  • Attacco al processo

    Filettatura:

    NPT 1 1/2, G 1 1/2

    Flangia slip-on:

    DN80 … DN150 (3 … 6"),

  • Dimensione del serbatoio / Applicazione

  • Distanza massima di misura

    Standard: 20m (65ft)

    With additional option F (G): 25m (82ft)

  • https://portal.endress.com/picpool/sft/prodcont/technicalinfo/Radar_Mediengruppe_en.jpg https://portal.endress.com/picpool/sft/prodcont/technicalinfo/Radar_not_selected_FMR244.jpg
  • Comunicazione

    4-20 mA HART
    PROFIBUS PA
    Fieldbus Foundation

  • Certificati / Approvazioni

    ATEX, FM, CSA, IECEx, TIIS, NEPSI

    WHG Prevenzione di troppo pieno

    SIL

    GL navale/ABS/NK

  • Limiti applicativi

    Maximum measuring range is dependent on the tank form and/or application


    Ammoniacal gas phase

    FMR230 in stilling well

    Strong buildup formation

    FMR230 with air purge

    Low DK

    FMR240

    Only PTFE resistant

    FMR245

    Custody transfer measurement

    FMR540

Documenti / Manuali / Software

Accessori / Parti di ricambio

Nr
Order code
Specification
    • Order code 52006628

      PROFIBUS PA CONNETTORE M20 (WDM) 150mm

      Connettore a quattro poli M12 adatto al montaggio su passacavo M20X1.5 per il collegamento diretto degli strumenti alla T-BOX. Completo di cavo di collegamento lungo 150 mm Non per PROMAG e PROMASS.

  • 20
    • Nr 20 Order code 517391-0011

      Cover F12/T12 Alu, coated, gasket

      Material: aluminium, coated. O-ring EPDM. Usage: FMR230/FMR231, FMR240/FMR244/FMR245, FMR250, FMU40/FMU41/FMU42/FMU43/FMU44.

    • Nr 20 Order code 52005936

      Coperchio F12/T12 Alu,finestra,guarniz.

      Materiale: alluminio per tastiera + modulo display VU331 e custodia F12/T12 Micropilot M/S, Prosonic M, Levelflex M

  • 12
    • Nr 12 Order code 535720-9020

      Set of screws housing F12/T12/F23

      Consists of: 1x stop screw M5x10. 1x retaining screw M8x10. Usage: FMR230/FMR231, FMR240/FMR244/FMR245, FMR250, FMU40/FMU41/FMU42/FMU43/FMU44.

  • 65
    • Nr 65 Order code 535720-9010

      Sealing kit FMR2xx

      Consists of: 2x gasket Pg13.5 FA. 2x O-ring 17.0x2.0 EPDM. 1x O-ring 49.21x3.53 EPDM. 2x O-ring 17.12x2.62 FKM. 1x O-ring 113.9x3.53 EPDM. 1x O-ring 72.0x3.0 EPDM. Usage: FMR230/FMR231, FMR240/FMR244/FMR245, FMR250.

  • 25
    • Nr 25 Order code 518710-0020

      Cover T3/T12 Alu, coated, gasket

      Material: aluminium, coated. O-ring EPDM. Usage: FMR230/FMR231,FMR240/FMR244/ FMR245, FMR250, FMR530/FMR531/FMR532/ FMR533, FMR540, FMU40/FMU41/FMU42.

  • 11
    • Nr 11 Order code 52005643

      Abdeckhaube T12 (MICROPILOT M/S)

      Cable compartment, electronics side. Usage: Micropilot M/S, Prosonic M, Levelflex M.

    • Nr 11 Order code 52006026

      coperchio per vano connessioni F12/F23

      Cappuccio per vano connessioni Micropilot M, Prosonic M, Levelflex M

    • Nr 11 Order code 52019062

      Coperchio per vano connessioni F12/F23

      Cappuccio per vano connessioni per display separato FHX40 Micropilot M, Prosonic M, Levelflex M

    • Order code 52018204

      Adaptionskit Gehäuse F12, 2Dr, f. FHX40

      Modification to remote display. Housing F12, 2-wire electronics. Non-hazardous area only. Please order FHX40 separately. Usage: Micropilot II/M, Prosonic M, Levelflex M.

    • Order code 71092209

      O-ring 113,9x3,63 EPDM, 5 pezzi

      Per: coperchio T12/F12/F23.

    • Order code 543199-0001

      Protective cover for housing T12/F12, SS

      Usage: Micropilot M, Micropilot S, Prosonic M, Levelflex M. Material: 316Ti.

  • 35
    • Nr 35 Order code 52006197

      Modulo morsetti 4-poli, HART, 2-fili

      con connessione cavo per custodia F12 Micropilot M, Levelflex M, Prosonic M

    • Nr 35 Order code 52012156

      Klemmenmodul 4p +2Dr-Filter/PA+FF(F12

      PROFIBUS PA, FOUNDATION Fieldbus. Usage: Micropilot II/M, Prosonic M, Levelflex M.

    • Nr 35 Order code 52013302

      Mod.termin. Ex d, 4poli, 2fili, HART,T12

      Per: custodia T12, Levelflex M, Prosonic M, Micropilot M.

    • Nr 35 Order code 52013303

      Klemmenmodul FMP40, Ex d, 2-Dr., PA, FF

      2-wire, PROFIBUS PA/FOUNDATION Fieldbus. Ex d limiter. Usage: housing T12, Levelflex M, Micropilot M, Prosonic M.

    • Nr 35 Order code 52014817

      Klemmenmodul 4pol, HART, Ferrit, (F12)

      GL/ABS marine certificate. Usage: Micropilot M, Levelflex M.

    • Nr 35 Order code 52014818

      Klemmenmodul 4pol, PA/FF, Ferrit,(F12)

      GL/ABS marine certificate. Usage: Micropilot M, Levelflex M.

    • Nr 35 Order code 52018949

      Terminal module 4p, EEx ia, HART,T12,OVP

      4-pole, 2-wire. OVP = overvoltage protection. Usage: housing T12, Levelflex M, Prosonic M, Micropilot M.

    • Nr 35 Order code 52018950

      Terminal mod. 2-p.,EEx ia,PA/FF,T12,OVP

      2-pole, 2-wire. PROFIBUS PA, FOUNDATION Fieldbus. OVP = overvoltage protection. Usage: housing T12, Levelflex M, Prosonic M, Micropilot M.

  • 31
    • Nr 31 Order code 52024953

      HF-module FMR24x, FMR250, 26GHz

      Version uP III.3. Usage: electronics from software version 1.0, FMR250. Electronics from software version 5.0, FMR240/FMR244/FMR245, advanced dynamics.

    • Nr 31 Order code 71026572

      HF modulo FMR24x, 26GHz, v5.0

      versione: uP III.5 per elettronica da software versione 5.0 Micropilot M FMR240/FMR244/FMR245

  • 30
    • Nr 30 Order code 71023757

      Elettronica FMR23x/FMR24x, Ex, HART,v4.0

      Versione 4.0 Per: FMR230/FMR231, FMR240/FMR244/FMR245.

    • Nr 30 Order code 71023758

      Electronics FMR23x/FMR24x, Ex, PA, v4.0

      PROFIBUS PA, version 4.0. Usage: FMR230/FMR231, FMR240/FMR244/FMR245.

    • Nr 30 Order code 71023759

      Elettronica FMR23x/FMR24x, Ex, FF, v4.0

      FOUNDATION Fieldbus, versione 4.0 Per: FMR230/FMR231, FMR240/FMR244/FMR245 con modulo HF, versione uP III.2.

    • Nr 30 Order code 71026754

      Elettronica FMR24x/250, Ex, HART, v5.0

      versione 5.0 Micropilot M FMR240/FMR244/FMR245/FMR250

    • Nr 30 Order code 71026819

      Elettronica FMR24x/250, Ex, PA, v5.0

      PROFIBUS PA, version 5.0 Per: FMR240/FMR244/FMR245, FMR250.

    • Nr 30 Order code 71026820

      Electronics FMR24x/250, Ex, FF, v5.0

      FOUNDATION Fieldbus, version 5.0. Usage: FMR240/FMR244/FMR245, FMR250.

  • 40
    • Nr 40 Order code 52026443

      Display VU331, versione 2

      Display alfanumerico, 4-linee Per: FMR530/532/533, FMR540, FMU40/41/42/43/44.

    • Order code FHX40-

      Display FHX40

      Display remoto per: Micropilot M, Prosonic M, Levelflex M, Gammapilot M. Custodia da campo IP65/IP67 NEMA 4x. LCD a 4 linee. :: calibrazione e visualizzazione dati tramite menu guida :: Setup facile :: Lingua selezionabile :: visualizzaz. della curva di inviluppo

  • 50
