iTHERM ModuLine TM131
Robusto termometro modulare per impostazioni trend, per una vasta gamma di applicazioni industriali
Complesso RTD o TC completo di pozzetto termometrico prodotto o da utilizzare con un pozzetto esistente. Un trasmettitore da testa opzionale, con tutti i comuni protocolli di comunicazione - Tecnologia Bluetooth® inclusa e caratteristiche speciali come iTHERM QuickNeck, per ripetere la taratura n modo semplice, senza utensili, la tecnologia del sensore e del pozzetto resistente alle vibrazioni e a risposta rapida (iTHERM StrongSens, QuickSens), nonché le approvazioni per aree pericolose, rendono il dispositivo pronto all'uso, con una maggiore precisione e affidabilità delle misurazioni.
- F
- L
- E
- X
-
Prodotti semplici
- Selezione, installazione e messa in funzione semplice
Eccellenza tecnica
Semplicità
-
Prodotti standard
- Affidabilità, solidità e manutenzione ridotta
Eccellenza tecnica
Semplicità
-
Prodotti di fascia alta
- Funzionalità e convenienza elevate
Eccellenza tecnica
Semplicità
-
Prodotti speciali
- Progettati per applicazioni complesse
Eccellenza tecnica
Semplicità
Variabile
Selezioni FLEX | Eccellenza tecnica | Semplicità |
---|---|---|
Selezione Fundamental Soddisfa le tue esigenze di misurazione di base |
Eccellenza tecnica
|
Semplicità
|
Selezione Lean Gestisci agevolmente i tuoi processi core |
Eccellenza tecnica
|
Semplicità
|
Selezione Extended Ottimizza i tuoi processi con tecnologie innovative |
Eccellenza tecnica
|
Semplicità
|
Selezione Xpert Controlla le tue applicazioni più impegnative |
Eccellenza tecnica
|
Semplicità
Variabile |
-
Sintesi delle specifiche
-
Precisione
Classe AA secondo IEC 60751
Classe A secondo IEC 60751
Classe B secondo IEC 60751
Classe speciale o standard secondo ASTM E230
Classe 1 o 2 secondo IEC 60584-2 -
Miglior tempo di risposta
Tempo di risposta più veloce con pozzetto t90 a partire da meno di 10 s
Dipende dalla configurazione -
Max pressione di processo a 20°C
A seconda della configurazione fino a 100 bar
-
Range di misura / operatività
PT100 TF StrongSens:
-50 °C ...500 °C
(-58 °F ...932 °F)
PT100 QuickSensTF:
-50 °C …200 °C
(-58 °F …392 °F)
PT100 WW:
-200 °C ...600 °C
(-328 °F ...1.112 °F)
PT100 TF:
-50 °C ...400 °C
(-58 °F ...752 °F)
Termoelemento:
Tipo K fino a 1.100 °C (2.012 °F)
Tipo J fino a 800 °C (1.472 °F)
Tipo N fino a 1.100 °C (2.012 °F) -
Lunghezza su richiesta (mm)
fino a 4.500,0 mm (177''')
-
Selezione rapida
Configurazione individuale
-
Vantaggi
Seconda barriera di processo con indicazione di guasto che offre preziose informazioni sullo stato generale
Inserti iTHERM: produzione automatizzata esclusiva mondiale. Qualità dei prodotti completamente tracciabile e costantemente elevata per valori di...
-
Campo applicativo
Campo di applicazione universale
Campo di misura: -200...+1100 °C (-328...+2012 °F)
Campo di pressione fino a 100 bar (1450 psi)
Grado di protezione: fino a IP68
Elementi del sensore resistenti alle vibrazioni fino a 60 g
Migliore facilità di manutenzione (...
Documenti / Manuali / Software
-
iTHERM TM131
Informazioni tecniche
Termometro altamente modulare, robusto e all'avanguardia, per una vasta
gamma di applicazioni industrialiInformazioni tecniche (TI) -
Termometri modulari
Istruzioni di funzionamento
Termometri modulari universali con inserto RTD o TC per applicazioni
industrialiManuali operativi (BA) -
iTHERM TM111, TM131 Control drawing CSA IS, NI, DIP
Thermometer
Installation Notes for hazardous locations
Intrinsically safe, Nonincendive, Dust ignition proofIstruzioni per la sicurezza in aree Ex (XA) -
iTHERM TM111, iTHERM TM131
ATEX: II 1/2G Ex db IIC, II 2G Ex db IIC, II 1/2D Ex ta/tb IIIC, II 2D
Ex tb IIIC
IECEx: Ex db IIC Ga/Gb, Ex db IIC Gb, Ex ta/tb IIIC Da/Db, Ex tb IIIC Db
Safety Instructions
Documentation for hazardous areas
Istruzioni per la sicurezza in aree Ex (XA) -
TRxx, TCxx, TS211, iTHERM TS111, TM211, TPx100, TSx310, TM1x1, TM411,
TM412
Thermometers and inserts
Ex nA IIC T6...T1 GcIstruzioni per la sicurezza in aree Ex (XA) -
TM111, TM131: cCSAus XP DIP NI
TM111, TM131: cCSAus XP DIP NI
Istruzioni per la sicurezza in aree Ex (XA) -
iTHERM TM111, TM131
Ex d IIC T1...T6 Gb、Ex tD A20/A21 IP66/68 T
Istruzioni per la sicurezza in aree Ex (XA) -
iTHERM TM111, iTHERM TM131
ATEX: II 1/2G Ex ia IIC, II 1/2D Ex ia IIIC
IECEx: Ex ia IIC Ga/Gb, Ex ia IIIC Da/Db
Safety Instructions
Documentation for hazardous areas
Istruzioni per la sicurezza in aree Ex (XA) -
TM111, TM131, TS111, TS211
Thermometers and inserts
Ex ia IIC T6 Ga/GbIstruzioni per la sicurezza in aree Ex (XA) -
RTD/TC thermometers
ATEX II 3G, II 3D
Safety Instructions
Safety instructions for electrical apparatus certified for use in
explosion-hazardous areas.Istruzioni per la sicurezza in aree Ex (XA) -
iTHERM ModuLine TM131
Functional Safety Manual
Special Documentation
Forward-looking, highly modular and robust RTD or TC thermometer for a
variety of industrial applicationsDocumentazione speciale (SD) -
The fully modular iTHERM ModuLine TM131
temperature assemblies with dual seal technology
Including: fast responding thermowells,
iTHERM QuickSens, iTHERM StrongSens
The fully modular iTHERM ModuLine TM131
temperature assemblies with dual seal technology
Including: fast responding thermowells,
iTHERM QuickSens, iTHERM StrongSensImmagine03/20Inglese -
Process RTD General purpose
Codice del prodotto: TM131-
Numero Dichiarazione: HE_01243_01.20
Specifiche del produttore: RoHSManufacturer DeclarationCinese -
Process RTD General purpose
Codice del prodotto: TM111-, TM131-
Numero Dichiarazione: EC_00735_01.19EU DeclarationTedesco , Inglese , fr -
Process TC Heavy duty, Process TC General purpose, Process TC direct in contact, Process TC Direct contact, Process RTD Hygienic, Process RTD Heavy duty, Process RTD General purpose, Process RTD Direct contact, ACCESSORIES: T_INSERTS, ACCESSORIES: TC INSERT, ACCESSORIES: RTD INSERT
Codice del prodotto: TR11-, TR12-, TR13-, TR15-, TR24-, TR25-, TR45-, TR47-, TR61-, TR62-, TR63-, TR65-, TR66-, TR88-, TS111-, TSC310-, TST310-, TR10-, TC10-, TC12-, TC13-, TC15-, TC61-, TC62-, TC63-, TC65-, TC66-, TC88-, TEC420-, TM111-, TM131-, TM411-, TM412-, TPC100-, TPR100-
Numero Dichiarazione: EC_00169_02.16EU DeclarationTedesco , Inglese , fr -
Process RTD General purpose
Codice del prodotto: TM111-, TM131-
Numero Dichiarazione: EC_00740_01.19EU DeclarationTedesco , Inglese , fr -
Process TC Heavy duty, Process TC General purpose, Process TC Direct contact, Process RTD Hygienic, Process RTD Heavy duty, Process RTD General purpose, Process RTD Direct contact, Low cost RTD General purpose
Codice del prodotto: TM412-, TR10-, TR11-, TR12-, TR13-, TR15-, TR24-, TR25-, TR44-, TR45-, TR46-, TR47-, TR48-, TR61-, TR62-, TR63-, TR65-, TR66-, TR88-, TST40N-, TST41N-, TST434-, TM411-, TAF11-, TAF12D-, TAF12S-, TAF12T-, TAF16-, TC10-, TC12-, TC13-, TC15-, TC61-, TC62-, TC63-, TC65-, TC66-, TC88-, TEC420-, TM101-, TM111-, TM121-, TM131-, TM401-, TM402-
Numero Dichiarazione: EC_00136_02.16EU DeclarationTedesco , Inglese -
Process RTD General purpose, Process RTD Hygienic
Codice del prodotto: TM111-, TM131-, TM411-, TM412-
Regione: Canada, USA
Ente approvante: CSA
Categoria: I/2/A,B,C,D, I/1/A,B,C,D T6...T4, II,III/1/E,F,G, I/zone 1, I/zone 0
Protezione: Ex ia IIC T6...T4 Ga, AEx ia IIC T6...T4 Ga, AEx/Ex [AEx/Ex ia] IIC T6...T4 GbExplosion ProtectionInglese -
Process RTD General purpose
Codice del prodotto: TM111-, TM131-
Regione: Europe (ATEX)
Ente approvante: DEKRA
Categoria: II 2 D, II 2 G, II 1/2 D, II 1/2 G
Protezione: Ex tb IIIC Txxx°C Db, Ex ta/tb IIIC Txxx°C Da/Db, Ex db IIC T6...T1 Ga/Gb, Ex db IIC T6...T1 GbExplosion ProtectionInglese -
ACCESSORIES: T_INSERTS, Process RTD General purpose
Codice del prodotto: TM111-, TM131-, TS111-, TS211-
Regione: Europe (ATEX)
Ente approvante: Bureau Veritas
Categoria: II 1/2 D, II 1/2 G, II 1 G
Protezione: Ex ia IIC T6...T1 Ga, Ex ia IIC T6...T1 Ga/Gb, Ex ia IIIC Txxx°C Da/DbExplosion ProtectionTedesco , Inglese -
ACCESSORIES: RTD INSERT, ACCESSORIES: TC INSERT, Process RTD Explosion proof, Process RTD General purpose, Process TC Explosion proof
Codice del prodotto: T13-, T14-, T15-, T53-, T54-, T55-, TM111-, TM131-, TU211-, TU221-
Regione: USA, Canada
Ente approvante: CSA
Categoria: II,III/1/E,F,G/TXXX°C, I/1/1/T6...T1, I/1/A,B,C,D/T6...T1, I/2/A,B,C,D/T6...T1
Protezione: XP, NI, DIPExplosion ProtectionInglese -
Process RTD General purpose
Codice del prodotto: TM131-
Regione: South Korea
Ente approvante: KTL
Protezione: Ex ta/tb IIIC Txxx°C Da/DbExplosion Protection -
ACCESSORIES: RTD INSERT, ACCESSORIES: TC INSERT, ACCESSORIES: T_INSERTS, Process RTD Direct contact, Process RTD General purpose, Process RTD Heavy duty, Process RTD Hygienic, Process TC Direct contact, Process TC direct in contact
Codice del prodotto: TR11-, TR12-, TR13-, TR15-, TR24-, TR61-, TR62-, TR63-, TR65-, TR66-, TR88-, TS111-, TS211-, TSC310-, TST310-, TR10-, TC10-, TC12-, TC13-, TC15-, TC61-, TC62-, TC63-, TC65-, TC66-, TC88-, TM111-, TM131-, TM411-, TPC100-, TPR100-
Regione: China
Ente approvante: NEPSI
Protezione: Ex nA IIC T6...T1 GcExplosion ProtectionInglese -
ACCESSORIES: T_INSERTS, Process RTD General purpose
Codice del prodotto: TM111-, TM131-, TS111-, TS211-
Regione: China
Ente approvante: NEPSI
Protezione: Ex ia IIC T6...T1 Ga/GbExplosion ProtectionCinese -
Process RTD General purpose
Codice del prodotto: TM111-, TM131-
Regione: China
Ente approvante: NEPSI
Protezione: Ex d IIC T6...T1 Ga/Gb, Ex tD A20/A21 IP6XExplosion ProtectionCinese -
Process RTD General purpose
Codice del prodotto: TM131-
Regione: South Korea
Ente approvante: KTL
Protezione: Ex db IIC T6...T1 Ga/GbExplosion Protection -
Process RTD General purpose
Codice del prodotto: TM111-, TM131-
Regione: International (IECEx)
Ente approvante: DEKRA
Protezione: Ex tb IIIC Txxx°C Db, Ex ta/tb IIC Txxx°C Da/Db, Ex db IIC T6...T1 Ga/Gb, Ex db IIC T6...T1 GbExplosion ProtectionInglese -
ACCESSORIES: T_INSERTS, Process RTD General purpose
Codice del prodotto: TM111-, TM131-, TS111-, TS211-
Regione: International (IECEx)
Ente approvante: Bureau Veritas
Protezione: Ex ia IIC T6...T1 Ga, Ex ia IIC T6...T1 Ga/Gb, Ex ia IIIC Txxx°C Da/DbExplosion ProtectionInglese -
ACCESSORIES: PIPE THERMOWELL, Process RTD General purpose
Codice del prodotto: TM131-, TT131-
Regione: Canada (CRN)
Ente approvante: CRNPressure EquipmentInglese -
ACCESSORIES: RTD INSERT, ACCESSORIES: TC INSERT, ACCESSORIES: T_INSERTS, head transmitters, Process RTD General purpose, Process RTD Heavy duty
Codice del prodotto: TS211-, TS111-, TR88-, TR66-, TR62-, TPR300-, TPR100-, TMT82-, TMT182-, TM131-
Ente approvante: NMI
Numero di approvazione: NMI TC8683MetrologyInglese -
Process RTD General purpose, Process RTD Heavy duty
Codice del prodotto: TM131-, TR63-, TR66-
Regione: International
Ente approvante: DNVGLMarineInglese -
Process RTD Explosion proof, Process RTD General purpose, Process RTD Hygienic, Process TC Explosion proof
Codice del prodotto: T13-, T14-, T15-, T53-, T54-, T55-, TM111-, TM131-, TM411-, TM412-
Regione: USA, Canada
Ente approvante: CSAOrdinary Location Product SafetyInglese -
Process RTD General purpose, Process RTD Hygienic
Codice del prodotto: TM111-, TM131-, TM411-, TM412-
Regione: Canada, USA
Ente approvante: CSAOrdinary Location Product SafetyInglese
Accessori / Parti di ricambio
-
-
Order code 71182607
Kit ricambio guarnizioni "Quickneck"
10x O-ring 20x2.5 5x O-ring 25x3
-
Order code 71367427
-
Order code 71182599
Kit ricambi 5x O-Ring 78x3 VMQ 75°
-
Order code 71182602
Kit ricambi guarnizioni TA30A/TA30D
5x O-ring 3.69x1.78 5x 0-ring 74.7x2.75
-
Order code 71182606
Kit ricambi guarnizioni TA30R
5x O-ring 57x2.5 5x O-ring 64.3x1.8 blau
-
Order code 71369768
O-Ring 71X3 silicone 70° Shore A
-
-
-
Nr C Order code 71111510
Blocco termin.DIN B(42mm)2 morsetti 5pz
-
-
-
Order code 71367406
-
Order code 71367414
-
Order code 71367420
-
Order code 71367424
-
Order code 71367425
-
Order code 71438347
Kit ricambi anello di rame M18 (10 p)
Unità di imballaggio: 10 pezzi
-
Order code 71111513
Blocco termin.DIN B(42mm)3 morsetti 5pz
-
Order code 71111514
Blocco termin.DIN B(42mm)4 morsetti 5 Pz
-
Order code 71111515
Blocco termin.DIN B(42mm)6 morsetti 5pz
-
Order code 71249291
Pasta termo conduttiva FDA 30g
-
Order code 71312729
Pasta termoconduttiva HSC 340, 100g
-
Order code TK40-
Compression Fitting TK40
Weld-in compression fitting with hygienic design. For applications in the food/ beverages and pharmaceutical industries.
-
Order code XPT0001-
-
Order code 71044061
Kit di fissaggio TMT8x/7x (europeo)
2x screws, 2x springs, 2x spring rings, 1x sealing CDI-connector
-
Order code 71090687
Connettore Fieldbus PA M20;M12;150mm
-
Order code XPT0004-
-
Order code TA20AB-
Terminal Head TA20AB
Terminal head for temperature assemblies, simple execution, lid fixed by screws. Inner geometry acc. to DIN EN 50446.
-
Order code TA30A-
Terminal Head TA30A
Retainer for terminal block or head transmitter + optional display. Cover: low, hinged, optional window. Material: aluminium. Coating: polyester powder-coating. Colour: body blue, cover grey. Ambient temp.: -50...150 oC (housing). Protection: IP66/68, NEMA 4X (housing).
-
Order code TA30D-
Terminal Head TA30D
Retainer for 2 head transmitters or terminal blocks. Cover: high, hinged. Material: aluminium. Coating: polyester powder-coating. Colour: body blue, cover grey. Ambient temp.: -50...150 oC (housing). Protection: IP66/68, NEMA 4X (housing).
-
Order code TA30EB-
Terminal Head TA30EB
Retainer for terminal block or head transmitter + optional display. Cover: low, threaded, optional window. Material: Aluminium. Coating: Polyester powder-coating. Colour: body blue, cover grey. Ambient temp.: -50...+150oC (housing). Protection: IP66/68, NEMA 4X (housing).
-
Order code TA30H-
Terminal Head TA30H
Retainer for terminal block or head transmitter + optional display. Design: explosion proof. Cover: screwed, optional window. Material: aluminium. Coating: polyester powder-coating. Colour: body blue, cover grey. Ambient temp.: -50 150 oC (housing). Protection: IP66/68, NEMA 4X (housing). Protection Ex d/XP: IP66/67 (housing).
-
Order code TA30P-
Terminal Head TA30P
Retainer for 2 head transmitters or terminal blocks. Cover: high, hinged. Material: Polyamid PA12 antistatic. Colour: black. Ambient temp.: -40...120oC (housing). Protection: IP65 (housing).
-
Order code TA30R-
Terminal Head TA30R
Retainer for terminal block or head transmitter + optional display. Cover: screwed, optional window. Material: Stainless Steel 316L. Colour: Steel (no coating). Ambient Temp.: -50...85/130 oC (display/standard). Protection: IP66/68, NEMA4X; IP69K (housing). :: easy wiring through best accessibility. :: compact desing and low weight.
-
Order code 71158816
O-Ring 88x3 EPDM 70 PTFE-rivestito
-
Order code 51004653
-
Order code 51004654
-
Order code 51004915
Adapter M20x1.5 exter./M24x1.5 intern.VA
-
Order code 51004949
PASSACAVO M20x1.5
-
Order code 51006845
Cavo NPT1/2, D4,5-8.5 IP68
-
Order code XPT0002-D1
Connettore per termometro spare part
-
Order code XPT0002-D2
Connettore per termometro spare part
-
Order code XPT0002-D3
Connettore per termometro spare part
-
Order code XPT0002-DA
Connettore per termometro spare part
-
Order code XPT0002-DB
Connettore per termometro spare part
-
Order code XPT0002-DC
Connettore per termometro spare part
-
Order code XPT0002-DD
Connettore per termometro spare part
-
Order code TE131-
Extension Neck TE131
Separate neck for modular thermometers. Metric version for applications in chemical, oil&gas as well as the power industriy.
-
Order code TT131-
iTHERM ModuLine TT131
Thermowell for industrial thermometers. Metric version for applications in the chemical, oil&gas as well as the power industry.
-
Order code READWIN-
Readwin 2000 Operation + Read. software
-
Order code TXU10-
Configuration Kit TXU10
for PC-programmable devices. set-up programme+interface cable for PC with USB-Port.
-
Order code TMT180-
iTEMP TMT180, Head Transmitter Pt100
Temperature transmitter,PC-programable. Application: RTD. 2-wire 4-20mA. Fault reaction: NAMUR NE 43. Mounting: head form B, DIN EN50446. UL listed.
-
Order code TMT71-
iTEMP TMT71, Transmitter 4-20mA
2-wire temperature transmitter. Single universal sensor input. Galvanic isolation 2kV (input/output). Application: RTD, TC, Ohm and mV. Factory setup w/o additional specification:Pt100, 4-wire, 0...+100oC.
-
Order code TMT72-
iTEMP TMT72, Transmitter HART
2-wire temperature transmitter. Single universal sensor input. Galvanic isolation 2kV (input/output). Application: RTD, TC, Ohm and mV. Factory setup w/o additional specification:Pt100, 4-wire, 0...+100oC.
-
Order code TMT82-
iTEMP TMT82, Transmitter HART
2-wire temperature transmitter. Dual universal sensor input. Galvanic isolation 2kV (input/output). Application: RTD, TC, Ohm and mV. ::Highly reliable due to drift detection and sensor back up. ::Optional also for safety critical applications by means of SIL 2/3 acc. to IEC61508.
-
Order code TMT84-
iTEMP TMT84, Transmitter PA
Dual sensor input. Advanced diagnostics:sensor monitoring. PROFIBUS PA Profile 3.02. Galvanic isolation 2kV. Application: RTD, TC, Ohm, mV. Current consumption: 11 mA. Mounting: head form B, DIN EN50446. Factory setup: CH1: Pt100, 3-wire, oC. CH2: inactive. Differing configuration optional selectable.
-
Order code TMT85-
iTEMP TMT85, Transmitter FF
Dual sensor input. Advanced diagnostics: sensor monitoring. FOUNDATION Fieldbus protocol Galvanic isolation 2 kV. Application: RTC, TC, Ohm, mV. Current consumption: 11 mA. Mounting: head form B, DIN EN50446. Factory setup: CH1: Pt100, 3-wire, oC. CH2: inactive. Differing configuration optional selectable.
-
-
-
Nr B Order code TID10-
Display Unit Head Transmitter
to plug on. Dot-Matrix measured value display. 12 DIP-switches buttom side. Settings: FF: Simulation, Write Lock. PA: Bus address, Write Lock. Compatible: TMT85, TMT84, TMT82.
-
-
-
Order code TMT162-
iTEMP TMT162, Field Transmitter
Temperature transmitter. Application: RTD, TC, Ohm, mV. HART, PROFIBUS PA Profile 3.02 or FOUNDATION Fieldbus separately available. Galvanic isolation 2 kV (sensor input/output). NEMA Type 4X Encl., IP67. Dual compartment. DNV GL marine approval (only HART). UL listed.
-
Order code DIENST-
Service
-
Order code TS111-
Insert iTHERM TS111
Replaceable. Metric version according DIN43735.
-
Order code TS211-
Insert iTHERM TS211
-
Order code TM131-

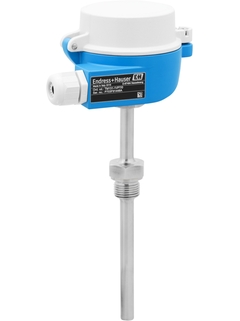

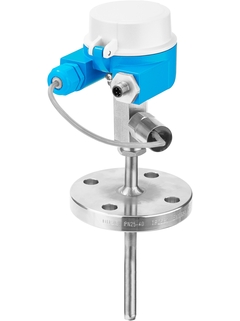

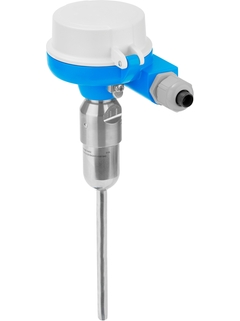

iTHERM ModuLine TM131
Modular thermometer with resistance sensor or thermocouple. Metrical version with exchangeable insert for demanding applications in the chemical, oil/gas and power industry. With thermowell or to be installed into thermowell. Measuring range: -200...+1.100oC/ -328...2.012oF (depending on the configuration). ::Fastest response times for optimal process control through iTHERM QuickSens insert and fast response thermowell options. ::Maximum robustness for highest process safety through iTHERM StrongSens insert. ::Cost savings with recalibrations through iTHERM QuickNeck coupling ::Material selection for a wide range of applications.
-
Order code TA20B-
Terminal Head TA20B
Connecting head to mount a measuring insert with head transmitter or a connection socket. To be mounted on an armature or protective sleeve. Material:Polyamid black. Ambient temperature: max. +80 oC. Protection: IP65.
-
-
Predecessore
