Micropilot FMR52

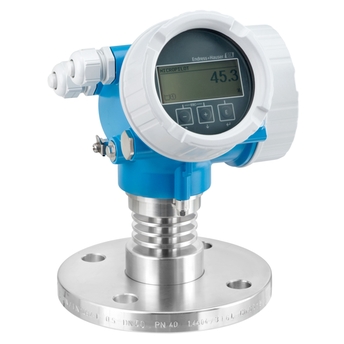

Micropilot FMR52 custodia in alluminio con flangia ©Endress+Hauser
Micropilot FMR52 custodia in alluminio con flangia ©Endress+Hauser
Micropilot FMR52 custodia in plastica con Tri-Clamp ©Endress+Hauser

Principio di misura Tempo di volo

Filmato sulla messa in servizio del radar a spazio libero Micropilot FMR5x e del Levelflex FMP5x a microimpulsi guidati

Esclusiva soluzione di gestione dei dati HistoROM per misure di livello sicure

Algoritmi che si adattano continuamente garantendo misure di livello sicure grazie alla funzione Multi-Echo Tracking

Micropilot con Dinamica avanzata per segnali di misura più affidabili anche in caso di turbolenze

Micropilot FMR5x con funzioni di Diagnostica avanzata consente il rilevamento della schiuma

Micropilot FMR52 custodia in alluminio con flangia ©Endress+Hauser

Per la misura di livello in liquidi aggressivi o applicazioni con requisiti igienici

Per applicazioni in liquidi aggressivi Micropilot FMR52 offre straordinari vantaggi grazie alla sua antenna a cono completamente incapsulata in PTFE e flush mounted. FMR52 è adatto ad applicazioni igieniche tipiche dell'industria alimentare e farmaceutica - Dispone di approvazioni EHEDG, ASME BPE, USP Classe VI, 3-A. Micropilot è utilizzato per la misura di livello continua, non a contatto, di liquidi, paste e fanghi. Variazioni del prodotto, di temperatura, presenza di gas o vapore non influenzano la misura.

  • Vantaggi

    • Hardware e software sviluppati per la misura fino a SIL3 secondo IEC 61508 (in ridondanza omogenea)

    • Misura non a contatto, affidabile anche in condizioni di variabilità del prodotto e delle condizioni di processo

    • Soluzione di gestione dei dati HistoROM...

  • Campo applicativo

    Antenna a cono flush mounted completamente rivestita in PTFE.

    • Connessioni al processo: flush mounted con flangia rivestita, connessioni per requisiti igienici (Tri-Clamp, 11851)

    • Temperatura: -196...+200°C (-40...+392°F)

    • Pressione: -1...+ 25 bar

    • Campo di...

Caratteristiche e specifiche

Indietro

Details

  • Principio di misura

    Livello radar

  • Caratteristica / Applicazione

    Dispositivo Premium per misura di livello continua senza contatto, per fluidi aggressivi e requisiti di igiene severi (ASME BPE, USP Classe VI);

    antenna a cono flush mounted, completamente in PTFE

  • Specialità

    SIL 2 secondo IEC 61508,

    Bluetooth® messa in servizio,

    App per funzionamento e manutenzione App SmartBlue,

    Sicurezza e affidabilità con Multi-Echo Tracking,

    HistoROM

  • Alimentazione / Comunicazione

    A 2 fili (HART/PROFIBUS PA/Fieldbus Foundation)

    A 4 fili (HART)

  • Frequenza

    Banda K (~ 26 GHz )

  • Precisione

    ±2 mm (0.08 in)

  • Temperatura ambiente

    -50...+80 °C

    (-58...+176 °F)

  • Temperatura di processo

    -196...+200 °C

    (-321...+392 °F)

  • Pressione assoluta di processo / limite massimo di sovrapressione

    Vuoto...25 bar

    (Vuoto...363 psi)

  • Parti bagnate

    PTFE

  • Attacco al processo

    Flangia:

    DN50 … 150

    ASME 2 … 6"

    JIS 10K

  • Connessione igienica al processo

    Tri-Clamp ISO2852

    DIN11851

  • Dimensione del serbatoio / Applicazione

  • Distanza massima di misura

    Standard: 40 m (131 ft)
    Con funzione di dinamica avanzata: 60 m (197 ft)

  • https://portal.endress.com/picpool/sft/prodcont/technicalinfo/Radar_Mediengruppe_en.jpg https://portal.endress.com/picpool/sft/prodcont/technicalinfo/Radar_not_selected_all_storage tank_storage tank horizontal_FMR52.jpg
  • Comunicazione

    4...20 mA HART

    PROFIBUS PA

    FOUNDATION Fieldbus

    Bluetooth® wireless technology

  • Certificati / Approvazioni

    ATEX, FM, CSA, CSA C/US, IEC Ex, INMETRO, NEPSI, KC

  • Approvazioni di sicurezza

    Prevenzione di troppo pieno WHG

    SIL

  • Approvazioni costruzione

    EN 10204-3.1

    ASME B31.3

    AD2000

  • Approvazioni igieniche

    3A, EHEDG

    CoC ASME-BPE

  • Certificazione navale

    GL/ ABS/ LR/ BV/ DNV

  • Opzioni

    Display,

    Parametrazione personalizzata,

    Funzionamento remoto via SmartBlue App e Bluetooth®,

    Alimentazione a tenuta di gas,

    PWIS free

  • Limiti applicativi

    Il campo di misura massimo dipende dalla forma del serbatoio e/o dall'applicazione


    Ammoniaca anidra:

    FMR54 in tubo di calma

    Elevata formazione di depositi:

    FMR54 con aria di pulizia

    Misura fiscale:

    FMR5xx

Documenti / Manuali / Software

Accessori / Parti di ricambio

Nr
Order code
Specification
  • 19
    • Nr 19 Order code 71115174

      Filtro custodia 316L, GT18, 1 set

      Consiste in: 2x spina filtro metallo 316L. 1x filtro di compensazione della pressione. Per: FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57, FMR62/67. Per: Promass 200/TB2, Prosonic Flow 200, Prowirl 200.

    • Nr 19 Order code 71115175

      Custodia filtro ottone/Ni GT19/20, 1 set

      Composto da: 2x tappo del filtro in ottone nichelato, filtro di compensazione della pressione. Per: FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57. Uso: Promass 200/TB2, Prosonic Flow 200, Promag 200, Prowirl 200.

  • 17
    • Nr 17 Order code 71115176

      Set housing securing clamps

      Per custodia GT18/GT19/GT20 FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57. Per Promass 200/TB2, Prosonic Flow 200, Promag 200.

  • 20
    • Nr 20 Order code 71110281

      Coperchio GT18 316L, HNBR

      Materiale: 316L. O-ring, EPDM, PTFE rivestito. Per: FMP51/52/54/55/56/57, FMR51/52/53/54/57, FMR62/67. Per: Promass 200/TB2, Prosonic Flow 200, Prowirl 200.

    • Nr 20 Order code 71110282

      Coper. GT18 316L, sight glass, HNBR

      Materiale: 316L. O-ring NBR, PTFE rivestito. Per: FMP51/52/54/55/56/57, FMR51/52/53/54/57, FMR62/67, FHX50. Per: Promass 200/TB2, Prosonic Flow 200, Prowirl 200.

    • Nr 20 Order code 71110292

      Coperchio GT19 PBT-FR, vetro, guarniz.

      Materiale: plastica PBT-FR vetro: PC. O-ring EPDM, rivestimento PTFE. Per: FHX50, FMP50/FMP51/FMP52/ FMP53/FMP54/FMP55/FMP56/FMP57, FMR50/ FMR51/FMR52/FMR53/FMR54/FMR56/FMR57, FMR60/FMR62/FMR67.

    • Nr 20 Order code 71110293

      Coperchio GT19 PBT, guarnizione

      Materiale: plastica PBT, metallizzata. O-ring EPDM, rivestito PTFE. Per: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57, FMR60/FMR62/FMR67.

    • Nr 20 Order code 71110297

      Cover GT20 Alu, sight glass, gasket

      Material: Alluminio, rivestito. O-ring EPDM, PTFE rivestito. Per: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57, FMR60/FMR62/FMR67. Per: Promass 200/TB2, Prosonic Flow 200, Promag 200, Prowirl 200.

    • Nr 20 Order code 71110299

      Cover GT20 Alu, gasket

      Materiale: Alluminio, rivestito. O-ring EPDM, rivestito in PTFE. Per FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57, FMR60/FMR62/FMR67. Per: Promass 200/TB2, Prosonic Flow 200, Promag 200, Prowirl 200.

    • Nr 20 Order code 71383631

      Cover GT18 316L, FVMQ

      Material: 316L. O-Ring FVMQ. Usage: FMP51/FMP54, FMR51/FMR52/FMR54. Usage: Prowirl 200.

    • Nr 20 Order code 71383666

      Cover GT18 316L, sight glass, FVMQ

      Material: 316L. O-Ring FVMQ. Usage: FMP51/FMP54, FMR51/FMR52/FMR54. Usage: Prowirl 200.

    • Nr 20 Order code 71383674

      Cover GT20 Alu, FVMQ

      Material: Alu. O-Ring FVMQ. Usage: FMP51/FMP54, FMR51/FMR52/FMR54. Usage: Prowirl 200.

    • Nr 20 Order code 71383675

      Cover GT20 Alu, sight glass, FVMQ

      Material: Alu. O-Ring FVMQ. Usage: FMP51/FMP54, FMR51/FMR52/FMR54. Usage: Prowirl 200.

  • 25
    • Nr 25 Order code 71110284

      Cover GT18 316L, terminal Ex d, HNBR

      Material: 316L. O-ring EPDM /PTFE coated. Usage: terminal compartment Ex d/XP, FMP51/FMP52/FMP54/FMP55/FMP56/FMP57, FMR51/FMR52/FMR53/FMR54/FMR57, FMR62/FMR67. Usage: Promass 200/TB2, Prosonic Flow 200, Prowirl 200.

    • Nr 25 Order code 71110291

      Coperchio GT18 316L, terminale Ex, guarn

      Materiale: 316L. O-ring EPDM, PTFE rivestito. Per: terminal compartment, non idoneo per Ex d/XP, FMP51/FMP52/FMP54/FMP55/FMP56/FMP57, FMR51/FMR52/FMR53/FMR54/FMR57, FMR62/FMR67.. Per: Promass 200/TB2, Prosonic Flow 200, Prowirl 200.

    • Nr 25 Order code 71110295

      Cover GT19 PBT, Terminal Ex, EPDM

      Materiale: plastica PBT, metallizzato. Utilizzo: vano terminale, non per Ex d/XP, FMP50/FMP51/FMP52/FMP53/FMP54/FMP55/ FMP56/FMP57, FMR50/FMR51/FMR52/FMR53/ FMR54/FMR56/FMR57, FMR60/FMR62/FMR67.

    • Nr 25 Order code 71110301

      Cover GT20 Alu, Terminal Ex, HNBR

      Material: Rivestimento in alluminio. O-ring rivestito EPDM, PTFE. Per: Terminal compartment, non per Ex d/XP, Per FMP50/FMP51/FMP52/FMP53/FMP54/FMP55/ FMP56/FMP57, FMR50/FMR51/FMR52/FMR53/ FMR54/FMR56/FMR57, FMR60/FMR62/FMR67. Usage: Promass 200/TB2, Prosonic Flow 200, Promag 200, Prowirl 200.

    • Nr 25 Order code 71110302

      Coper. GT20 Alu,Terminale Ex d, guarniz.

      Materiale: alluminio, rivestito. O-ring EPDM, PTFE rivestito. Per: blocco terminale Ex d/XP, FMP50/FMP51/FMP52/FMP53/FMP54/FMP55/ FMP56/FMP57, FMR50/FMR51/FMR52/FMR53/ FMR54/FMR56/FMR57, FMR60/FMR62/FMR67. Usage: Promass 200/TB2, Prosonic Flow 200, Promag 200, Prowirl 200.

    • Nr 25 Order code 71185516

      Cover GT18 316L, Terminal, OVP, HNBR

      Material: 316L. O-ring EPDM, PTFE coated. Usage: terminal compartment, for overvoltage protection, not for Ex d/XP, FMP50/FMP51/FMP52/FMP53/FMP54/FMP55/ FMP56/FMP57, FMR50/FMR51/FMR52/FMR53/ FMP54/FMP56/FMP57, FMR62/FMR67. Usage: Promass 200, Prosonic Flow 200, Prowirl 200.

    • Nr 25 Order code 71185517

      Cover GT20 Alu, Terminal, OVP, HNBR

      Material: aluminium. O-ring EPDM, PTFE coated. Usage: terminal compartment, for overvoltage protection, not for Ex d/XP, FMP50/FMP51/FMP52/FMP53/FMP54/FMP55/ FMP56/FMP57, FMR50/FMR51/FMR52/FMR53/ FMR54/FMR56/FMR57, FMR60/FMR62/FMR67. Usage: Promass 200, Prosonic Flow 200, Promag 200, Prowirl 200.

    • Nr 25 Order code 71185518

      Cover GT19 PBT, Terminal, OVP, EPDM

      Material: plastic PBT, metallizied. O-ring EPDM, PTFE coated. Usage: terminal compartment, for overvoltage protection, not for Ex d/XP. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57, FMR60/FMR62/FMR67.

    • Nr 25 Order code 71383668

      Cover GT18 316L, terminal Ex, FVMQ

      Material: 316L. O-Ring FVMQ. Usage: FMP51/FMP54, FMR51/FMR52/FMR54. Usage: Prowirl 200.

    • Nr 25 Order code 71383670

      Cover GT18 316L, terminal Ex d, FVMQ

      Material: 316L. O-Ring FVMQ. Usage: FMP51/FMP54, FMR51/FMR52/FMR54. Usage: Prowirl 200.

    • Nr 25 Order code 71383671

      Cover GT18 316L, Terminal, OVP, FVMQ

      Material: 316L. O-Ring FVMQ. Usage: FMP51/FMP54, FMR51/FMR52/FMR54. Usage: Prowirl 200.

    • Nr 25 Order code 71383679

      Cover GT20 Alu, Terminal Ex, FVMQ

      Material: Alu. O-Ring FVMQ. Usage: FMP51/FMP54, FMR51/FMR52/FMR54. Usage: Prowirl 200.

    • Nr 25 Order code 71383680

      Cover GT20 Alu, Terminal Ex d, FVMQ

      Material: Alu. O-Ring FVMQ. Usage: FMP51/FMP54, FMR51/FMR52/FMR54. Usage: Prowirl 200.

    • Nr 25 Order code 71383682

      Cover GT20 Alu, Terminal, OVP, FVMQ

      Material: Alu. O-Ring FVMQ. Usage: FMP51/FMP54, FMR51/FMR52/FMR54. Usage: Prowirl 200.

  • 65
    • Nr 65 Order code 71110303

      Set di tenuta custodia GT18, GT19, GT20

      Composto da: O-ring 88,5 x3, 53 EPDM / PTFE, coperchio vano elettronica. Custodia GT19 O-Ring 88.5x3.53 NBR, coperchio vano elettronica, custodia GT18, GT20. O-ring 91.67x3.53 EPDM/PTFE, coperchio vano elettronica, custodia GT19. O-Ring 91.67x3.53 NBR, coperchio vano elettronica, custodia GT18, GT20. O-ring 50.39x3.53 EPDM/PTFE, custodia/sensore. FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57, FMR60/FMR62/FMR67. Per: Promass 200/TB2 Prosonic Flow 200, Promag 200, Prowirl 200

    • Nr 65 Order code 71384797

      Sealing set GT18/20, FVMQ

      Consists of: O-Ring 88,5x3,53 FVMQ cover electronics compartment, housung GT18, GT20. O-Ring 91,67x3,53 FVMQ cover terminal compartment, housung GT18, GT20. Usage: FMP51/FMP54, FMR51/FMR52/FMR54. Usage: Prowirl 200.

  • 34
    • Nr 34 Order code 71108594

      I/O modulo 2 fili, 4-20mA, HART, Ex, V2

      Non-Ex, Ex. 1x uscita HART. Versione 2. Per: FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57.

    • Nr 34 Order code 71108599

      I/O module, 2-wire, 4-20mA,HART, PFS, Ex

      Non-Ex, Ex. 1x uscita HART, 1x PFS. PFS=switch output. Per FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57.

    • Nr 34 Order code 71164940

      I/O modulo, 2 fili, PA/FF, PFS, Ex, V2

      Non-Ex, Ex. PROFIBUS PA, FOUNDATION Fieldbus. PFS=switch output. Versione 2. Per: FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57. Per: Promass 200, Prowirl 200, Promag 200.

    • Nr 34 Order code 71187812

      I/O mod.Level,2-wr.4-20mA,HART,Ex,LP,V2

      Versione 2. Non adatto per Ex d/XP. LP=bassa tensione. 1x uscita HART. Per: FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57.

    • Nr 34 Order code 71207473

      I/O mod. Level,4-wr.DC,4-20mA,HART,Ex,V2

      Non-Ex, Ex. 10.4-48VDC. 1x current output HART. Version 2. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57, FMR60/FMR62/FMR67.

    • Nr 34 Order code 71207474

      I/O mod. Livel,2-fl.2x4-20mA,HART,Ex,V2

      Non-Ex, Ex. Uscita in corrente, 4-20mA HART + 4-20mA analogico. Versione 2. Per: FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57.

    • Nr 34 Order code 71207475

      I/O mod. Level,4-wr.AC,4-20mA,HART,Ex,V2

      Non-Ex, Ex. 90-253VAC. 1x current output HART. Version 2. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57, FMR60/FMR62/FMR67.

  • 37
    • Nr 37 Order code 71110279

      Terminal set 4-wire, I/O module

      Consists of: 2x terminal 2-pole, green. 2x terminal 2-pole, red. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57, FMR60/FMR62/FMR67.

    • Nr 37 Order code 71110280

      Terminal set 2-wire, I/O module

      Composto da: 4x terminale a 2 poli, verde. Per: FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57, FMR60/62/67. Promass 200/TB2, Prosonic Flow 200, Promag 200, Prowirl 200.

    • Order code

      Remote display FHX50 please order with separate order structure.

    • Order code 71206552

      Cable FHX50, 5m

      Connection cable, shielded. Usage: FHX50.

    • Order code 71206554

      Cavo FHX50, 10m

      Cavo di collegamento, schermato. Per: FHX50.

    • Order code 71206555

      Cavo FHX50, 20m

      Cavo di connessione. Per: FHX50.

    • Order code 71206556

      Cavo FHX50, 30m

      Cavo di collegamento, schermato. Per: FHX50.

    • Order code 71197334

      Trasmettitore elettronica FHX50

      Composto da: Elettronica, cavo. Per: FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57. Usage: Promass200, Prowirl 200, Promag 200, Prosonic Flow 200.

    • Order code 71128617

      Protez. sovratensione (OVP10), 1-Canale

      4-20mA HART. Per: FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57,60,62,67 Per: Promass 200, Prosonic Flow 200, Promag 200, Prowirl 200.

    • Order code 71128619

      Protezione sovratens. (OVP20), 2 canali

      4-20mA HART, PROFIBUS PA, FOUNDATION Fieldbus, Impulso/Frequenza/Stato Uscita. Per: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/ FMR57, FMR60/FMR62/FMR67. Per: Promass 200, Prosonic Flow 200, Promag 200, Prowirl 200.

    • Order code 71162242

      Protezione antiven. GT18/GT19/GT20, 316L

      Per: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/FMR52/FMR53/FMR54/ FMR56/FMR57, FMR60/FMR62/FMR67. Per: Promass 200/TB2, Prosonic Flow 200, Promag 200, Prowirl 200.

  • 30
  • 40
    • Nr 40 Order code XPD0024-

      Modulo display, SD02, pulsanti

      Per custodia: GT18, GT19, GT20. Per: FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57, FHX50. Promass 200/TB2, Prosonic Flow 200, t-mass 150, Promag 200, Prowirl 200. Composto da: Display SD02, cavo a spirale, cavo a nastro, copertura connettore.

    • Nr 40 Order code XPD0025-

      Modulo display, SD03, Touch Control

      Custodie: GT18, GT19, GT20. Per: FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57, FHX50. Promass 200/TB2, Prosonic Flow 200, Promag 200, Prowirl 200. Composto da: Display SD03 illuminato, cavo a nastro, coperchio connettore.

    • Order code 71377355

      Modulo Bluetooth (BT10)

      Modulo per comunicazione dati wireless. Per: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57, FMR60/FMR62/FMR67.

    • Order code XPRFID-

      Spare RFID TAG

      Consists of: RFID TAG, fixing wire, crimp sleeve.
