Micropilot FMR51

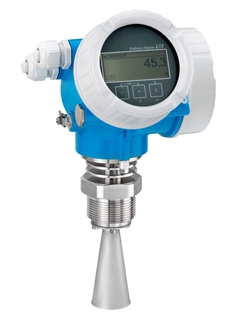

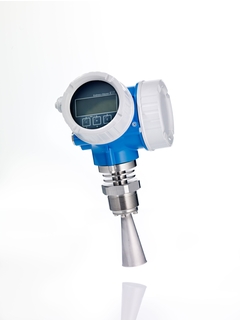

Micropilot FMR51 custodia in alluminio ©Endress+Hauser

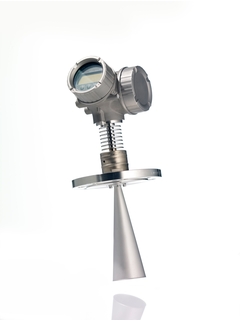

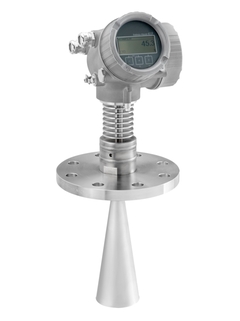

Micropilot FMR51 custodia in acciaio inox ©Endress+Hauser

Principio di misura Tempo di volo

Filmato sulla messa in servizio per il radar a spazio libero Micropilot FMR5x e Levelflex FMP5x a microimpulsi guidati

Esclusivo concetto di gestione dei dati HistoROM per misure di livello sicure

Algoritmi che si adattano continuamente, garantendo misure di livello sicure grazie a Multi-Echo Tracking

Micropilot con dinamica avanzata per segnali di misura più affidabili anche in caso di turbolenze

Micropilot FMR5x con funzioni di Diagnostica avanzata esegue il rilevamento della schiuma

Micropilot FMR51 custodia in alluminio ©Endress+Hauser
Micropilot FMR51 custodia in acciaio inox ©Endress+Hauser

Il sensore standard per misure di livello nei liquidi in condizioni estreme

Micropilot FMR51 per la misura di livello anche in condizioni di processo estreme come alta temperatura e pressione elevata nell'industria chimica e nell'oil&gas. Il radar a spazio libero FMR51 offre la massima affidabilità grazie a un design del sensore innovativo e brevettato. Micropilot è utilizzato per la misura di livello continua, non a contatto, di liquidi, paste e fanghi. Variazioni del prodotto, di temperatura, presenza di gas o vapore non influenzano la misura. Disponibile accesso remoto tramite l'app SmartBlue.

  • Vantaggi

    • Hardware e software sviluppati secondo IEC 61508, fino a SIL3 (in ridondanza omogenea)

    • Concetto unico di gestione dei dati mediante HistoROM per semplificare e velocizzare messa in servizio, manutenzione e diagnostica

    • Elevata affidabilità anche in...

  • Campo applicativo

    Antenna a cono per misure di livello anche in condizioni estreme.

    • Connessioni al processo: filettatura, Tri-Clamp o flangia

    • Temperatura: -196...+450°C (-321...+ 842°F)

    • Pressione: -1...+160 bar (-14.5...+2,32 psi)

    • Campo di misura massimo: 40 m (131 ft), 70 m...

Caratteristiche e specifiche

Indietro

Details

  • Principio di misura

    Livello radar

  • Caratteristica / Applicazione

    Dispositivo Premium per misura di livello continua senza contatto di liquidi, paste e fanghi, anche in condizioni di processo estreme;

    antenna a cono: 40 … 100 mm

  • Specialità

    Heartbeat Technology,

    SIL 2 secondo IEC 61508,

    Bluetooth® messa in servizio,

    App di funzionamento e manutenzione SmartBlue,

    Sicurezza e affidabilità con Multi-Echo Tracking,

    HistoROM,

    RFDI TAG per una semplice identificazione

  • Alimentazione / Comunicazione

    2-fili (HART / PROFIBUS PA/ FOUNDATION Fieldbus)

    4-fili (HART)

    Bluetooth® wireless technology e App (opzionale)

  • Frequenza

    Banda K (~ 26 GHz )

  • Precisione

    ±2 mm (0.08 in)

  • Temperatura ambiente

    -50...+80 °C

    (-58...+176 °F)

  • Temperatura di processo

    XT: -196...+280 °C

    (-321...+536 °F)

    HT: -196...+450 °C

    (-321...+842 °F)

  • Pressione assoluta di processo / limite massimo di sovrapressione

    Vuoto … 160 bar

    (Vuoto … 2320 psi)

  • Parti bagnate

    316L, Alloy C, PTFE, ceramica

  • Attacco al processo

    Filettatura:

    MNPT 1 1/2, R 1 1/2

    flangia:

    DN50 … DN150,

    ASME 2 … 6",

    JIS 10K, 63K

  • Connessione igienica al processo

    Tri-Clamp ISO2852

  • Dimensione del serbatoio / Applicazione

  • Distanza massima di misura

    Standard: 40 m (131 ft)
    Con funzione di dinamica avanzata: 70 m (229 ft)

  • https://portal.endress.com/picpool/sft/prodcont/technicalinfo/Radar_Mediengruppe_en.jpg https://portal.endress.com/picpool/sft/prodcont/technicalinfo/Radar_not_selected_storage_tank__FMR51.jpg
  • Comunicazione

    4...20 mA HART

    PROFIBUS PA

    FOUNDATION Fieldbus

    Bluetooth® wireless technology

  • Certificati / Approvazioni

    ATEX, FM, CSA, CSA C/US, IEC Ex, JPN Ex, INMETRO, NEPSI, KC

  • Approvazioni di sicurezza

    Prevenzione di troppo pieno WHG

    SIL

  • Approvazioni costruzione

    EN 10204-3.1

    NACE MR0175, MR0103

    ASME B31.3

    AD2000

  • Certificazione navale

    GL/ ABS/ LR/ BV/ DNV

  • Opzioni

    Display,

    Parametrazione personalizzata,

    Funzionamento remoto via SmartBlue App e Bluetooth®,
    Alimentazione a tenuta di gas,

    Estensione dell'antenna,

    PWIS free

  • Limiti applicativi

    Il campo di misura massimo dipende dalla forma del serbatoio e/o dall'applicazione


    Ammoniaca in fase gassosa:

    FMR54 in tubo di calma

    Elevata formazione di depositi:

    FMR54 con aria di pulizia

    316L o Alloy C non resistente:

    FMR50, FMR52, FMR53

    Requisiti igienici:

    FMR52, FMR53

    Transazioni commerciali:

    FMR5xx

Documenti / Manuali / Software

Accessori / Parti di ricambio

Nr
Order code
Specification
  • 19
    • Nr 19 Order code 71115174

      Filtro custodia 316L, GT18, 1 set

      Consiste in: 2x spina filtro metallo 316L. 1x filtro di compensazione della pressione. Per: FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57, FMR62/67. Per: Promass 200/TB2, Prosonic Flow 200, Prowirl 200.

    • Nr 19 Order code 71115175

      Custodia filtro ottone/Ni GT19/20, 1 set

      Composto da: 2x tappo del filtro in ottone nichelato, filtro di compensazione della pressione. Per: FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57. Uso: Promass 200/TB2, Prosonic Flow 200, Promag 200, Prowirl 200.

  • 17
    • Nr 17 Order code 71115176

      Set housing securing clamps

      Per custodia GT18/GT19/GT20 FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57. Per Promass 200/TB2, Prosonic Flow 200, Promag 200.

  • 20
    • Nr 20 Order code 71110281

      Coperchio GT18 316L, HNBR

      Materiale: 316L. O-ring, EPDM, PTFE rivestito. Per: FMP51/52/54/55/56/57, FMR51/52/53/54/57, FMR62/67. Per: Promass 200/TB2, Prosonic Flow 200, Prowirl 200.

    • Nr 20 Order code 71110282

      Coper. GT18 316L, sight glass, HNBR

      Materiale: 316L. O-ring NBR, PTFE rivestito. Per: FMP51/52/54/55/56/57, FMR51/52/53/54/57, FMR62/67, FHX50. Per: Promass 200/TB2, Prosonic Flow 200, Prowirl 200.

    • Nr 20 Order code 71110292

      Coperchio GT19 PBT-FR, vetro, guarniz.

      Materiale: plastica PBT-FR vetro: PC. O-ring EPDM, rivestimento PTFE. Per: FHX50, FMP50/FMP51/FMP52/ FMP53/FMP54/FMP55/FMP56/FMP57, FMR50/ FMR51/FMR52/FMR53/FMR54/FMR56/FMR57, FMR60/FMR62/FMR67.

    • Nr 20 Order code 71110293

      Coperchio GT19 PBT, guarnizione

      Materiale: plastica PBT, metallizzata. O-ring EPDM, rivestito PTFE. Per: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57, FMR60/FMR62/FMR67.

    • Nr 20 Order code 71110297

      Cover GT20 Alu, sight glass, gasket

      Material: Alluminio, rivestito. O-ring EPDM, PTFE rivestito. Per: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57, FMR60/FMR62/FMR67. Per: Promass 200/TB2, Prosonic Flow 200, Promag 200, Prowirl 200.

    • Nr 20 Order code 71110299

      Cover GT20 Alu, gasket

      Materiale: Alluminio, rivestito. O-ring EPDM, rivestito in PTFE. Per FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57, FMR60/FMR62/FMR67. Per: Promass 200/TB2, Prosonic Flow 200, Promag 200, Prowirl 200.

    • Nr 20 Order code 71383631

      Cover GT18 316L, FVMQ

      Material: 316L. O-Ring FVMQ. Usage: FMP51/FMP54, FMR51/FMR52/FMR54. Usage: Prowirl 200.

    • Nr 20 Order code 71383666

      Cover GT18 316L, sight glass, FVMQ

      Material: 316L. O-Ring FVMQ. Usage: FMP51/FMP54, FMR51/FMR52/FMR54. Usage: Prowirl 200.

    • Nr 20 Order code 71383674

      Cover GT20 Alu, FVMQ

      Material: Alu. O-Ring FVMQ. Usage: FMP51/FMP54, FMR51/FMR52/FMR54. Usage: Prowirl 200.

    • Nr 20 Order code 71383675

      Cover GT20 Alu, sight glass, FVMQ

      Material: Alu. O-Ring FVMQ. Usage: FMP51/FMP54, FMR51/FMR52/FMR54. Usage: Prowirl 200.

  • 25
    • Nr 25 Order code 71110284

      Cover GT18 316L, terminal Ex d, HNBR

      Material: 316L. O-ring EPDM /PTFE coated. Usage: terminal compartment Ex d/XP, FMP51/FMP52/FMP54/FMP55/FMP56/FMP57, FMR51/FMR52/FMR53/FMR54/FMR57, FMR62/FMR67. Usage: Promass 200/TB2, Prosonic Flow 200, Prowirl 200.

    • Nr 25 Order code 71110291

      Coperchio GT18 316L, terminale Ex, guarn

      Materiale: 316L. O-ring EPDM, PTFE rivestito. Per: terminal compartment, non idoneo per Ex d/XP, FMP51/FMP52/FMP54/FMP55/FMP56/FMP57, FMR51/FMR52/FMR53/FMR54/FMR57, FMR62/FMR67.. Per: Promass 200/TB2, Prosonic Flow 200, Prowirl 200.

    • Nr 25 Order code 71110295

      Cover GT19 PBT, Terminal Ex, EPDM

      Materiale: plastica PBT, metallizzato. Utilizzo: vano terminale, non per Ex d/XP, FMP50/FMP51/FMP52/FMP53/FMP54/FMP55/ FMP56/FMP57, FMR50/FMR51/FMR52/FMR53/ FMR54/FMR56/FMR57, FMR60/FMR62/FMR67.

    • Nr 25 Order code 71110301

      Cover GT20 Alu, Terminal Ex, HNBR

      Material: Rivestimento in alluminio. O-ring rivestito EPDM, PTFE. Per: Terminal compartment, non per Ex d/XP, Per FMP50/FMP51/FMP52/FMP53/FMP54/FMP55/ FMP56/FMP57, FMR50/FMR51/FMR52/FMR53/ FMR54/FMR56/FMR57, FMR60/FMR62/FMR67. Usage: Promass 200/TB2, Prosonic Flow 200, Promag 200, Prowirl 200.

    • Nr 25 Order code 71110302

      Coper. GT20 Alu,Terminale Ex d, guarniz.

      Materiale: alluminio, rivestito. O-ring EPDM, PTFE rivestito. Per: blocco terminale Ex d/XP, FMP50/FMP51/FMP52/FMP53/FMP54/FMP55/ FMP56/FMP57, FMR50/FMR51/FMR52/FMR53/ FMR54/FMR56/FMR57, FMR60/FMR62/FMR67. Usage: Promass 200/TB2, Prosonic Flow 200, Promag 200, Prowirl 200.

    • Nr 25 Order code 71185516

      Cover GT18 316L, Terminal, OVP, HNBR

      Material: 316L. O-ring EPDM, PTFE coated. Usage: terminal compartment, for overvoltage protection, not for Ex d/XP, FMP50/FMP51/FMP52/FMP53/FMP54/FMP55/ FMP56/FMP57, FMR50/FMR51/FMR52/FMR53/ FMP54/FMP56/FMP57, FMR62/FMR67. Usage: Promass 200, Prosonic Flow 200, Prowirl 200.

    • Nr 25 Order code 71185517

      Cover GT20 Alu, Terminal, OVP, HNBR

      Material: aluminium. O-ring EPDM, PTFE coated. Usage: terminal compartment, for overvoltage protection, not for Ex d/XP, FMP50/FMP51/FMP52/FMP53/FMP54/FMP55/ FMP56/FMP57, FMR50/FMR51/FMR52/FMR53/ FMR54/FMR56/FMR57, FMR60/FMR62/FMR67. Usage: Promass 200, Prosonic Flow 200, Promag 200, Prowirl 200.

    • Nr 25 Order code 71185518

      Cover GT19 PBT, Terminal, OVP, EPDM

      Material: plastic PBT, metallizied. O-ring EPDM, PTFE coated. Usage: terminal compartment, for overvoltage protection, not for Ex d/XP. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57, FMR60/FMR62/FMR67.

    • Nr 25 Order code 71383668

      Cover GT18 316L, terminal Ex, FVMQ

      Material: 316L. O-Ring FVMQ. Usage: FMP51/FMP54, FMR51/FMR52/FMR54. Usage: Prowirl 200.

    • Nr 25 Order code 71383670

      Cover GT18 316L, terminal Ex d, FVMQ

      Material: 316L. O-Ring FVMQ. Usage: FMP51/FMP54, FMR51/FMR52/FMR54. Usage: Prowirl 200.

    • Nr 25 Order code 71383671

      Cover GT18 316L, Terminal, OVP, FVMQ

      Material: 316L. O-Ring FVMQ. Usage: FMP51/FMP54, FMR51/FMR52/FMR54. Usage: Prowirl 200.

    • Nr 25 Order code 71383679

      Cover GT20 Alu, Terminal Ex, FVMQ

      Material: Alu. O-Ring FVMQ. Usage: FMP51/FMP54, FMR51/FMR52/FMR54. Usage: Prowirl 200.

    • Nr 25 Order code 71383680

      Cover GT20 Alu, Terminal Ex d, FVMQ

      Material: Alu. O-Ring FVMQ. Usage: FMP51/FMP54, FMR51/FMR52/FMR54. Usage: Prowirl 200.

    • Nr 25 Order code 71383682

      Cover GT20 Alu, Terminal, OVP, FVMQ

      Material: Alu. O-Ring FVMQ. Usage: FMP51/FMP54, FMR51/FMR52/FMR54. Usage: Prowirl 200.

  • 65
    • Nr 65 Order code 71110303

      Set di tenuta custodia GT18, GT19, GT20

      Composto da: O-ring 88,5 x3, 53 EPDM / PTFE, coperchio vano elettronica. Custodia GT19 O-Ring 88.5x3.53 NBR, coperchio vano elettronica, custodia GT18, GT20. O-ring 91.67x3.53 EPDM/PTFE, coperchio vano elettronica, custodia GT19. O-Ring 91.67x3.53 NBR, coperchio vano elettronica, custodia GT18, GT20. O-ring 50.39x3.53 EPDM/PTFE, custodia/sensore. FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57, FMR60/FMR62/FMR67. Per: Promass 200/TB2 Prosonic Flow 200, Promag 200, Prowirl 200

    • Nr 65 Order code 71384797

      Sealing set GT18/20, FVMQ

      Consists of: O-Ring 88,5x3,53 FVMQ cover electronics compartment, housung GT18, GT20. O-Ring 91,67x3,53 FVMQ cover terminal compartment, housung GT18, GT20. Usage: FMP51/FMP54, FMR51/FMR52/FMR54. Usage: Prowirl 200.

  • 34
    • Nr 34 Order code 71108594

      I/O modulo 2 fili, 4-20mA, HART, Ex, V2

      Non-Ex, Ex. 1x uscita HART. Versione 2. Per: FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57.

    • Nr 34 Order code 71108599

      I/O module, 2-wire, 4-20mA,HART, PFS, Ex

      Non-Ex, Ex. 1x uscita HART, 1x PFS. PFS=switch output. Per FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57.

    • Nr 34 Order code 71164940

      I/O modulo, 2 fili, PA/FF, PFS, Ex, V2

      Non-Ex, Ex. PROFIBUS PA, FOUNDATION Fieldbus. PFS=switch output. Versione 2. Per: FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57. Per: Promass 200, Prowirl 200, Promag 200.

    • Nr 34 Order code 71187812

      I/O mod.Level,2-wr.4-20mA,HART,Ex,LP,V2

      Versione 2. Non adatto per Ex d/XP. LP=bassa tensione. 1x uscita HART. Per: FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57.

    • Nr 34 Order code 71207473

      I/O mod. Level,4-wr.DC,4-20mA,HART,Ex,V2

      Non-Ex, Ex. 10.4-48VDC. 1x current output HART. Version 2. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57, FMR60/FMR62/FMR67.

    • Nr 34 Order code 71207474

      I/O mod. Livel,2-fl.2x4-20mA,HART,Ex,V2

      Non-Ex, Ex. Uscita in corrente, 4-20mA HART + 4-20mA analogico. Versione 2. Per: FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57.

    • Nr 34 Order code 71207475

      I/O mod. Level,4-wr.AC,4-20mA,HART,Ex,V2

      Non-Ex, Ex. 90-253VAC. 1x current output HART. Version 2. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57, FMR60/FMR62/FMR67.

  • 37
    • Nr 37 Order code 71110279

      Terminal set 4-wire, I/O module

      Consists of: 2x terminal 2-pole, green. 2x terminal 2-pole, red. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57, FMR60/FMR62/FMR67.

    • Nr 37 Order code 71110280

      Terminal set 2-wire, I/O module

      Composto da: 4x terminale a 2 poli, verde. Per: FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57, FMR60/62/67. Promass 200/TB2, Prosonic Flow 200, Promag 200, Prowirl 200.

    • Order code

      Remote display FHX50 please order with separate order structure.

    • Order code 71206552

      Cable FHX50, 5m

      Connection cable, shielded. Usage: FHX50.

    • Order code 71206554

      Cavo FHX50, 10m

      Cavo di collegamento, schermato. Per: FHX50.

    • Order code 71206555

      Cavo FHX50, 20m

      Cavo di connessione. Per: FHX50.

    • Order code 71206556

      Cavo FHX50, 30m

      Cavo di collegamento, schermato. Per: FHX50.

    • Order code 71197334

      Trasmettitore elettronica FHX50

      Composto da: Elettronica, cavo. Per: FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57. Usage: Promass200, Prowirl 200, Promag 200, Prosonic Flow 200.

    • Order code 71128617

      Protez. sovratensione (OVP10), 1-Canale

      4-20mA HART. Per: FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57,60,62,67 Per: Promass 200, Prosonic Flow 200, Promag 200, Prowirl 200.

    • Order code 71128619

      Protezione sovratens. (OVP20), 2 canali

      4-20mA HART, PROFIBUS PA, FOUNDATION Fieldbus, Impulso/Frequenza/Stato Uscita. Per: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/ FMR57, FMR60/FMR62/FMR67. Per: Promass 200, Prosonic Flow 200, Promag 200, Prowirl 200.

  • 40
    • Nr 40 Order code XPD0024-

      Modulo display, SD02, pulsanti

      Per custodia: GT18, GT19, GT20. Per: FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57, FHX50. Promass 200/TB2, Prosonic Flow 200, t-mass 150, Promag 200, Prowirl 200. Composto da: Display SD02, cavo a spirale, cavo a nastro, copertura connettore.

    • Nr 40 Order code XPD0025-

      Modulo display, SD03, Touch Control

      Custodie: GT18, GT19, GT20. Per: FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57, FHX50. Promass 200/TB2, Prosonic Flow 200, Promag 200, Prowirl 200. Composto da: Display SD03 illuminato, cavo a nastro, coperchio connettore.

  • 55
    • Nr 55 Order code 71187601

      Horn 40mm/1-1/2", 316L

      Material: 316L. Screws M4x14, 316L. Spring washers, 316L. Usage: FMR51.

    • Nr 55 Order code 71187602

      Antenna 50mm/2", 316L

      Materiale: 316L. Viti M4x14, 316L. Rondelle, 316L. Per: FMR51.

    • Nr 55 Order code 71187603

      Antenna 80mm/3", 316L

      Materiale: 316L. Viti M4x14, 316L. Vite esagonale M4x8, acciaio. Rondelle elastiche, 316L. Per: FMR51/FMR57.

    • Nr 55 Order code 71187606

      Antenna 100mm/4", 316L

      Materiale: 316L. Viti: M4x14, 316L. Rondelle: 316L. Per: FMR51.

    • Nr 55 Order code 71187608

      Horn 40mm/1-1/2", 316L, 3.1

      Material: 316L. Screws M4x14, 316L. Spring washers, 316L. 3.1 Material certificate, wetted metallic parts, EN10204-3.1 inspection certificate. Usage: FMR51.

    • Nr 55 Order code 71187609

      Horn 50mm/2", 316L, 3.1

      Material: 316L. Screws M4x14, 316L. Spring washers, 316L. 3.1 Material certificate, wetted metallic parts, EN10204-3.1 inspection certificate. Usage: FMR51.

    • Nr 55 Order code 71187610

      Horn 80mm/3", 316L, 3.1

      Material: 316L. Screws M4x14, 316L. Spring washers, 316L. 3.1 Material certificate, wetted metallic parts, EN10204-3.1 inspection certificate. Usage: FMR51.

    • Nr 55 Order code 71187613

      Horn 100mm/4", 316L, 3.1

      Material: 316L. Screws M4x14, 316L. Spring washers, 316L. 3.1 Material certificate, wetted metallic parts, EN10204-3.1 inspection certificate. Usage: FMR51.

    • Nr 55 Order code 71187614

      Horn 40mm/1-1/2", AlloyC, 3.1

      Material: AlloyC. Screws M4x10, AlloyC. 3.1 Material certificate, wetted metallic parts, EN10204-3.1 inspection certificate. Usage: FMR51.

    • Nr 55 Order code 71187619

      Horn 50mm/2", AlloyC, 3.1

      Material: AlloyC. Screws M4x10, AlloyC. 3.1 Material certificate, wetted metallic parts, EN10204-3.1 inspection certificate. Usage: FMR51.

    • Nr 55 Order code 71187620

      Horn 80mm/3", AlloyC, 3.1

      Material: AlloyC. Screws M4x10, AlloyC. 3.1 Material certificate, wetted metallic parts, EN10204-3.1 inspection certificate. Usage: FMR51.

    • Nr 55 Order code 71187621

      Horn 100mm/4", AlloyC, 3.1

      Material: AlloyC. Screws M4x10, AlloyC. 3.1 Material certificate, wetted metallic parts, EN10204-3.1 inspection certificate. Usage: FMR51.

    • Nr 55 Order code 71236711

      Horn 40mm/1-1/2", length=51mm, 316L

      Material: 316L. Screws M4x14, 316L. Nordlock washers, 316L. Usage: variable antenna extension, FMR51.

    • Nr 55 Order code 71236722

      Horn 50mm/2", length=80mm, 316L

      Material: 316L. Screws M4x14, 316L. Nordlock washers, 316L. Usage: variable antenna extension, FMR51.

    • Nr 55 Order code 71236723

      Horn 80mm/3", length=176mm, 316L

      Material: 316L. Screws M4x14, 316L. Nordlock washers, 316L. Usage: variable antenna extension, FMR51.

    • Nr 55 Order code 71236724

      Horn 40mm/1-1/2", length=51mm, 316L, 3.1

      Material: 316L. Screws M4x14, 316L. Nordlock washers, 316L. Usage: variable antenna extension, 3.1 Material certificate, wetted metallic parts, EN10204-3.1 inspection certificate, FMR51.

    • Nr 55 Order code 71236726

      Horn 50mm/2", length=80mm, 316L, 3.1

      Material: 316L. Screws M4x10, 316L. Nordlock washers, 316L. Usage: variable antenna extension, 3.1 Material certificate, wetted metallic parts, EN10204-3.1 inspection certificate FMR51.

    • Nr 55 Order code 71236727

      Horn 80mm/3", length=176mm, 316L, 3.1

      Material: 316L. Screws M4x14, 316L. Nordlock washers 316L. Usage: variable antenna extension, 3.1 Material certificate, wetted metallic parts, EN10204-3.1 inspection certificate, FMR51.

    • Nr 55 Order code 71236728

      Horn 100mm/4", length=247mm, 316L, 3.1

      Material: 316L. Screws M4x14, 316L. Nordlock washers 316L. Usage: variable antenna extension, 3.1 Material certificate, wetted metallic parts, EN10204-3.1 inspection certificate, FMR51.

    • Nr 55 Order code 71236737

      Horn 100mm/4", length=247mm, 316L

      Material: 316L. Screws M4x14, 316L. Nordlock washers, 316L. Usage: variable antenna extension, FMR51.

    • Nr 55 Order code 71273145

      Horn 40mm/1-1/2", 316L, 3.1 + PMI test

      Material: 316L. Screws M4x14, 316L. Spring washers, 316L. 3.1 Material certificate, wetted metallic parts, EN10204-3.1 inspection certificate. PMI test (XRF), internal procedure, wetted metallic parts, inspection certificate. Usage: FMR51.

    • Nr 55 Order code 71273148

      Horn 50mm/2", 316L, 3.1 + PMI test

      Material: 316L. Screws M4x14, 316L. Spring washers, 316L. 3.1 Material certificate, wetted metallic parts, EN10204-3.1 inspection certificate. PMI test (XRF), internal procedure, wetted metallic parts, inspection certificate. Usage: FMR51.

    • Nr 55 Order code 71273151

      Horn 80mm/3", 316L, 3.1 + PMI test

      Material: 316L. Screws M4x14, 316L. Hexagon screw M4x8, steel. Spring washers, 316L. 3.1 Material certificate, wetted metallic parts, EN10204-3.1 inspection certificate. PMI test (XRF), internal procedure, wetted metallic parts, inspection certificate. Usage: FMR51/FMR57.

    • Nr 55 Order code 71273154

      Horn 100mm/4", 316L, 3.1 + PMI test

      Material: 316L. Screws M4x14, 316L. Spring washers, 316L. 3.1 Material certificate, wetted metallic parts, EN10204-3.1 inspection certificate. PMI test (XRF), internal procedure, wetted metallic parts, inspection certificate. Usage: FMR51.

    • Nr 55 Order code 71273156

      Horn 40mm/1-1/2",l=51mm, 316L, 3.1 + PMI

      Material: 316L. Screws M4x14, 316L. Nordlock washers, 316L. 3.1 Material certificate, wetted metallic parts, EN10204-3.1 inspection certificate. PMI test (XRF), internal procedure, wetted metallic parts, inspection certificate. Usage: variable antenna extension, FMR51.

    • Nr 55 Order code 71273157

      Horn 50mm/2", length=80mm, 316L, 3.1+PMI

      Material: 316L. Screws M4x10, 316L. Nordlock washers, 316L. 3.1 Material certificate, wetted metallic parts, EN10204-3.1 inspection certificate. PMI test (XRF), internal procedure, wetted metallic parts, inspection certificate. Usage: variable antenna extension, FMR51.

    • Nr 55 Order code 71273158

      Horn 80mm/3",length=176mm, 316L, 3.1+PMI

      Material: 316L. Screws M4x14, 316L. Nordlock washers 316L. 3.1 Material certificate, wetted metallic parts, EN10204-3.1 inspection certificate. PMI test (XRF), internal procedure, wetted metallic parts, inspection certificate. Usage: variable antenna extension, FMR51.

    • Nr 55 Order code 71273162

      Horn 100mm/4",l=247mm,316L, 3.1+PMI test

      Material: 316L. Screws M4x14, 316L. Nordlock washers 316L. 3.1 Material certificate, wetted metallic parts, EN10204-3.1 inspection certificate. PMI test (XRF), internal procedure, wetted metallic parts, inspection certificate. Usage: variable antenna extension, FMR51.

    • Nr 55 Order code 71274670

      Horn 40mm/1-1/2", AlloyC, 3.1 + PMI test

      Material: AlloyC. Screws M4x10, AlloyC. 3.1 Material certificate, wetted metallic parts, EN10204-3.1 inspection certificate. PMI test (XRF), internal procedure, wetted metallic parts, inspection certificate. Usage: FMR51.

    • Nr 55 Order code 71274677

      Horn 50mm/2", AlloyC, 3.1 + PMI test

      Material: AlloyC. Screws M4x10, AlloyC. 3.1 Material certificate, wetted metallic parts, EN10204-3.1 inspection certificate. PMI test (XRF), internal procedure, wetted metallic parts, inspection certificate. Usage: FMR51.

    • Nr 55 Order code 71274680

      Horn 80mm/3", AlloyC, 3.1 + PMI test

      Material: AlloyC. Screws M4x10, AlloyC. 3.1 Material certificate, wetted metallic parts, EN10204-3.1 inspection certificate. PMI test (XRF), internal procedure, wetted metallic parts, inspection certificate. Usage: FMR51.

    • Nr 55 Order code 71274681

      Horn 100mm/4", AlloyC, 3.1 + PMI test

      Material: AlloyC. Screws M4x10, AlloyC. 3.1 Material certificate, wetted metallic parts, EN10204-3.1 inspection certificate. PMI test (XRF), internal procedure, wetted metallic parts, inspection certificate. Usage: FMR51.

    • Order code 71162242

      Protezione antiven. GT18/GT19/GT20, 316L

      Per: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/FMR52/FMR53/FMR54/ FMR56/FMR57, FMR60/FMR62/FMR67. Per: Promass 200/TB2, Prosonic Flow 200, Promag 200, Prowirl 200.

  • 30
    • Order code 71105889

      Protezione antenna, antenna 100mm(4")

      disco PTFE + anello di montaggio. Non EX. Per Micropilot M.

    • Order code 71105890

      Protezione antenna, antenna 80mm(3")

      disco PTFE + anello di montaggio. Non EX. Per Micropilot M.

    • Order code 71377355

      Modulo Bluetooth (BT10)

      Modulo per comunicazione dati wireless. Per: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57, FMR60/FMR62/FMR67.

    • Order code XPRFID-

      Spare RFID TAG

      Consists of: RFID TAG, fixing wire, crimp sleeve.
