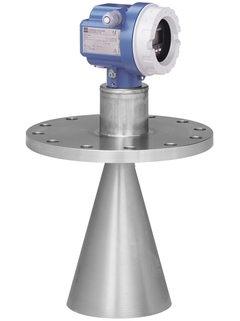

Micropilot M FMR230

Questo prodotto non è più disponibile.

Cercare la nuova versione nella sezione predecessore / successore o contattare l'ufficio Endress+Hauser locale.

Caratteristiche e specifiche

Indietro

Details

  • Principio di misura

    Livello radar

  • Caratteristica / Applicazione

    For high pressures and temperatures

  • Alimentazione / Comunicazione

    A 2 fili (HART/PROFIBUS PA/Fieldbus Foundation)

  • Frequenza

    Banda C (~6 GHz)

  • Precisione

    ±10 mm

  • Temperatura ambiente

    -40 … +80 °C

    (-40 … +176 °F)

  • Temperatura di processo

    -60 … +400 °C

    (-76 … +752 °F)

  • Pressione assoluta di processo / limite massimo di sovrapressione

    Vuoto … 160 bar

    (Vuoto … 2320 psi)

  • Parti bagnate

    316L, Alloy C

  • Attacco al processo

    Flangia:

    DN80 … 250,

    ASME 3 … 0",

    JIS 10K

  • Connessione igienica al processo

    Tri-Clamp ISO2852

  • Dimensione del serbatoio / Applicazione

  • Distanza massima di misura

    20 m (65 ft)

  • https://portal.endress.com/picpool/sft/prodcont/technicalinfo/Radar_Mediengruppe_en.jpg https://portal.endress.com/picpool/sft/prodcont/technicalinfo/Radar_not_selected_FMR230.jpg
  • Comunicazione

    4-20 mA HART

    PROFIBUS PA

    Fieldbus Foundation

  • Certificati / Approvazioni

    ATEX, FM, CSA, IECEx, TIIS, NEPSI

    WHG Prevenzione di troppo pieno

    SIL

    EN10204-3.1

    NacE

    GL navale/ABS/NK

  • Opzioni

    DN80/DN100 per tubo di calma/bypass

  • Limiti applicativi

    Maximum measuring range is dependent on the tank form and/or application


    Free space with nozzle

Documenti / Manuali / Software

Accessori / Parti di ricambio

Nr
Order code
Specification
    • Order code 52006628

      PROFIBUS PA CONNETTORE M20 (WDM) 150mm

      Connettore a quattro poli M12 adatto al montaggio su passacavo M20X1.5 per il collegamento diretto degli strumenti alla T-BOX. Completo di cavo di collegamento lungo 150 mm Non per PROMAG e PROMASS.

  • 12
    • Nr 12 Order code 535720-9020

      Set of screws housing F12/T12/F23

      Consists of: 1x stop screw M5x10. 1x retaining screw M8x10. Usage: FMR230/FMR231, FMR240/FMR244/FMR245, FMR250, FMU40/FMU41/FMU42/FMU43/FMU44.

  • 65
    • Nr 65 Order code 535720-9010

      Sealing kit FMR2xx

      Consists of: 2x gasket Pg13.5 FA. 2x O-ring 17.0x2.0 EPDM. 1x O-ring 49.21x3.53 EPDM. 2x O-ring 17.12x2.62 FKM. 1x O-ring 113.9x3.53 EPDM. 1x O-ring 72.0x3.0 EPDM. Usage: FMR230/FMR231, FMR240/FMR244/FMR245, FMR250.

  • 20
    • Nr 20 Order code 517391-0011

      Cover F12/T12 Alu, coated, gasket

      Material: aluminium, coated. O-ring EPDM. Usage: FMR230/FMR231, FMR240/FMR244/FMR245, FMR250, FMU40/FMU41/FMU42/FMU43/FMU44.

  • 25
    • Nr 25 Order code 518710-0020

      Cover T3/T12 Alu, coated, gasket

      Material: aluminium, coated. O-ring EPDM. Usage: FMR230/FMR231,FMR240/FMR244/ FMR245, FMR250, FMR530/FMR531/FMR532/ FMR533, FMR540, FMU40/FMU41/FMU42.

  • 20
    • Nr 20 Order code 52005936

      Coperchio F12/T12 Alu,finestra,guarniz.

      Materiale: alluminio per tastiera + modulo display VU331 e custodia F12/T12 Micropilot M/S, Prosonic M, Levelflex M

  • 11
    • Nr 11 Order code 52006026

      coperchio per vano connessioni F12/F23

      Cappuccio per vano connessioni Micropilot M, Prosonic M, Levelflex M

  • 20
  • 11
    • Nr 11 Order code 52019062

      Coperchio per vano connessioni F12/F23

      Cappuccio per vano connessioni per display separato FHX40 Micropilot M, Prosonic M, Levelflex M

  • 21
  • 11
    • Nr 11 Order code 52005643

      Abdeckhaube T12 (MICROPILOT M/S)

      Cable compartment, electronics side. Usage: Micropilot M/S, Prosonic M, Levelflex M.

  • 35
    • Nr 35 Order code 52006197

      Modulo morsetti 4-poli, HART, 2-fili

      con connessione cavo per custodia F12 Micropilot M, Levelflex M, Prosonic M

    • Nr 35 Order code 52012156

      Klemmenmodul 4p +2Dr-Filter/PA+FF(F12

      PROFIBUS PA, FOUNDATION Fieldbus. Usage: Micropilot II/M, Prosonic M, Levelflex M.

    • Nr 35 Order code 52013302

      Mod.termin. Ex d, 4poli, 2fili, HART,T12

      Per: custodia T12, Levelflex M, Prosonic M, Micropilot M.

    • Nr 35 Order code 52013303

      Klemmenmodul FMP40, Ex d, 2-Dr., PA, FF

      2-wire, PROFIBUS PA/FOUNDATION Fieldbus. Ex d limiter. Usage: housing T12, Levelflex M, Micropilot M, Prosonic M.

    • Nr 35 Order code 52014817

      Terminal mod4-pole,HART,ferrit,F12/F23

      Certificato marino GL/ABS Per. Micropilot M, Levelflex M.

    • Nr 35 Order code 52014818

      Terminal mod.4-p.,PA/FF,ferrit,F12/F23

      Certificato marino GL/ABS. Per Micropilot M. Leveflex M.

    • Nr 35 Order code 52018949

      Terminal module 4p, EEx ia, HART,T12,OVP

      4-pole, 2-wire. OVP = overvoltage protection. Usage: housing T12, Levelflex M, Prosonic M, Micropilot M.

    • Nr 35 Order code 52018950

      Terminal mod. 2-p.,EEx ia,PA/FF,T12,OVP

      2-pole, 2-wire. PROFIBUS PA, FOUNDATION Fieldbus. OVP = overvoltage protection. Usage: housing T12, Levelflex M, Prosonic M, Micropilot M.

  • 31
  • 30
    • Nr 30 Order code 71023757

      Electronics FMR23x/FMR24x,Ex,HART,v4.0

      Versione 4.0 Per: FMR230/FMR231, FMR240/FMR244/FMR245.

    • Nr 30 Order code 71023758

      Electronics FMR23x/FMR24x, Ex,PA,v4.0

      PROFIBUS PA, version 4.0. Usage: FMR230/FMR231, FMR240/FMR244/FMR245.

    • Nr 30 Order code 71023759

      Electronics FMR23x/FMR24x, Ex,FF,v4.0

      FOUNDATION Fieldbus, versione 4.0 Per: FMR230/FMR231, FMR240/FMR244/FMR245 con modulo HF, versione uP III.2.

  • 40
    • Nr 40 Order code 52026443

      Display VU331, versione 2

      Display alfanumerico, 4-linee Per: FMR530/532/533, FMR540, FMU40/41/42/43/44.

  • 55
    • Nr 55 Order code 52005994

      Horn-Antenne FMR-DN 80/ 3" Hast C4

      Allen screws.

    • Nr 55 Order code 52005995

      Horn-Antenne FMR-DN 100/ 4" Hast C4

      Allen screws.

    • Nr 55 Order code 52005996

      Horn-Antenne FMR-DN 150/ 6" Hast C4

      Allen screws.

    • Nr 55 Order code 52005997

      Horn-Antenne FMR-DN 200/ 8" Hast C4

      Allen screws.

    • Nr 55 Order code 52005998

      Horn-Antenne FMR-DN 250/ 10" Hast C4

      Allen screws.

    • Nr 55 Order code 52008994

      Horn-Antenne FMR-DN 80/ 3"-3.1.B-VA

      Allen screws + spring washers. Nordlock washer. Inspection cert. EN10204-3.1 material (316/316L wetted parts). Usage: FMR230, FMR530.

    • Nr 55 Order code 52008995

      Horn-Antenne FMR-DN 100/ 4"-3.1.B-VA

      Allen screws + spring washers. Nordlock washer. Inspection cert. EN10204-3.1 material (316/316L wetted parts). Usage: FMR230, FMR530.

    • Nr 55 Order code 52008996

      Horn-Antenne FMR-DN 150/ 6"-3.1.B-VA

      Allen screws + spring washers. Nordlock washer. Inspection cert. EN10204-3.1 material (316/316L wetted parts). Usage: FMR230, FMR530.

    • Nr 55 Order code 52008997

      Horn-Antenne FMR-DN 200/ 8"-3.1.B-VA

      Allen screws + spring washers. Nordlock washer. Inspection cert. EN10204-3.1 material (316/316L wetted parts). Usage: FMR230, FMR530.

    • Nr 55 Order code 52008998

      Horn-Antenne FMR-DN 250/ 10"-3.1.B-VA

      Allen screws + spring washers. Per: FMR230/FMR530. Inspection cert. EN10204-3.1 material (316/316L parti bagnate).

    • Nr 55 Order code 52021131

      Horn FMRx3x, DN80/3", 316/316L

      Allen screws + spring washers. Usage: FMR230, FMR530. Nordlock washer.

    • Nr 55 Order code 52021132

      Cono FMRx3x, DN100/4", 316/316L

      Viti esagonali + rondella elastica Per FFMR230, FMR530.

    • Nr 55 Order code 52021133

      Horn FMRx3x, DN150/6", 316/316L

      Allen screws + spring washers. Usage: FMR230, FMR530. Nordlock washer.

    • Nr 55 Order code 52021134

      Horn FMRx3x, DN200/8", 316/316L

      Allen screws + spring washers. Usage: FMR230, FMR530. Nordlock washer.

    • Nr 55 Order code 52021135

      Cono FMRx3x, DN250/10", 316/316L

      Viti esagonali + rondella elastica. Per: FMR230, FMR530. Rondella antisvitamento

  • 40
    • Nr 40 Order code FHX40-

      Display FHX40

      Display remoto per: Micropilot M, Prosonic M, Levelflex M, Gammapilot M. Custodia da campo IP65/IP67 NEMA 4x. LCD a 4 linee. :: calibrazione e visualizzazione dati tramite menu guida :: Setup facile :: Lingua selezionabile :: visualizzaz. della curva di inviluppo

  • 50
    • Order code 52018204

      Adaptionskit Gehäuse F12, 2Dr, f. FHX40

      Modification to remote display. Housing F12, 2-wire electronics. Non-hazardous area only. Please order FHX40 separately. Usage: Micropilot II/M, Prosonic M, Levelflex M.

    • Order code 52016334

      Kabel FHX40, 20m

      Connection cable, doubled shielded. Usage: FHX40.

    • Order code 71020502

      Cavo FHX40, 5m

      Cavo di collegamento, doppia schermatura. Per: FHX40.

    • Order code 71020503

      Cable FHX40, 10m

      Connection cable, doubled shielded. Usage: FHX40.

    • Order code 71020504

      Cavo FHX40, 30m

      Cavo di connessione, doppia schermatura. Per FHX40.

    • Order code 52013874

      Staffa di montaggio palina FHX40 1"/2"

      per display separato FHX40

    • Order code 543199-0001

      Protective cover for housing T12/F12, SS

      Usage: Micropilot M, Micropilot S, Prosonic M, Levelflex M. Material: 316Ti.

    • Order code 52004074

      Adapter FMR 23 für Prüfantenne

      Connection to 6GHz HF module. Dummy antenna. Usage: FMR230/FMR231.

    • Order code 52007441

      Adapterkabel Servicetool FMR 13/23

      Connection > adapter. Service tool RS232 (016154-0000). To use the ToF-Tool software Micropilot M, Micropilot S, Prosonic M, Levelflex M.

    • Order code 52007646

      Abziehwerkzeug HF-Stecker MICROPILOT M/S

      Usage: Micropilot M/Micropilot S.

    • Order code 71000221

      Adapterk. FMR2xx,FMx4x,PMx7x,FMD7x,FMG60

      Tool di connessione RS232 (52013675) / adattatore ToF FXA291 (71007843). Per:FMG60, FMD77/FMD78, FMR230/ FMR231, FMR240/FMR244/FMR245, FMR250, FMU40/FMU41/FMU42/FMU43/FMU44, NRF590, PMC71, PMD75, PMP71/PMP75.

    • Order code 71006590

      HF-test cable 6GHz

      Coax cable. Usage: FMR230/FMR231, FMR530/FMR531/FMR532/FMR533, FMR540. Dummy antenna.

    • Order code 71007843

      ToF Adapter FXA291

      Usage: connection Micropilot M, Micropilot S, Levelflex M, Prosonic M, Tank Side Monitor, Deltabar S, Cerabar S, Gammapilot M, Micropilot I, to Commubox FXA291.

    • Order code 52028063

      HF-test cable 6GHz + resistor

      Coax cable. Termination resistor / connection piece. Usage: FMR530/FMR532/FMR533, FMR540. Dummy antenna.

    • Order code 71067434

      Modifica nome targhetta, non Ex

      Vuoto. Compilare il nuovo codice d'ordine quando uno strumento non Ex è stato modificato.

    • Order code FAR10-

      Estensione antenna a cono FAR10

      Per: FMR230, FMR54. Per il prolungamento dell'antenna a cono dalla flangia.

    • Order code
    • Order code
