Proline Promass A 500
Misuratore di portata Coriolis

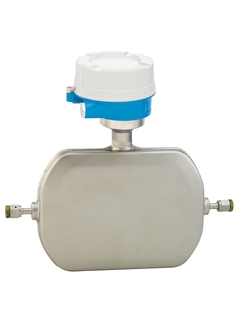

Immagine del flussimetro Coriolis Proline Promass A 500 / 8A5C per applicazioni di processo ©Endress+Hauser

Flussimetro Coriolis Proline Promass A 500 / 8A5C per applicazioni di processo

Animazione: Promass A - Il campione di leggerezza per le portate più basse

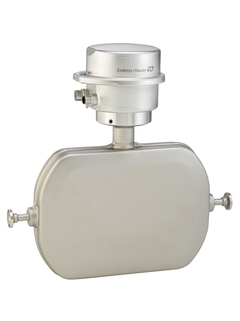

Immagine del flussimetro Coriolis Proline Promass A 500 / 8A5C per applicazioni igieniche ©Endress+Hauser

Flussimetro Coriolis Proline Promass A 500 / 8A5C per applicazioni igieniche

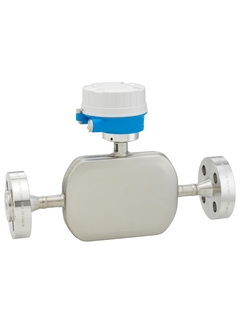

Immagine del flussimetro Coriolis Proline Promass A 500 / 8A5C per ambienti offshore ©Endress+Hauser

Flussimetro Coriolis Proline Promass A 500 / 8A5C per ambienti offshore

Il principio di misura della portata Coriolis

Misuratore di portata precisa con tubo singolo per piccole portate, in versione separata fino a un massimo di 4 ingressi/uscite

Promass A, dal design compatto, rappresenta la soluzione ideale per il controllo di processo continuo in applicazioni molto difficili. Il suo sistema autodrenante con tubo singolo consente la misura accurata di liquidi e gas a piccole portate e alta pressione. Con il suo innovativo trasmettitore remoto Promass A 500 massimizza la flessibilità di installazione e la sicurezza operativa in ambienti difficili. La Heartbeat Technology garantisce conformità e sicurezza di processo in qualsiasi momento.

  • Vantaggi

    • Installazione non ingombrante – sensore compatto e leggero

    • Elevata qualità del prodotto – disegno con tubo di misura autodrenante in tutte le dimensioni delle tubazioni

    • Sicurezza del processo ottimale – resistente alle condizioni ambientali corrosive e...

  • Campo applicativo

    • Il principio di misura opera indipendentemente dalle caratteristiche fisiche del fluido, come viscosità o densità

    • Adatto ad applicazioni con piccole portate in tutti i settori industriali.

    Proprietà del dispositivo

    • Diametro nominale: DN 1 ... 4 (1/24 ... 1...

Caratteristiche e specifiche

Indietro

Details

  • Principio di misura

    Coriolis

  • Caratteristiche principali

    Single-tube flowmeter for accurate measurement of lowest flow rates, as remote version with up to 4 I/Os. Suitable for applications with smallest flow quantities in all industries.

  • Caratteristiche

    Space-saving installation – compact, lightweight sensor. Highest product quality – self-drainable measuring tube design in all line sizes. Optimum process safety – resistant to corrosive ambient conditions and internal clogging. Nominal diameter: DN 1 to 4 (¹⁄₂₄ to ¹⁄₈"). Process pressure up to 430.9 bar (6250 psi).

  • Caratteristiche del trasmettitore

    Full access to process and diagnostic information – numerous, freely combinable I/Os and fieldbuses. Reduced complexity and variety – freely configurable I/O functionality. Integrated verification – Heartbeat Technology. Remote version with up to 4 I/Os. Backlit display with touch control and WLAN access.

  • Diametro

    DN 1 to 4 (¹⁄₂₄ to ¹⁄₈")

  • Materiali delle parti bagnate

    Measuring tube: stainless steel, 1.4435 (316/316L); Alloy C22

  • Variabili misurate

    Mass flow, density, temperature, volume flow, corrected volume flow, reference density

  • Errore di misura

    Mass flow (liquid): ±0.1 %
    Volume flow (liquid): ±0.1 %
    Mass flow (gas): ±0.35 % Density (liquid): ±0.0005 g/cm³

  • Campo di misura

    0 to 450 kg/h (0 to 16.54 lb/min)

  • Campo di pressione

    430.9 bar (6250 psi)

  • Temperatura di processo

    -50 to 205 °C (-58 to 401 °F)

  • Temperatura ambiente

    -40 to 60 °C (-40 to +140 °F)

  • Materiale del corpo del sensore

    Stainless steel, 1.4404 (316L)

  • Materiale della custodia del trasmettitore

    AlSi10Mg, coated; 1.4409 (CF3M) similar to 316L; Polycarbonat

  • Protezione elettronica

    Sensor remote version (standard): IP66/67, type 4X enclosure

    Sensor remote version (option): IP69.

    Transmitter remote version: IP66/67, Type 4X enclosure

  • Display / Operazione

    4-line backlit display with touch control (operation from outside)

    Configuration via local display and operating tools possible

  • Uscite

    4 outputs:
    4-20 mA HART (active/passive)
    4-20 mA WirelessHART
    4-20 mA (active/passive)
    Pulse/frequency/switch output (active/passive)
    Double pulse output (active/passive)
    Relay output

  • Ingressi

    Status input
    4-20 mA input

  • Comunicazione

    HART, PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485, Profinet, Ethernet/IP, OPC-UA

  • Alimentazione

    DC 24 V

    AC 100 to 230 V

    AC 100 to 230 V / DC 24 V (non-hazardous area)

  • Approvazioni Ex

    ATEX, IECEx, cCSAus, INMETRO, NEPSI

  • Sicurezza del prodotto

    CE, C-TICK

  • Sicurezza funzionale

    Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511

  • Certificati e approvazioni metrologiche

    Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)

    Heartbeat Technology complies with the requirements for traceable verification according to ISO 9001:2008 – Section 7.6 a (TÜV attestation)

  • Certificati e approvazioni per pressione

    PED, CRN

  • Certificati dei materiali

    3.1 material

  • Certificati e approvazioni igieniche

    3-A

  • Principio di misura

    Coriolis

  • Caratteristiche principali

    ?{general_selection_prod_comp_text_-553528896}

  • Caratteristiche

    ?{general_selection_prod_comp_text_-1068939322}

  • Caratteristiche del trasmettitore

    ?{general_selection_prod_comp_text_-1281360582}

  • Diametro

    DN 1 to 4 (¹⁄₂₄ to ¹⁄₈")

  • Materiali delle parti bagnate

    Measuring tube: stainless steel, 1.4435 (316/316L); Alloy C22

  • Variabili misurate

    Mass flow, density, temperature, volume flow, corrected volume flow, reference density

  • Errore di misura

    Mass flow (liquid): ±0.1 %
    Volume flow (liquid): ±0.1 %
    Mass flow (gas): ±0.35 % Density (liquid): ±0.0005 g/cm³

  • Campo di misura

    0 to 450 kg/h (0 to 16.54 lb/min)

  • Campo di pressione

    430.9 bar (6250 psi)

  • Temperatura di processo

    -50 to 205 °C (-58 to 401 °F)

  • Temperatura ambiente

    -40 to 60 °C (-40 to +140 °F)

  • Materiale del corpo del sensore

    Stainless steel, 1.4404 (316L)

  • Materiale della custodia del trasmettitore

    AlSi10Mg, coated; 1.4409 (CF3M) similar to 316L; Polycarbonat

  • Protezione elettronica

    Sensor remote version (standard): IP66/67, type 4X enclosure

    Sensor remote version (option): IP69.

    Transmitter remote version: IP66/67, Type 4X enclosure

  • Display / Operazione

    4-line backlit display with touch control (operation from outside)

    Configuration via local display and operating tools possible

  • Uscite

    4 outputs:
    4-20 mA HART (active/passive)
    4-20 mA WirelessHART
    4-20 mA (active/passive)
    Pulse/frequency/switch output (active/passive)
    Double pulse output (active/passive)
    Relay output

  • Ingressi

    Status input
    4-20 mA input

  • Comunicazione

    HART, PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485, Profinet, Ethernet/IP, OPC-UA

  • Alimentazione

    DC 24 V

    AC 100 to 230 V

    AC 100 to 230 V / DC 24 V (non-hazardous area)

  • Approvazioni Ex

    ATEX, IECEx, cCSAus, INMETRO, NEPSI

  • Sicurezza del prodotto

    CE, C-TICK

  • Sicurezza funzionale

    Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511

  • Certificati e approvazioni metrologiche

    Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)

    Heartbeat Technology complies with the requirements for traceable verification according to ISO 9001:2008 – Section 7.6 a (TÜV attestation)

  • Certificati e approvazioni per pressione

    CRN

  • Certificati dei materiali

    3.1 material

  • Certificati e approvazioni igieniche

    3-A

  • Principio di misura

    Coriolis

  • Caratteristiche principali

    Misuratore di portata monotubo per la misura accurata delle portate più basse, come versione remota con fino a 4 I/O. Adatto per applicazioni con quantità di flusso minime in tutti i settori.

  • Caratteristiche

    Installazione salvaspazio: sensore compatto e leggero. Massima qualità del prodotto: design del tubo di misura autosvuotante. Massima sicurezza di processo - resistente alle condizioni ambientali corrosive e all'intasamento interno. Diametro nominale: da DN 1 a 4 (da ¹/₂₄ a ¹/₈ "). Pressione di processo fino a 430,9 bar (6250 psi).

  • Caratteristiche del trasmettitore

    Pieno accesso alle informazioni di processo e diagnostiche - numerosi I/O e bus di campo liberamente combinabili. Complessità e varietà ridotte: funzionalità I/O liberamente configurabili. Verifica integrata - Heartbeat Technology. Versione remota con fino a 4 I/O. Display retroilluminato con touch control e accesso WLAN.

  • Diametro

    DN 1 to 4 (¹⁄₂₄ to ¹⁄₈")

  • Materiali delle parti bagnate

    Measuring tube: stainless steel, 1.4435 (316/316L); Alloy C22

  • Variabili misurate

    Mass flow, density, temperature, volume flow, corrected volume flow, reference density

  • Errore di misura

    Mass flow (liquid): ±0.1 %
    Volume flow (liquid): ±0.1 %
    Mass flow (gas): ±0.35 % Density (liquid): ±0.0005 g/cm³

  • Campo di misura

    0 to 450 kg/h (0 to 16.54 lb/min)

  • Campo di pressione

    430.9 bar (6250 psi)

  • Temperatura di processo

    -50 to 205 °C (-58 to 401 °F)

  • Temperatura ambiente

    -40 to 60 °C (-40 to +140 °F)

  • Materiale del corpo del sensore

    Stainless steel, 1.4404 (316L)

  • Materiale della custodia del trasmettitore

    AlSi10Mg, coated; 1.4409 (CF3M) similar to 316L; Polycarbonat

  • Protezione elettronica

    Sensor remote version (standard): IP66/67, type 4X enclosure

    Sensor remote version (option): IP69.

    Transmitter remote version: IP66/67, Type 4X enclosure

  • Display / Operazione

    4-line backlit display with touch control (operation from outside)

    Configuration via local display and operating tools possible

  • Uscite

    4 outputs:
    4-20 mA HART (active/passive)
    4-20 mA WirelessHART
    4-20 mA (active/passive)
    Pulse/frequency/switch output (active/passive)
    Double pulse output (active/passive)
    Relay output

  • Ingressi

    Status input
    4-20 mA input

  • Comunicazione

    HART, PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485, Profinet, Ethernet/IP, OPC-UA

  • Alimentazione

    DC 24 V

    AC 100 to 230 V

    AC 100 to 230 V / DC 24 V (non-hazardous area)

  • Approvazioni Ex

    ATEX, IECEx, cCSAus, INMETRO, NEPSI

  • Sicurezza del prodotto

    CE, C-TICK

  • Sicurezza funzionale

    Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511

  • Certificati e approvazioni metrologiche

    Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)

    Heartbeat Technology complies with the requirements for traceable verification according to ISO 9001:2008 – Section 7.6 a (TÜV attestation)

  • Certificati e approvazioni per pressione

    CRN

  • Certificati dei materiali

    3.1 material

  • Certificati e approvazioni igieniche

    3-A

Documenti / Manuali / Software

Accessori / Parti di ricambio

Nr
Order code
Specification
  • 31
    • Nr 31 Order code 71323007

      Kit alimentazione, 100-230VAC, Ex

      Per: Promag/Promass 300/500, custodia trasmettitore, scomparto elettronico.

    • Nr 31 Order code 71323008

      Kit alimentazione, 24VDC, Ex

      Per: Promag/Promass 300/500, custodia trasmettitore, scomparto elettronico.

    • Nr 31 Order code 71323009

      Kit aliment.,100-230VAC/24VDC, No Ex

      Per: Promag/Promass 300/500 digitale. No Ex, Zona 2, custodia trasmettitore, scomparto elettronico.

  • 47
  • 36
  • 39
    • Nr 39 Order code 71185788

      Kit T-DAT,Promass 100,Promag 100/400(C)

      Per: Promag/Promass 100/300/500, 500 digitale, Prosonic Flow E 100, Promag 400(C). (C) = index C.

  • 33
  • 37
    • Nr 37 Order code 71323010

      Kit module cartridge, 300/500, Ex

      Usage: transmitter housing, electronic compartment. Consists of: module cartridge incl. interconnection board.

  • 34
  • 46
  • 45
    • Nr 45 Order code 71323075

      Kit conn. terminale opz. A, 300/500, Ex

      Uso: custodia trasmettitore Alu/cast, Scomparto di collegamento. Opzione A = HART, PROFIBUS PA, FOUNDATION Fieldbus. Consiste in: 2x collegamento terminale 2-Pol., 1x collegamento terminale 4-Pol.

  • 35
  • 45
    • Nr 45 Order code 71323076

      Kit conn.terminal option B, 300/500, Ex

      Usage: transmitter housing Alu/cast, connection compartment. Option B = EtherNet, PROFINET. Consists of: 2x connection terminal 2-Pol.

  • 50
  • 45
    • Nr 45 Order code 71327819

      Kit conn.terminal option C, 300/500, Ex

      Usage: transmitter housing Alu/cast, connection compartment. Option C = PROFIBUS DP, Modbus RS485. Consists of: 2x connection terminal 2-Pol., 1x connection terminal 4-Pol.

    • Nr 45 Order code 71323077

      Kit terminal option A, 500 dig., Non-haz

      Usage: transmitter housing Alu/polycarbonate, connection compartment. Option A = HART, PROFIBUS PA, FOUNDATION Fieldbus. Consists of: 1x connection terminal 2-Pol., 1x connection terminal 3-Pol., 1x connection terminal 4-Pol., 1x connection terminal 6-Pol.

    • Nr 45 Order code 71323078

      Kit terminal option B, 500 dig., Non-haz

      Usage: transmitter housing Alu/polycarbonate, connection compartment. Option B = EtherNet, PROFINET. Consists of: 1x connection terminal 3-Pol., 1x connection terminal 4-Pol., 1x connection terminal 6-Pol.

    • Nr 45 Order code 71327820

      Kit terminal option C, 500 dig., Non-haz

      Usage: transmitter housing Alu/polycarbonate, connection compartment. Option C = PROFIBUS DP, Modbus RS485. Consists of: 1x connection terminal 2-Pol., 1x connection terminal 3-Pol., 1x connection terminal 4-Pol., 1x connection terminal 6-Pol.

  • 44
    • Nr 44 Order code 71323268

      Kit connection board, Promass 500, Ex

      Usage: Sensor connection housing. Consists of: connection board, O-Ring 26,00x1,50 HNBR.

    • Nr 44 Order code 71323269

      Kit connec.board, Promass 500, Ex, -50oC

      Usage: Sensor connection housing. Consists of: connection board, O-Ring 26,00x1,50 FVMQ, -50oC/-58oF.

  • 20
    • Nr 20 Order code 71323016

      Kit coper., vetro, Alu,Non-haz/Exde

      Per: Promag/Promass 300, alloggiamento del trasmettitore Alu, Non-haz. Promag/Promass 300/500, alloggiamento del trasmettitore Alu, Ex. Composto da: coperchio Alu, vetro, O-Ring 110.7x3.53 HNBR.

    • Nr 20 Order code 71323017

      Kit cover,glass, Alu, -50oC,Non-haz/Exde

      Usage: Promass 300, transmitter housing Alu, Non-haz. Promag 500, Promass 300/500, transmitter housing Alu, Ex. Consists of: cover Alu, sight glass, O-Ring 110,7x3,53 FVMQ, -50oC/-58oF.

    • Nr 20 Order code 71323020

      Kit cover, sight glass, Alu, Exd

      Usage: Promag/Promass 300/500, transmitter housing Alu, Ex. Consists of: cover Alu, sight glass, O-Ring 110.7x3.53 HNBR.

    • Nr 20 Order code 71323021

      Kit cover, sight glass, Alu, -50oC, Exd

      Usage: Promag 500, Promass 300/500, transmitter housing Alu, Ex. Consists of: cover Alu, sight glass, O-Ring 110,7x3,53 FVMQ, -50oC/-58oF.

    • Nr 20 Order code 71323024

      Kit cover, sight glass, cast, Ex

      Usage: Promag/Promass 300/500, transmitter housing cast, Ex. Consists of: cover cast, sight glass, O-Ring 110.7x3.53 HNBR.

    • Nr 20 Order code 71323025

      Kit cover, sight glass, cast, -50oC, Ex

      Usage: Promag 500, Promass 300/500, transmitter housing cast, Ex. Consists of: cover cast, sight glass, O-Ring 110,7x3,53 FVMQ, -50oC/-58oF.

  • 70
    • Nr 70 Order code 71323026

      Kit cover gasket, sight glass/blind

      Usage: Promag/Promass 300/500, transmitter housing Alu/cast. Consists of: 10x O-Ring 110.7x3.53 HNBR.

    • Nr 70 Order code 71323027

      Kit cover gasket,sight glass/blind,-50oC

      Usage: Promag 500, Promass 300/500, transmitter housing Alu/cast, Consists of: O-Ring 110,7x3,53 FVMQ, -50oC/-58oF.

  • 22
    • Nr 22 Order code 71323032

      Kit cover, electronic compart., Alu, Ex

      Usage: Promag/Promass 300/500, transmitter housing Alu, Ex. Consists of: cover Alu, O-Ring 120,2x3,53 HNBR.

    • Nr 22 Order code 71323033

      Kit cover, electr.compart., Alu,-50oC,Ex

      Usage: Promag 500, Promass 300/500, transmitter housing Alu, Ex. Consists of: cover Alu, O-Ring 120,2x3,53 FVMQ, -50oC/-58oF.

    • Nr 22 Order code 71323034

      Kit cover, electronic compart., cast, Ex

      Usage: Promag/Promass 300/500, transmitter housing cast, Ex. Consists of: cover cast, O-Ring 120,2x3,53 HNBR.

    • Nr 22 Order code 71323035

      Kit cover, electr.compart.,cast,-50oC,Ex

      Usage: Promag 500, Promass 300/500, transmitter housing cast, Ex. Consists of: cover cast, O-Ring 120,2x3,53 FVMQ, -50oC/-58oF.

  • 74
    • Nr 74 Order code 71323036

      Kit cover gasket, electronic compart.,Ex

      Usage: Promag/Promass 300/500, transmitter housing Alu/cast, Ex. Consists of: 10x O-Ring 120,2x3,53 HNBR.

    • Nr 74 Order code 71323037

      Kit cover gasket,elect.compart.,-50oC,Ex

      Usage: Promag 500, Promass 300/500, transmitter housing Alu/cast, Ex. Consists of: O-Ring 120,2x3,53 FVMQ, -50oC/-58oF.

  • 23
    • Nr 23 Order code 71323038

      Kit cover, wall mount, Alu, Ex

      Usage: Promag/Promass 500, wall mount transmitter Alu, Ex, connection compartment. Consists of: cover Alu, O-Ring 88,50x3,53 HNBR.

    • Nr 23 Order code 71323039

      Kit cover, wall mount, Alu, -50oC, Ex

      Usage: Promag/Promass 500, wall mount transmitter Alu, Ex, connection compartment. Consists of: cover Alu, O-Ring 88,50x3,53 FVMQ, -50oC/-58oF.

    • Nr 23 Order code 71323040

      Kit cover, wall mount, cast, Ex

      Usage: Promag/Promass 500, wall mount transmitter cast, Ex, connection compartment. Consists of: cover cast, O-Ring 88,50x3,53 HNBR.

    • Nr 23 Order code 71323041

      Kit cover, wall mount, cast, -50oC, Ex

      Usage: Promag/Promass 500, wall mount transmitter cast, Ex, connection compartment. Consists of: cover cast, O-Ring 88,50x3,53 FVMQ, -50oC/-58oF.

  • 75
    • Nr 75 Order code 71323042

      Kit cover gasket, wall mount, Ex

      Usage: Promag/Promass 500, wall mount transmitter Alu/cast, Ex, connection compartment. Consists of: 10x O-Ring 88,50x3,53 HNBR.

    • Nr 75 Order code 71323043

      Kit cover gasket, wall mount, -50oC, Ex

      Usage: Promag/Promass 500, wall mount transmitter Alu/cast, Ex, connection compartment. Consists of: O-Ring 88,50x3,53 FVMQ, -50oC/-58oF.

  • 20
    • Nr 20 Order code 71384170

      Kit cover, alu,Promag 400(C),500 digital

      Usage: Promag 400(C) = generation index C, Promag/Promass 500 digital, transmitter housing Alu. Consists of: cover Alu complete included O-Ring 196,44x3,53 VMQ, default and -50oC/-58oF, wire with screw lock 1,5x150.

    • Nr 20 Order code 71408508

      Kit cover, polycarb., 500 digital

      Usage: Promag/Promass 500 digital, transmitter housing polycarbonate. Consists of: Cover polycarbonate complete, O-Ring 196,44x3,53 VMQ, default and -50oC/-58oF, wire with screw lock 1,5x150.

  • 70
    • Nr 70 Order code 71278078

      Kit cover gasket, alu,400(C),500 digital

      Usage: Promag 400(C) = generation index C, Promag/Promass 500 digital, transmitter housing Alu, Ex. Consists of: 10x O-Ring 196,44x3,53 VMQ, default and -50oC/-58oF.

    • Nr 70 Order code 71278077

      Kit 10 cover gasket, polycarbonate

      Usage: Promag 400(C), 500 digital with polycarbonate housing. (C) = generation index C. Consists of: 10x O-Ring 196,44x3,53 VMQ.

  • 24
    • Nr 24 Order code 71228796

      Kit cover, remote, Alu

      Usage: Promag 400(C) = generation index C, Promag 500, Promag/Promass 500 digital, sensor connection housing. Consists of: cover Alu, O-Ring 113,90x3,53 HNBR.

    • Nr 24 Order code 71323050

      Kit cover, remote, Alu, -50oC

      Usage: Promass 500 digital, sensor connection housing. Consists of: cover Alu, O-Ring 113,90x3,53 FVMQ, -50oC/-58oF.

  • 73
    • Nr 73 Order code 71323051

      Kit housing gaskets, remote, Alu

      Usage: Promass 500 digital, sensor connection housing. Consists of: O-Ring 113,90x3,53 HNBR for cover, gasket EPDM for housing/sensor.

    • Nr 73 Order code 71323052

      Kit housing gaskets, remote, Alu, -50oC

      Usage: Promass 500 digital, sensor connection housing. Consists of: O-Ring 113,90x3,53 FVMQ for cover, -50oC/-58oF, gasket FVMQ for housing/sensor, -50oC/-58oF.

  • 24
    • Nr 24 Order code 71323053

      Kit cover, remote, stainless 1.4301

      Usage: Promass 500, Promag/Promass 500 digital, sensor connection housing. Consists of: cover stainless 1.4301, gasket EPDM for cover.

    • Nr 24 Order code 71323054

      Kit cover, remote,stainless 1.4301,-50oC

      Usage: Promass 500, Promass 500 digital, sensor connection housing. Consists of: cover stainless 1.4301, gasket FVMQ for cover, -50oC/-58oF.

  • 73
    • Nr 73 Order code 71323057

      Kit housing gaskets, remote, stainless

      Usage: Promass 500, Promass 500 digital, sensor connection housing. Consists of: gasket EPDM for cover, gasket EPDM for housing/sensor.

    • Nr 73 Order code 71323058

      Kit hous.gaskets, remote,stainless,-50oC

      Usage: Promass 500, Promass 500 digital, sensor connection housing. Consists of: gasket FVMQ for cover, -50oC/-58oF, gasket FVMQ for housing/sensor, -50oC/-58oF.

  • 24
    • Nr 24 Order code 71185793

      Kit cover,ultra compact,stainless 1.4301

      Usage: Promag/Promass 100, Promag/Promass 500 digital, sensor connection housing. Consists of: cover stainless 1.4301, gasket EPDM for cover.

    • Nr 24 Order code 71323060

      Kit cover, ultra compact, 1.4301, -50oC

      Usage: Promass 500 digital, sensor connection housing. Consists of: cover stainless 1.4301, gasket FVMQ for cover, -50oC/-58oF.

  • 73
    • Nr 73 Order code 71185799

      Kit hous.gaskets,ultra compact,stainless

      Usage: Promass 100, Promass 500 digital, sensor connection housing. Consists of: gasket EPDM for cover, gasket EPDM for housing/sensor.

    • Nr 73 Order code 71323062

      Kit housing gasket, ultra compact, -50oC

      Usage: Promass 500 digital, sensor connection housing stainless. Consists of: gasket FVMQ for cover, -50oC/-58oF, gasket FVMQ for housing/sensor, -50oC/-58oF.

  • 24
    • Nr 24 Order code 71323063

      Kit cover, remote, cast, Ex

      Usage: Promag/Promass 500, Promag/Promass 500 digital, sensor connection housing. Consists of: cover cast, O-Ring 120,2x3,53 HNBR.

    • Nr 24 Order code 71323064

      Kit cover, remote, cast, -50oC, Ex

      Usage: Promass 500, Promass 500 digital, sensor connection housing. Consists of: cover cast, O-Ring 120,2x3,53 FVMQ, -50oC/-58oF.

  • 73
    • Nr 73 Order code 71323065

      Kit housing gaskets, remote, cast, Ex

      Usage: Promass 500, Promass 500 digital, sensor connection housing. Consists of: O-Ring 120,2x3,53 HNBR for cover, O-Ring 88,50x3,53HNBR for housing/sensor

    • Nr 73 Order code 71323066

      Kit housing gaskets,remote,cast,-50oC,Ex

      Usage: Promass 500, Promass 500 digital, sensor connection housing. Consists of: O-Ring 120,2x3,53 FVMQ for cover, -50oC/-58oF, O-Ring 88,50x3,53 FVMQ for hous./sensor, -50oC/-58oF.

  • 71
    • Nr 71 Order code 71323071

      Kit interface gaskets, Promass 300/500

      Usage: transmitter housing/sensor or transmitter housing/wall mount. Consists of: 5x O-Ring 88,50x3,53 HNBR for interface.

    • Nr 71 Order code 71323072

      Kit interf.gaskets,Promass 300/500,-50oC

      Usage: transmitter housing/sensor or transmitter housing/wall mount. Consists of: O-Ring 88,50x3,53 FVMQ for interface, -50oC/-58oF.

  • 11
    • Nr 11 Order code 71323081

      Kit protective cover option A,300/500,Ex

      Usage: transmitter housing Alu/cast, connection compartment. Option A = HART, PROFIBUS PA, PROFIBUS DP, Modbus RS485, FOUNDATION Fieldbus. Consists of: Connection compartment protective cover, display carrier, 2x screw M4x10.

    • Nr 11 Order code 71323082

      Kit protective cover option B,300/500,Ex

      Usage: transmitter housing Alu/cast, connection compartment. Option B = EtherNet, PROFINET. Consists of: Connection compartment protective cover, display carrier, 2x screw M4x10.

  • 13
    • Nr 13 Order code 71276494

      Kit securing clamp, screw

      Usage: Promass 100, Promag 100, Prosonic Flow E 100/E Heat, CNGmass, LPGmass, LNGmass. Sensor housing: Promag 400(C), (C) = generation index C, Promag/Promass 500, Promag/Promass 500 digital. Consists of: cover clamp, screw M4x16.

  • 82
    • Nr 82 Order code 71228792

      Kit display protec., 400(C)/500 digital

      (C) = generazione index C. Composto da: protezione display 1.4301, materiale per montaggio.

  • 87
    • Nr 87 Order code 71343504

      Kit weather protection cover,500 digital

      Usage: Promag/Promass 500 digital, transmitter housing. Consists of: weather protection cover 4404.

    • Nr 87 Order code 71343505

      Kit weather protection cover, 300/500

      Usage: Promag/Promass 300/500, transmitter housing. Consists of: weather protection cover 4404, installation material.

Download
