Misura radar a onda guidata
Time of Flight
Levelflex FMP54

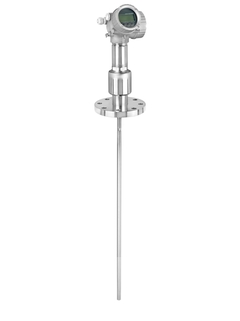

Levelflex FMP54 acciaio inox ©Endress+Hauser

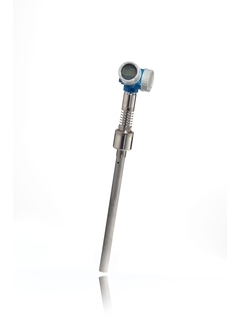

Levelflex FMP54 alluminio ©Endress+Hauser

Principio di misura Time of Flight

Filmato sulla messa in servizio per Levelflex FMP5x a microimpulsi guidati e radar a spazio libero Micropilot FMR5x

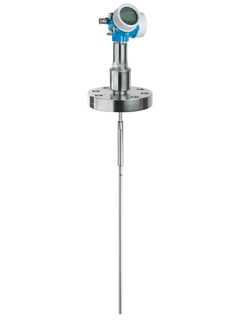

Levelflex FMP54 con compensazione della fase gassosa per applicazioni con alte temperature e alte pressioni

Esclusiva soluzione di gestione dei dati HistoROM per misure di livello sicure con Levelflex FMP54

Algoritmi che si adattano continuamente, garantendo misure di livello sicure grazie a Multi-Echo Tracking con FMP54

La tecnologia Multi-Echo Tracking con Tank Trace registra e monitora tutti i segnali di eco, non solo i segnali di livello, garantendo costantemente misure sicure

Levelflex FMP54 ©Endress+Hauser

Per applicazioni con alta temperatura e alta pressione nel settore delle raffinerie, chimico e dell'energia

Levelflex FMP54 per la misura continua di livello di liquidi in condizioni estreme. La connessione al processo con guarnizione in ceramica-grafite salvaguarda il sensore in caso di alte temperature, pressioni elevate e sostanze tossiche come l'ammoniaca, condizioni frequenti nelle caldaie a vapore. Il passante a tenuta di gas garantisce elevata sicurezza. Solo la compensazione della fase gassosa del Levelflex FMP54 fornisce risultati affidabili con presenza di fasi gassose e di vapore. Misura affidabile in caso di superficie in movimento e schiuma o per fluidi con proprietà fisiche variabili.

  • Vantaggi

    • Misura affidabile anche in condizioni di variabilità del prodotto e del processo

    • Soluzione di gestione dati HistoROM per messa in servizio, manutenzione e diagnostica semplici e rapide

    • Elevata affidabilità grazie al nuovo sistema di monitoraggio Multi-...

  • Campo applicativo

    Versione ad asta, a fune o con sonda coassiale.

    • Connessioni al processo: filettatura o flangia

    • Temperatura: da -196 a +450 °C (da -320 a +842 °F)

    • Pressione: da -1 a +400 bar (da -14,5 a +5,800 psi)

    • Campo di misura massimo: asta 10 m (33 ft), fune 45 m (148...

Caratteristiche e specifiche

Indietro

Details

  • Principio di misura

    Microonde guidate

  • Caratteristica / Applicazione

    Dispositivo Premium per alta pressione/temperatura

    Sonda ad asta, sonda a fune, sonda coassiale

    Memoria dati integrata, pretarato in fabbrica; misura affidabile: in caso di superficie agitata + schiuma.

  • Misurazione interfaccia

    Interfasi liquido/liquido pulite;

    Misura simultanea di interfase e livello totale

  • Specialità

    Heartbeat Technology,

    Bluetooth® messa in servizio,

    Funzionamento e manutenzaione via App SmartBlue,

    HistoROM,

    RFID TAG per una semplice identificazione

  • Alimentazione / Comunicazione

    2-fili (HART / PROFIBUS PA/ FOUNDATION Fieldbus)

    4-fili (HART)

    Bluetooth® wireless technology e App (opzionale)

  • Precisione

    Sonda ad asta: ± 2 mm (0.08")

    Sonda a fune <= 15 m (49 ft):

    ± 2 mm (0.08")

    Sonda a fune > 15 m (49 ft):

    ± 10 mm (0.39")

    Sonda coassiale: ± 2 mm (0.08")

  • Temperatura ambiente

    -50...+80 °C

    (-58...+176 °F)

  • Temperatura di processo

    XT: -196...+280 °C

    (-321...+536 °F)

    HT: -196...+450 °C

    (-321...+842 °F)

  • Pressione assoluta di processo / limite massimo di sovrapressione

    Vuito...400 bar
    (Vuoto...5800 psi)

  • Parti bagnate

    Sonda ad asta:

    304, 316L, Alloy C, Ceramica

    Sonda a fune:

    304, 316, 316L, Alloy C, Ceramica

    Sonda coassiale:

    304, 316L, Alloy C, Ceramica

  • Attacco al processo

    Filettatura:

    G 1 1/2, MNPT 1 1/2

    Flangia:

    ASME 2 … 4",

    DN50 … DN100,

    JIS 10K, 63K,

    Fisher

    Masoneilan

  • Lunghezza del sensore

    Sonda ad asta: 10 m (33 ft)

    Sonda a fune: 45 m (148 ft)

    Sonda coassiale: 6 m (20 ft)

  • Distanza massima di misura

    Asta:

    10 m (33 ft) DK min. >1,6

    Fune:

    25 … 30 m (82 … 98 ft) DK min. >1,6;

    30 … 45 m (98 … 148 ft) DK min. >1,9

    Sonda coassiale: 6 m (20 ft) DK min. >1,4

  • Comunicazione

    4...20 mA HART

    PROFIBUS PA

    FOUNDATION Fieldbus

    Bluetooth® wireless technology

  • Certificati / Approvazioni

    ATEX, FM, CSA, CSA C/US, IEC Ex, JPN Ex, INMETRO, NEPSI, KC

  • Approvazioni di sicurezza

    Prevenzione di troppo pieno WHG

    SIL

  • Approvazioni costruzione

    EN 10204-3.1

    NACE MR0175, MR0103

    ASME B31.1, B31.3

    AD2000

    Approvazione per caldaie a vapore

  • Certificazione navale

    GL/ DNV

  • Opzioni

    Sensore remoto con 3 m/ 9 piedi di cavo,

    Funzionamento remoto via SmartBlue App e Bluetooth®

  • Limiti applicativi

Documenti / Manuali / Software

Accessori / Parti di ricambio

Nr
Order code
Specification
  • 19
    • Nr 19 Order code 71115174

      Filtro custodia 316L, GT18, 1 set

      Consiste in: 2x spina filtro metallo 316L. 1x filtro di compensazione della pressione. Per: FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57, FMR62/67. Per: Promass 200/TB2, Prosonic Flow 200, Prowirl 200.

    • Nr 19 Order code 71115175

      Custodia filtro ottone/Ni GT19/20, 1 set

      Composto da: 2x tappo del filtro in ottone nichelato, filtro di compensazione della pressione. Per: FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57. Uso: Promass 200/TB2, Prosonic Flow 200, Promag 200, Prowirl 200.

  • 17
    • Nr 17 Order code 71115176

      Set housing securing clamps

      Per custodia GT18/GT19/GT20 FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57. Per Promass 200/TB2, Prosonic Flow 200, Promag 200.

  • 20
    • Nr 20 Order code 71110281

      Coperchio GT18 316L, HNBR

      Materiale: 316L. O-ring, EPDM, PTFE rivestito. Per: FMP51/52/54/55/56/57, FMR51/52/53/54/57, FMR62/67. Per: Promass 200/TB2, Prosonic Flow 200, Prowirl 200.

    • Nr 20 Order code 71110282

      Coper. GT18 316L, sight glass, HNBR

      Materiale: 316L. O-ring NBR, PTFE rivestito. Per: FMP51/52/54/55/56/57, FMR51/52/53/54/57, FMR62/67, FHX50. Per: Promass 200/TB2, Prosonic Flow 200, Prowirl 200.

    • Nr 20 Order code 71110292

      Coperchio GT19 PBT-FR, vetro, guarniz.

      Materiale: plastica PBT-FR vetro: PC. O-ring EPDM, rivestimento PTFE. Per: FHX50, FMP50/FMP51/FMP52/ FMP53/FMP54/FMP55/FMP56/FMP57, FMR50/ FMR51/FMR52/FMR53/FMR54/FMR56/FMR57, FMR60/FMR62/FMR67.

    • Nr 20 Order code 71110293

      Coperchio GT19 PBT, guarnizione

      Materiale: plastica PBT, metallizzata. O-ring EPDM, rivestito PTFE. Per: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57, FMR60/FMR62/FMR67.

    • Nr 20 Order code 71110297

      Cover GT20 Alu, sight glass, gasket

      Material: Alluminio, rivestito. O-ring EPDM, PTFE rivestito. Per: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57, FMR60/FMR62/FMR67. Per: Promass 200/TB2, Prosonic Flow 200, Promag 200, Prowirl 200.

    • Nr 20 Order code 71110299

      Cover GT20 Alu, gasket

      Materiale: Alluminio, rivestito. O-ring EPDM, rivestito in PTFE. Per FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57, FMR60/FMR62/FMR67. Per: Promass 200/TB2, Prosonic Flow 200, Promag 200, Prowirl 200.

    • Nr 20 Order code 71383631

      Cover GT18 316L, FVMQ

      Material: 316L. O-Ring FVMQ. Usage: FMP51/FMP54, FMR51/FMR52/FMR54. Usage: Prowirl 200.

    • Nr 20 Order code 71383666

      Cover GT18 316L, sight glass, FVMQ

      Material: 316L. O-Ring FVMQ. Usage: FMP51/FMP54, FMR51/FMR52/FMR54. Usage: Prowirl 200.

    • Nr 20 Order code 71383674

      Cover GT20 Alu, FVMQ

      Material: Alu. O-Ring FVMQ. Usage: FMP51/FMP54, FMR51/FMR52/FMR54. Usage: Prowirl 200.

    • Nr 20 Order code 71383675

      Cover GT20 Alu, sight glass, FVMQ

      Material: Alu. O-Ring FVMQ. Usage: FMP51/FMP54, FMR51/FMR52/FMR54. Usage: Prowirl 200.

  • 25
    • Nr 25 Order code 71110284

      Cover GT18 316L, terminal Ex d, HNBR

      Material: 316L. O-ring EPDM /PTFE coated. Usage: terminal compartment Ex d/XP, FMP51/FMP52/FMP54/FMP55/FMP56/FMP57, FMR51/FMR52/FMR53/FMR54/FMR57, FMR62/FMR67. Usage: Promass 200/TB2, Prosonic Flow 200, Prowirl 200.

    • Nr 25 Order code 71110291

      Coperchio GT18 316L, terminale Ex, guarn

      Materiale: 316L. O-ring EPDM, PTFE rivestito. Per: terminal compartment, non idoneo per Ex d/XP, FMP51/FMP52/FMP54/FMP55/FMP56/FMP57, FMR51/FMR52/FMR53/FMR54/FMR57, FMR62/FMR67.. Per: Promass 200/TB2, Prosonic Flow 200, Prowirl 200.

    • Nr 25 Order code 71110295

      Cover GT19 PBT, Terminal Ex, EPDM

      Materiale: plastica PBT, metallizzato. Utilizzo: vano terminale, non per Ex d/XP, FMP50/FMP51/FMP52/FMP53/FMP54/FMP55/ FMP56/FMP57, FMR50/FMR51/FMR52/FMR53/ FMR54/FMR56/FMR57, FMR60/FMR62/FMR67.

    • Nr 25 Order code 71110301

      Cover GT20 Alu, Terminal Ex, HNBR

      Material: Rivestimento in alluminio. O-ring rivestito EPDM, PTFE. Per: Terminal compartment, non per Ex d/XP, Per FMP50/FMP51/FMP52/FMP53/FMP54/FMP55/ FMP56/FMP57, FMR50/FMR51/FMR52/FMR53/ FMR54/FMR56/FMR57, FMR60/FMR62/FMR67. Usage: Promass 200/TB2, Prosonic Flow 200, Promag 200, Prowirl 200.

    • Nr 25 Order code 71110302

      Coper. GT20 Alu,Terminale Ex d, guarniz.

      Materiale: alluminio, rivestito. O-ring EPDM, PTFE rivestito. Per: blocco terminale Ex d/XP, FMP50/FMP51/FMP52/FMP53/FMP54/FMP55/ FMP56/FMP57, FMR50/FMR51/FMR52/FMR53/ FMR54/FMR56/FMR57, FMR60/FMR62/FMR67. Usage: Promass 200/TB2, Prosonic Flow 200, Promag 200, Prowirl 200.

    • Nr 25 Order code 71185516

      Cover GT18 316L, Terminal, OVP, HNBR

      Material: 316L. O-ring EPDM, PTFE coated. Usage: terminal compartment, for overvoltage protection, not for Ex d/XP, FMP50/FMP51/FMP52/FMP53/FMP54/FMP55/ FMP56/FMP57, FMR50/FMR51/FMR52/FMR53/ FMP54/FMP56/FMP57, FMR62/FMR67. Usage: Promass 200, Prosonic Flow 200, Prowirl 200.

    • Nr 25 Order code 71185517

      Cover GT20 Alu, Terminal, OVP, HNBR

      Material: aluminium. O-ring EPDM, PTFE coated. Usage: terminal compartment, for overvoltage protection, not for Ex d/XP, FMP50/FMP51/FMP52/FMP53/FMP54/FMP55/ FMP56/FMP57, FMR50/FMR51/FMR52/FMR53/ FMR54/FMR56/FMR57, FMR60/FMR62/FMR67. Usage: Promass 200, Prosonic Flow 200, Promag 200, Prowirl 200.

    • Nr 25 Order code 71185518

      Cover GT19 PBT, Terminal, OVP, EPDM

      Material: plastic PBT, metallizied. O-ring EPDM, PTFE coated. Usage: terminal compartment, for overvoltage protection, not for Ex d/XP. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57, FMR60/FMR62/FMR67.

    • Nr 25 Order code 71383668

      Cover GT18 316L, terminal Ex, FVMQ

      Material: 316L. O-Ring FVMQ. Usage: FMP51/FMP54, FMR51/FMR52/FMR54. Usage: Prowirl 200.

    • Nr 25 Order code 71383670

      Cover GT18 316L, terminal Ex d, FVMQ

      Material: 316L. O-Ring FVMQ. Usage: FMP51/FMP54, FMR51/FMR52/FMR54. Usage: Prowirl 200.

    • Nr 25 Order code 71383671

      Cover GT18 316L, Terminal, OVP, FVMQ

      Material: 316L. O-Ring FVMQ. Usage: FMP51/FMP54, FMR51/FMR52/FMR54. Usage: Prowirl 200.

    • Nr 25 Order code 71383679

      Cover GT20 Alu, Terminal Ex, FVMQ

      Material: Alu. O-Ring FVMQ. Usage: FMP51/FMP54, FMR51/FMR52/FMR54. Usage: Prowirl 200.

    • Nr 25 Order code 71383680

      Cover GT20 Alu, Terminal Ex d, FVMQ

      Material: Alu. O-Ring FVMQ. Usage: FMP51/FMP54, FMR51/FMR52/FMR54. Usage: Prowirl 200.

    • Nr 25 Order code 71383682

      Cover GT20 Alu, Terminal, OVP, FVMQ

      Material: Alu. O-Ring FVMQ. Usage: FMP51/FMP54, FMR51/FMR52/FMR54. Usage: Prowirl 200.

  • 65
    • Nr 65 Order code 71110303

      Set di tenuta custodia GT18, GT19, GT20

      Composto da: O-ring 88,5 x3, 53 EPDM / PTFE, coperchio vano elettronica. Custodia GT19 O-Ring 88.5x3.53 NBR, coperchio vano elettronica, custodia GT18, GT20. O-ring 91.67x3.53 EPDM/PTFE, coperchio vano elettronica, custodia GT19. O-Ring 91.67x3.53 NBR, coperchio vano elettronica, custodia GT18, GT20. O-ring 50.39x3.53 EPDM/PTFE, custodia/sensore. FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57, FMR60/FMR62/FMR67. Per: Promass 200/TB2 Prosonic Flow 200, Promag 200, Prowirl 200

    • Nr 65 Order code 71384797

      Sealing set GT18/20, FVMQ

      Consists of: O-Ring 88,5x3,53 FVMQ cover electronics compartment, housung GT18, GT20. O-Ring 91,67x3,53 FVMQ cover terminal compartment, housung GT18, GT20. Usage: FMP51/FMP54, FMR51/FMR52/FMR54. Usage: Prowirl 200.

  • 34
    • Nr 34 Order code 71108594

      I/O modulo 2 fili, 4-20mA, HART, Ex, V2

      Non-Ex, Ex. 1x uscita HART. Versione 2. Per: FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57.

    • Nr 34 Order code 71108594

      I/O modulo 2 fili, 4-20mA, HART, Ex, V2

      Non-Ex, Ex. 1x uscita HART. Versione 2. Per: FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57.

    • Nr 34 Order code 71108594

      I/O modulo 2 fili, 4-20mA, HART, Ex, V2

      Non-Ex, Ex. 1x uscita HART. Versione 2. Per: FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57.

    • Nr 34 Order code 71108595

      I/O module Level, 2-wr.4-20mA,HART,Ex,V1

      Non-Ex, Ex. 1x current output HART. Version 1. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57.

    • Nr 34 Order code 71108595

      I/O module Level, 2-wr.4-20mA,HART,Ex,V1

      Non-Ex, Ex. 1x current output HART. Version 1. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57.

    • Nr 34 Order code 71108595

      I/O module Level, 2-wr.4-20mA,HART,Ex,V1

      Non-Ex, Ex. 1x current output HART. Version 1. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57.

    • Nr 34 Order code 71108595

      I/O module Level, 2-wr.4-20mA,HART,Ex,V1

      Non-Ex, Ex. 1x current output HART. Version 1. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57.

    • Nr 34 Order code 71108599

      I/O module, 2-wire, 4-20mA,HART, PFS, Ex

      Non-Ex, Ex. 1x uscita HART, 1x PFS. PFS=switch output. Per FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57.

    • Nr 34 Order code 71108603

      I/O modulo, 2-fili, PA, PFS, Ex, V1

      Non-Ex, Ex. PROFIBUS PA. PFS=switch output. Versione 1. Per: FMP50/51/52/53/54/55/56/57.

    • Nr 34 Order code 71108603

      I/O modulo, 2-fili, PA, PFS, Ex, V1

      Non-Ex, Ex. PROFIBUS PA. PFS=switch output. Versione 1. Per: FMP50/51/52/53/54/55/56/57.

    • Nr 34 Order code 71108603

      I/O modulo, 2-fili, PA, PFS, Ex, V1

      Non-Ex, Ex. PROFIBUS PA. PFS=switch output. Versione 1. Per: FMP50/51/52/53/54/55/56/57.

    • Nr 34 Order code 71108603

      I/O modulo, 2-fili, PA, PFS, Ex, V1

      Non-Ex, Ex. PROFIBUS PA. PFS=switch output. Versione 1. Per: FMP50/51/52/53/54/55/56/57.

    • Nr 34 Order code 71164940

      I/O modulo, 2 fili, PA/FF, PFS, Ex, V2

      Non-Ex, Ex. PROFIBUS PA, FOUNDATION Fieldbus. PFS=switch output. Versione 2. Per: FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57. Per: Promass 200, Prowirl 200, Promag 200.

    • Nr 34 Order code 71164940

      I/O modulo, 2 fili, PA/FF, PFS, Ex, V2

      Non-Ex, Ex. PROFIBUS PA, FOUNDATION Fieldbus. PFS=switch output. Versione 2. Per: FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57. Per: Promass 200, Prowirl 200, Promag 200.

    • Nr 34 Order code 71164940

      I/O modulo, 2 fili, PA/FF, PFS, Ex, V2

      Non-Ex, Ex. PROFIBUS PA, FOUNDATION Fieldbus. PFS=switch output. Versione 2. Per: FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57. Per: Promass 200, Prowirl 200, Promag 200.

    • Nr 34 Order code 71164940

      I/O modulo, 2 fili, PA/FF, PFS, Ex, V2

      Non-Ex, Ex. PROFIBUS PA, FOUNDATION Fieldbus. PFS=switch output. Versione 2. Per: FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57. Per: Promass 200, Prowirl 200, Promag 200.

    • Nr 34 Order code 71187812

      I/O mod.Level,2-wr.4-20mA,HART,Ex,LP,V2

      Versione 2. Non adatto per Ex d/XP. LP=bassa tensione. 1x uscita HART. Per: FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57.

    • Nr 34 Order code 71207473

      I/O mod. Level,4-wr.DC,4-20mA,HART,Ex,V2

      Non-Ex, Ex. 10.4-48VDC. 1x current output HART. Version 2. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57, FMR60/FMR62/FMR67.

    • Nr 34 Order code 71207474

      I/O mod. Livel,2-fl.2x4-20mA,HART,Ex,V2

      Non-Ex, Ex. Uscita in corrente, 4-20mA HART + 4-20mA analogico. Versione 2. Per: FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57.

    • Nr 34 Order code 71207475

      I/O mod. Level,4-wr.AC,4-20mA,HART,Ex,V2

      Non-Ex, Ex. 90-253VAC. 1x current output HART. Version 2. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57, FMR60/FMR62/FMR67.

  • 37
    • Nr 37 Order code 71110280

      Terminal set 2-wire, I/O module

      Composto da: 4x terminale a 2 poli, verde. Per: FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57, FMR60/62/67. Promass 200/TB2, Prosonic Flow 200, Promag 200, Prowirl 200.

    • Order code 71197334

      Trasmettitore elettronica FHX50

      Composto da: Elettronica, cavo. Per: FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57. Usage: Promass200, Prowirl 200, Promag 200, Prosonic Flow 200.

    • Order code 71296840

      Connettore M12, VA

      Per connettere FHX50. Per: FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57. Not for dust Ex. Usage: Prowirl 200, Promass 200, Promag 200, Prosonic Flow 200.

    • Order code

      Remote display FHX50 please order with separate order structure.

    • Order code 71206552

      Cable FHX50, 5m

      Connection cable, shielded. Usage: FHX50.

    • Order code 71206554

      Cavo FHX50, 10m

      Cavo di collegamento, schermato. Per: FHX50.

    • Order code 71206555

      Cavo FHX50, 20m

      Cavo di connessione. Per: FHX50.

    • Order code 71206556

      Cavo FHX50, 30m

      Cavo di collegamento, schermato. Per: FHX50.

    • Order code 71128617

      Protez. sovratensione (OVP10), 1-Canale

      4-20mA HART. Per: FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57,60,62,67 Per: Promass 200, Prosonic Flow 200, Promag 200, Prowirl 200.

    • Order code 71128619

      Protezione sovratens. (OVP20), 2 canali

      4-20mA HART, PROFIBUS PA, FOUNDATION Fieldbus, Impulso/Frequenza/Stato Uscita. Per: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/ FMR57, FMR60/FMR62/FMR67. Per: Promass 200, Prosonic Flow 200, Promag 200, Prowirl 200.

  • 30
  • 40
    • Nr 40 Order code XPD0024-

      Modulo display, SD02, pulsanti

      Per custodia: GT18, GT19, GT20. Per: FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57, FHX50. Promass 200/TB2, Prosonic Flow 200, t-mass 150, Promag 200, Prowirl 200. Composto da: Display SD02, cavo a spirale, cavo a nastro, copertura connettore.

    • Nr 40 Order code XPD0025-

      Modulo display, SD03, Touch Control

      Custodie: GT18, GT19, GT20. Per: FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57, FHX50. Promass 200/TB2, Prosonic Flow 200, Promag 200, Prowirl 200. Composto da: Display SD03 illuminato, cavo a nastro, coperchio connettore.

  • 56
    • Nr 56 Order code 71114452

      Contrapp. FMP5x, corda 4mm 1/6", 316L

      Materiale: 316L. Vite esagonale M6x12. Per: FMP50/FMP51/FMP54/FMP56/FMP57.

    • Order code 71373490

      Stella centraggio fune, PEEK 48-95mm 1pz

      Distanziale corda per fune 4mm. D=48-95 mm/1.88-3.74 in. Diametro adattabile. Tmax 250oC/482oF. Materiale: PEEK. FDA, EG 1935/2004, conforme EU 10/2011. Per: fune FMP50/FMP51/FMP52/FMP54/FMP55.

    • Order code 71373492

      Stella centraggio fune, PEEK 48-95mm 5pz

      Distanziale corda per fune 4mm. D=48-95 mm/1.88-3.74 in. Diametro adattabile. Tmax 250oC/482oF. Materiale: PEEK. FDA, EG 1935/2004, conforme EU 10/2011. Per: fune FMP50/FMP51/FMP52/FMP54/FMP55.

    • Order code 71381909

      Rod centering star d=48-95mm, PEEK

      Spacers for rods 12mm/0.5in. D=48-95 mm/1.89-3.74in. Diameter adaptable. Tmax 250oC/482oF. Material: PEEK. FDA, EG1935/2004, EU10/2011 compliant. Usage: Rod mounting FMP51/FMP54.

  • 59
    • Nr 59 Order code 71023427

      Nordlock washer DIN25201-A4, M10, 5 pcs.

      6mm rope/16mm rod, 4mm rope flange version, thread G1-1/2, NPT1-1/2. Usage: FMP40/FMP45, FMP57, divisible rod FMP40/FMP45, FMP51/FMP54.

  • 58
    • Order code 71377355

      Modulo Bluetooth (BT10)

      Modulo per comunicazione dati wireless. Per: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57, FMR60/FMR62/FMR67.

    • Order code 71102216

      Kit montag. Cerabar,Deltapilot,Levelflex

      Materiale: 304. Per montaggio a parete/palina (2"), PMC71, PMP71/75, FMB70, PMC51, PMP51/55, FMB50/51/52/53. FMP50/51/52/53/54/55/56/57.

    • Order code 71069064

      Centro rondella PEEK 48-95mm/1.89-3.74in

      Distanziali per aste 16mm/0.63in. D=48-95 mm/1.89-3.74in. Diametro adattabile. Tmax 250oC/482oF. Materiale: PEEK FDA, EG1935/2004, conforme EU10/2011. Per il montaggio dell'asta FMP51/FMP54.

    • Order code 71069065

      Centering star PFA 37mm/16mm

      Distanziali per aste 16mm/0.63in. Tmax 250oC/482oF. Materiale: PFA. FDA, EG1935/2004, conforme a EU10/2011. Per:FMP51/FMP52/FMP54/FMP55.

  • 54
  • 70
    • Order code 71162242

      Protezione antiven. GT18/GT19/GT20, 316L

      Per: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/FMR52/FMR53/FMR54/ FMR56/FMR57, FMR60/FMR62/FMR67. Per: Promass 200/TB2, Prosonic Flow 200, Promag 200, Prowirl 200.

    • Order code XPRFID-

      Spare RFID TAG

      Consists of: RFID TAG, fixing wire, crimp sleeve.
