Levelflex M FMP43

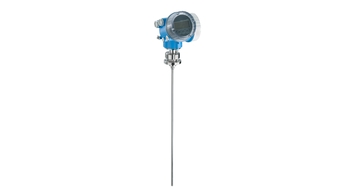

Product picture of: Levelflex M FMP43

Questo prodotto non è più disponibile.

Cercare la nuova versione nella sezione predecessore / successore o contattare l'ufficio Endress+Hauser locale.

Caratteristiche e specifiche

Indietro

Details

  • Principio di misura

    Microonde guidate

  • Caratteristica / Applicazione

    Sonda ad asta:

    non influenzata dal funzionamento della testa spray

    Sonde elettropulite o pulite meccanicamente

  • Specialità

    Certificato di conformità farmaceutica

  • Alimentazione / Comunicazione

    A 2 fili (HART/PROFIBUS PA/Fieldbus Foundation)

  • Precisione

    Sonda ad asta: ±3 mm (0.13")

  • Temperatura ambiente

    -40 … 80 °C
    (-40 … 176 °F)

  • Temperatura di processo

    -20 … 150 °C
    (-4 … 302 °F)

  • Pressione assoluta di processo / limite massimo di sovrapressione

    Vuoto … 16 bar

  • Parti bagnate

    316L/1.4435

    PEEK (USP Cl. VI)

    EPDM / KALREZ (USP Cl. VI)

  • Attacco al processo

    Flangia: ASME B16.5 1 1/2", 2"

  • Connessione igienica al processo

    Tri-Clamp ISO2852
    DIN11851
    SMS
    DIN11864
    NEUMO Biocontrol

  • Lunghezza del sensore

    Asta: 4 m (178")

  • Distanza massima di misura

    Sonda ad asta:

    4 m (178") DK min. > 1,6

  • Comunicazione

    4-20 mA HART
    PROFIBUS PA
    Fieldbus Foundation

  • Certificati / Approvazioni

    ATEX

    FM

    CSA

    SIL

    EHEDG, 3A

  • Opzioni

    Kit di taratura

  • Successore

    FMP53

Documenti / Manuali / Software

Accessori / Parti di ricambio

Nr
Order code
Specification
    • Order code 52006628

      PROFIBUS PA CONNETTORE M20 (WDM) 150mm

      Connettore a quattro poli M12 adatto al montaggio su passacavo M20X1.5 per il collegamento diretto degli strumenti alla T-BOX. Completo di cavo di collegamento lungo 150 mm Non per PROMAG e PROMASS.

  • 12
    • Nr 12 Order code 535720-9020

      Set of screws housing F12/T12/F23

      Consists of: 1x stop screw M5x10. 1x retaining screw M8x10. Usage: FMR230/FMR231, FMR240/FMR244/FMR245, FMR250, FMU40/FMU41/FMU42/FMU43/FMU44.

    • Order code 543199-0001

      Protective cover for housing T12/F12, SS

      Usage: Micropilot M, Micropilot S, Prosonic M, Levelflex M. Material: 316Ti.

  • 20
    • Nr 20 Order code 517391-0011

      Cover F12/T12 Alu, coated, gasket

      Material: aluminium, coated. O-ring EPDM. Usage: FMR230/FMR231, FMR240/FMR244/FMR245, FMR250, FMU40/FMU41/FMU42/FMU43/FMU44.

    • Nr 20 Order code 52005936

      Coperchio F12/T12 Alu,finestra,guarniz.

      Materiale: alluminio per tastiera + modulo display VU331 e custodia F12/T12 Micropilot M/S, Prosonic M, Levelflex M

    • Nr 20 Order code 52018670

      Coperchio F23, 316L,finestra,guarnizione

      Materiale: 316L per display VU331 Levelflex M, Micropilot M

    • Nr 20 Order code 52018671

      Cover F23 316L, gasket

      Material: 316L. Usage: Levelflex M, Micropilot M.

  • 25
    • Nr 25 Order code 518710-0020

      Cover T3/T12 Alu, coated, gasket

      Material: aluminium, coated. O-ring EPDM. Usage: FMR230/FMR231,FMR240/FMR244/ FMR245, FMR250, FMR530/FMR531/FMR532/ FMR533, FMR540, FMU40/FMU41/FMU42.

  • 11
    • Nr 11 Order code 52006026

      coperchio per vano connessioni F12/F23

      Cappuccio per vano connessioni Micropilot M, Prosonic M, Levelflex M

    • Nr 11 Order code 52019062

      Coperchio per vano connessioni F12/F23

      Cappuccio per vano connessioni per display separato FHX40 Micropilot M, Prosonic M, Levelflex M

  • 35
    • Nr 35 Order code 52006197

      Modulo morsetti 4-poli, HART, 2-fili

      con connessione cavo per custodia F12 Micropilot M, Levelflex M, Prosonic M

    • Nr 35 Order code 52012156

      Klemmenmodul 4p +2Dr-Filter/PA+FF(F12

      PROFIBUS PA, FOUNDATION Fieldbus. Usage: Micropilot II/M, Prosonic M, Levelflex M.

    • Nr 35 Order code 52013302

      Mod.termin. Ex d, 4poli, 2fili, HART,T12

      Per: custodia T12, Levelflex M, Prosonic M, Micropilot M.

    • Nr 35 Order code 52013303

      Klemmenmodul FMP40, Ex d, 2-Dr., PA, FF

      2-wire, PROFIBUS PA/FOUNDATION Fieldbus. Ex d limiter. Usage: housing T12, Levelflex M, Micropilot M, Prosonic M.

    • Nr 35 Order code 52018949

      Terminal module 4p, EEx ia, HART,T12,OVP

      4-pole, 2-wire. OVP = overvoltage protection. Usage: housing T12, Levelflex M, Prosonic M, Micropilot M.

    • Nr 35 Order code 52018950

      Terminal mod. 2-p.,EEx ia,PA/FF,T12,OVP

      2-pole, 2-wire. PROFIBUS PA, FOUNDATION Fieldbus. OVP = overvoltage protection. Usage: housing T12, Levelflex M, Prosonic M, Micropilot M.

  • 11
    • Nr 11 Order code 52005643

      Abdeckhaube T12 (MICROPILOT M/S)

      Cable compartment, electronics side. Usage: Micropilot M/S, Prosonic M, Levelflex M.

  • 35
  • 40
    • Nr 40 Order code 52026443

      Display VU331, versione 2

      Display alfanumerico, 4-linee Per: FMR530/532/533, FMR540, FMU40/41/42/43/44.

    • Order code 52013874

      Staffa di montaggio palina FHX40 1"/2"

      per display separato FHX40

    • Order code FHX40-

      Display FHX40

      Display remoto per: Micropilot M, Prosonic M, Levelflex M, Gammapilot M. Custodia da campo IP65/IP67 NEMA 4x. LCD a 4 linee. :: calibrazione e visualizzazione dati tramite menu guida :: Setup facile :: Lingua selezionabile :: visualizzaz. della curva di inviluppo

  • 52
    • Nr 52 Order code 71043425

      Aseptic coupling DIN11864-1 A DN25 tube

      DIN11864-A, 316L. Slotted nut DIN11851 F25. Electro-polished. Usage: FMP53.

    • Nr 52 Order code 71043426

      Attacco latte DIN11851 DN40 PN40

      Materiale: 316L. Manicotto scanalato DIN11851 F40. Uso: FMP43.

    • Nr 52 Order code 71043427

      Dairy fitting DIN11851 DN50 PN40

      Material: 316L. Slotted nut DIN11851 F50. Usage: FMP53.

    • Nr 52 Order code 71043428

      Adapter NEUMO BioControl DN25 PN16

      Flange adapter. Material: 316L. Electro-polished. Usage: FMP53.

    • Nr 52 Order code 71043429

      Tri-Clamp ISO2852 DN25-38 1..1-1/2"

      Materiale: 316L. Elettro-lucidatura. Uso: FMP43

    • Nr 52 Order code 71043430

      Tri-Clamp ISO2852 DN40-51 2"

      Material: 316L. Electro-polished. Usage: FMP53.

    • Nr 52 Order code 71043438

      Tri-Clamp ISO2852 DN70-76.1 3"

      Material: 316L. Electro-polished. Usage: FMP53.

    • Nr 52 Order code 71043439

      Adapter SMS 2" PN25, 316L

      Slotted nut. Usage: FMP53.

    • Nr 52 Order code 71043440

      Adapter SMS 1-1/2" PN25, 316L

      Slotted nut. Usage: FMP53.

    • Nr 52 Order code 71043443

      Aseptic coupl.DIN11864-1 A DN25 tube,3.1

      DIN111864-A, 316L. Slotted nut DIN11851 F25. Electro-polished. EN10204-3.1 material (316L wetted parts), inspection certificate. Usage: FMP53.

    • Nr 52 Order code 71043444

      Dairy fitting DIN11851 DN40 PN40, 3.1

      Material: 316L. Slotted nut DIN11851 F40. EN10204-3.1 material (316L wetted parts), inspection certificate. Usage: FMP53.

    • Nr 52 Order code 71043445

      Dairy fitting DIN11851 DN50 PN40, 3.1

      Material: 316L. Slotted nut DIN11851 F50. EN10204-3.1 material (316L wetted parts), inspection certificate. Usage: FMP53.

    • Nr 52 Order code 71043446

      Adapter NEUMO BioControl DN25 PN16, 3.1

      Flange adapter. Material: 316L. Electro-polished. EN10204-3.1 material (316L wetted parts), inspection certificate. Usage: FMP53.

    • Nr 52 Order code 71043447

      Tri-Clamp ISO2852 DN25-38 1..1-1/2", 3.1

      Materiale: 316L. Elettro lucidatura. Certificato materiali EN10204-3.1 (316L parti bagnate). Per: FMP43, FMP53.

    • Nr 52 Order code 71043448

      Tri-Clamp ISO2852 DN40-51 2", 3.1

      Material: 316L. Electro-polished. EN10204-3.1 material (316L wetted parts), inspection certificate. Usage: FMP53.

    • Nr 52 Order code 71043449

      Tri-Clamp ISO2852 DN70-76.1 3", 3.1

      Material: 316L. Electro-polished. EN10204-3.1 material (316L wetted parts), inspection certificate. Usage: FMP53.

    • Nr 52 Order code 71043450

      Adapter SMS 2" PN25, 316L, 3.1

      Slotted nut. EN10204-3.1 material (316L wetted parts), inspection certificate. Usage: FMP53.

    • Nr 52 Order code 71043451

      Adapter SMS 1-1/2" PN25, 316L, 3.1

      Slotted nut. EN10204-3.1 material (316L wetted parts), inspection certificate. Usage: FMP53.

    • Order code 71041381

      Weld-in adapter M24 D65, 316L

      Montaggio a filo connessione al processo FMP43 "U1J" Foro centrale: 65mm Materiale: 316L Per: FMP53, FTL33, FTW23/FTW33.

    • Order code 71041383

      Adattatore a saldare M24 D65, 316L, 3.1

      Montaggio a filo connessione al processo Foro centrale: 65mm Materiale: 316L Certificato d'Ispezione materiale EN10204-3.1 Conforme FDA, EHEDG, 3-A. Per: FFMP53, FTL33, FTW23/FTW33.

  • 57
    • Nr 57 Order code 71043452

      Sealing kit FMP43,FMP53 Kalrez, 2 pieces

      Consists of: O-ring 9.25x1.78 FFKM 70 Kalrez FDA. Rod/process connection. O-ring 15.54x2.62 FFKM 70 Kalrez FDA. Sensor body/process connection. Usage: FMP43, FMP53.

    • Nr 57 Order code 71043453

      Sealing kit FMP43, FMP53 EPDM, 2 pieces

      Consists of: O-ring 9.25x1.78 EPDM FDA. Rod/process connection. O-ring 15.54x2.62 EPDM FDA. Sensor body/process connection. Usage: FMP43, FMP53.

  • Successore

    • Levelflex FMP53

      Algoritmi dinamici e valutazione Multi-Echo Tracking, gestione dei dati tramite HistoROM integrata - FMP53, sviluppato secondo IEC 61508, aumenta la sicurezza e riduce i costi.
