Barriera a microonde, ricevitore

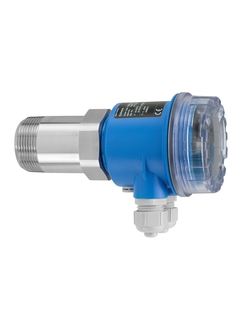

Soliwave FDR56

Soliwave FDR56 ©Endress+Hauser

Ricevitore per la misura di livello senza contatto su prodotti solidi

La barriera a microonde Soliwave FDR56 utilizza il metodo senza contatto per il controllo di livello. Può essere installato in contenitori, conduit, pozzetti o su pozzetti a caduta libera. È possibile misurare dall'esterno attraverso contenitori non metallici. Adatto come interruttore di livello per il controllo e il conteggio di tutti i tipi di materiali sfusi. Interagisce con l'emettitore Soliwave FQR56.

  • Vantaggi

    • Possibilità di montaggio affiorante o installazione non a contatto

    • Robustezza meccanica, assenza di usura, lunga vita operativa, non richiede manutenzione e sensore a contatto col processo a membrana ceramica (opzionale)

    • La custodia dell'elettronica può...

  • Campo applicativo

    Solidi sfusi tipici sono: trucioli di legno, polvere di legno o di farina; gesso, cemento, cenere; brandelli di carta o cartone, ghiaia, sabbia, sacchi di polveri in generale, borse o scatole.

    • Attacchi al processo: Filettatura

    • Temperatura ambiente: da -...

Caratteristiche e specifiche

Indietro

Details

  • Principio di misura

    Barriera a microonde

  • Caratteristica / Applicazione

    Ricetrasmittente

    Controllo di livello senza contatto e monitoraggio della portata
    Rilevamento, conteggio e posizionamento di oggetti

    Monitoraggio dei punti di trasferimento materiali

    Rilevazione e analisi di depositi e contaminazione


    Installazione:

    Installazione senza contatto (finestra di trasmissione) o installazione a filo frontale (contatto)

  • Specialità

    Campo di misura: max. 100 m

  • Alimentazione / Comunicazione

    85 ... 253 VAC

    20 ... 60 VDC/ 20 ... 30 VAC

  • Temperatura ambiente

    -40 °C...+70 °C

    (-40°F...+158°F)

  • Temperatura di processo

    Installazione senza contatto: qualsiasi

    All'interno dell'installazione:

    -40°C ... + 70°C (-40°F ... + 158°F)

    Con adattatore HT:

    fino a +450°C (+842°F)

  • Pressione assoluta di processo / limite massimo di sovrapressione

    Installazione senza contatto: qualsiasi

    All'interno dell'installazione:

    0,5 bar ... 6,8 bar (7,2 psi ... 99 psi) ass.

    Con adattatore HD:

    fino a +21 bar (+305 psi) ass.

  • Densità minima del prodotto

    Peso dei solidi: > 10 g/l

  • Parti bagnate

    Installazione senza contatto:
    parti non bagnate

    All'interno dell'installazione:

    316Ti o alluminio;

    PTFE o ceramica

  • Attacco al processo

    1-1/2" R, 1-1/2" G, 1-1/2" NPT

  • Connessione igienica al processo

    Installazione senza contatto

  • Comunicazione

    Relè SPDT

    Relè allo stato solido

    4-20 mA

  • Certificati / Approvazioni

    ATEX, CSA C/US, IEC Ex

  • Approvazioni costruzione

    EN10204-3.1

  • Opzioni

    Oblò in vetro laterale

    Adattatore per alta temperatura

    Adattatore per alta pressione

    Staffa di installazione

    FAR50, FAR51, FAR52, FAR53, FAR54, FAR55

  • Componenti

    Trasmettitore: FQR56

  • Limiti applicativi

    Peso solido: < 10 g/l

Documenti / Manuali / Software

Accessori / Parti di ricambio

Nr
Order code
Specification
    • Order code 71125423

      Electronic insert D-AA1A, FDR56, V1

      Electronic module receiver. Non-hazardous area, relay, AC version. Compatible for devices that have been delivered until 30.04.2016. Usage: FDR56.

    • Order code 71125424

      Electronic insert D-AA1E, FDR56, V1

      Electronic module receiver. Non-hazardous area, relay, DC version. Compatible for devices that have been delivered until 30.04.2016. Usage: FDR56.

    • Order code 71125425

      Electronic insert D-AA2A, FDR56

      Electronic module receiver. Non-hazardous area, 4-20mA, AC version. Usage: FDR56.

    • Order code 71125426

      Electronic insert D-AA2E, FDR56

      Electronic module receiver. Non-hazardous area, 4-20mA, DC version. Usage: FDR56.

    • Order code 71125427

      Electronic insert D-AA3A, FDR56

      Electronic module receiver. Non-hazardous area, solid-state-relay, AC version. Usage: FDR56.

    • Order code 71125428

      Electronic insert D-AA3E, FDR56

      Electronic module receiver. Non-hazardous area, solid-state-relay, DC version. Usage: FDR56.

    • Order code 71125429

      Electronic insert D-BA1A, FDR56, V1

      Electronic module receiver. ATEX II 1/2D IP66 T102oC, relay, AC version. Compatible for devices that have been delivered until 30.04.2016. Usage: FDR56.

    • Order code 71125430

      Electronic insert D-BA1E, FDR56, V1

      Electronic module receiver. ATEX II 1/2D IP66 T102oC, relay, DC version. Compatible for devices that have been delivered until 30.04.2016. Usage: FDR56.

    • Order code 71125431

      Electronic insert D-BA2A, FDR56

      Electronic module receiver. ATEX II 1/2D IP66 T102oC, 4-20mA, AC version. Usage: FDR56.

    • Order code 71125432

      Electronic insert D-BA2E, FDR56

      Electronic module receiver. ATEX II 1/2D IP66 T102oC, 4-20mA, DC version. Usage: FDR56.

    • Order code 71125433

      Electronic insert D-BA3A, FDR56

      Electronic module receiver. ATEX II 1/2D IP66 T102oC, solid-state-relay, AC version. Usage: FDR56.

    • Order code 71125434

      Electronic insert D-BA3E, FDR56

      Electronic module receiver. ATEX II 1/2D IP66 T102oC, solid-state-relay, DC version. Usage: FDR56.

    • Order code 71125436

      Electronic insert D-IA1A, FDR56, V1

      Electronic module receiver. IECEx II 1/2D IP66 T102oC, relay, AC version. Compatible for devices that have been delivered until 30.04.2016. Usage: FDR56.

    • Order code 71125437

      Electronic insert D-IA1E, FDR56, V1

      Electronic module receiver. IECEx II 1/2D IP66 T102oC, relay, DC version. Compatible for devices that have been delivered until 30.04.2016. Usage: FDR56.

    • Order code 71125438

      Electronic insert D-IA2A, FDR56

      Electronic module receiver. IECEx II 1/2D IP66 T102oC, 4-20mA, AC version. Usage: FDR56.

    • Order code 71125439

      Electronic insert D-IA2E, FDR56

      Electronic module receiver. IECEx II 1/2D IP66 T102oC, 4-20mA, DC version. Usage: FDR56.

    • Order code 71125440

      Electronic insert D-IA3A, FDR56

      Electronic module receiver. IECEx II 1/2D IP66 T102oC, Solid-state-relay, AC version. Usage: FDR56.

    • Order code 71125441

      Electronic insert D-IA3E, FDR56

      Electronic module receiver. IECEx II 1/2D IP66 T102oC, Solid-state-relay, DC version. Usage: FDR56.

    • Order code 71258315

      Electronic insert D-CA1A, FDR56

      Electronics receiver. CSA General Purpose, relay, AC version. Usage: FDR56.

    • Order code 71258316

      Electronic insert D-CA1E, FDR56

      Electronics receiver. CSA General Purpose, relay, DC version. Usage: FDR56.

    • Order code 71258317

      Electronic insert D-CA2A, FDR56

      Electronics receiver. CSA General Purpose, 4-20mA, AC version. Usage: FDR56.

    • Order code 71258318

      Electronic insert D-CA2E, FDR56

      Electronics receiver. CSA General Purpose, 4-20mA, DC version. Usage: FDR56.

    • Order code 71258319

      Electronic insert D-CA3A, FDR56

      Electronics receiver. CSA General Purpose, solid-state-relay, AC version. Usage: FDR56.

    • Order code 71258321

      Electronic insert D-CA3E, FDR56

      Electronics receiver. CSA General Purpose, solid-state-relay, DC version. Usage: FDR56.

    • Order code 71258322

      Electronic insert D-CB1A, FDR56

      Electronics receiver. CSA C/US Class II, Div. 1, Group E-G, relay, AC version. Usage: FDR56.

    • Order code 71258324

      Electronic insert D-CB1E, FDR56

      Electronics receiver. CSA C/US Class II, Div. 1, Group E-G, relay, DC version. Usage: FDR56.

    • Order code 71258325

      Electronic insert D-CB2A, FDR56

      Electronics receiver. CSA C/US Class II, Div. 1, Group E-G, 4-20mA, AC version. Usage: FDR56.

    • Order code 71258327

      Electronic insert D-CB2E, FDR56

      Electronics receiver. CSA C/US Class II, Div. 1, Group E-G, 4-20mA, DC version. Usage: FDR56.

    • Order code 71258329

      Electronic insert D-CB3A, FDR56

      Electronics receiver. CSA C/US Class II, Div. 1, Group E-G, solid-state-relay, AC version. Usage: FDR56.

    • Order code 71258330

      Electronic insert D-CB3E, FDR56

      Electronics receiver. CSA C/US Class II, Div. 1, Group E-G, solid-state-relay, DC version. Usage: FDR56.

    • Order code 71324253

      Electronic insert D-AA1A, FDR56, V2

      Electronic module receiver. Non-hazardous area, relay, AC version. Compatible for devices that have been delivered from 01.05.2016 on. Usage: FDR56.

    • Order code 71324258

      Electronic insert D-AA1E, FDR56, V2

      Electronic module receiver. Non-hazardous area, relay, DC version. Compatible for devices that have been delivered from 01.05.2016 on. Usage: FDR56.

    • Order code 71324267

      Elektronikeinsatz D-AA1A, FDR56 (F34)

      Electronic module receiver. Non-hazardous area, relay, AC version. Usage: FDR56.

    • Order code 71324268

      Elektronikeinsatz D-AA1E, FDR56 (F34)

      Electronic module receiver. Non-hazardous area, relay, DC version. Usage: FDR56.

    • Order code 71324271

      Electronic insert D-AA2A, FDR56 (F34)

      Electronic module receiver. Non-hazardous area, 4-20mA, AC version. Usage: FDR56.

    • Order code 71324274

      Electronic insert D-AA2E, FDR56 (F34)

      Electronic module receiver. Non-hazardous area, 4-20mA, DC version. Usage: FDR56.

    • Order code 71324276

      Electronic insert D-AA3A, FDR56 (F34)

      Electronic module receiver. Non-hazardous area, solid-state-relay, AC version. Usage: FDR56.

    • Order code 71324277

      Electronic insert D-AA3E, FDR56 (F34)

      Electronic module receiver. Non-hazardous area, solid-state-relay, DC version. Usage: FDR56.

    • Order code 71324279

      Electronic insert D-BA1A, FDR56, V2

      Electronic module receiver. ATEX II 1/2D IP66 T102oC, relay, AC version. Compatible for devices that have been delivered from 01.05.2016 on. Usage: FDR56.

    • Order code 71324280

      Electronic insert D-BA1E, FDR56, V2

      Electronic module receiver. ATEX II 1/2D IP66 T102oC, relay, DC version. Compatible for devices that have been delivered from 30.04.2016 on. Usage: FDR56.

    • Order code 71324300

      Electronic insert D-BA1A, FDR56 (F34)

      Electronic module receiver. ATEX II 1/2D IP66 T102oC, relay, AC version. Usage: FDR56.

    • Order code 71324301

      Electronic insert D-BA1E, FDR56 (F34)

      Electronic module receiver. ATEX II 1/2D IP66 T102oC, relay, DC version. Usage: FDR56.

    • Order code 71324324

      Electronic insert D-BA2A, FDR56 (F34)

      Electronic module receiver. ATEX II 1/2D IP66 T102oC, 4-20mA, AC version. Usage: FDR56.

    • Order code 71324325

      Electronic insert D-BA2E, FDR56 (F34)

      Electronic module receiver. ATEX II 1/2D IP66 T102oC, 4-20mA, DC version. Usage: FDR56.

    • Order code 71324327

      Electronic insert D-BA3A, FDR56 (F34)

      Electronic module receiver. ATEX II 1/2D IP66 T102oC, Solid-state-relay, AC version. Usage: FDR56.

    • Order code 71324329

      Electronic insert D-BA3E, FDR56 (F34)

      Electronic module receiver. ATEX II 1/2D IP66 T102oC, Solid-state-relay, DC version. Usage: FDR56.

    • Order code 71324380

      Electronic insert D-IA1A, FDR56, V2

      Electronic module receiver. IECEx II 1/2D IP66 T102oC, relay, AC version. Compatible for devices that have been delivered from 01.05.2016 on. Usage: FDR56.

    • Order code 71324381

      Electronic insert D-IA1E, FDR56, V2

      Electronic module receiver. IECEx II 1/2D IP66 T102oC, relay, DC version. Compatible for devices that have been delivered from 01.05.2016 on. Usage: FDR56.

    • Order code 71324382

      Electronic insert D-IA1A, FDR56 (F34)

      Electronic module receiver. IECEx II 1/2D IP66 T102oC, relay, AC version. Compatible for devices that have been delivered from 01.05.2016 on. Usage: FDR56.

    • Order code 71324383

      Electronic insert D-IA1E, FDR56 (F34)

      Electronic module receiver. IECEx II 1/2D IP66 T102oC, relay, DC version. Compatible for devices that have been delivered from 01.04.2016 on. Usage: FDR56.

    • Order code 71324387

      Electronic insert D-IA2A, FDR56 (F34)

      Electronic module receiver. IECEx II 1/2D IP66 T102oC, 4-20mA, AC version. Usage: FDR56.

    • Order code 71324388

      Electronic insert D-IA2E, FDR56 (F34)

      Electronic module receiver. IECEx II 1/2D IP66 T102oC, 4-20mA, DC version. Usage: FDR56.

    • Order code 71324389

      Electronic insert D-IA3A, FDR56 (F34)

      Electronic module receiver. IECEx II 1/2D IP66 T102oC, Solid-state-relay, AC version. Usage: FDR56.

    • Order code 71324390

      Electronic insert D-IA3E, FDR56 (F34)

      Electronic module receiver. IECEx II 1/2D IP66 T102oC, Solid-state-relay, DC version. Usage: FDR56.

    • Order code 71113441

      HT-adattatore R1-1/2 + Rp1-1/2, 316Ti

      Per: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71113449

      HT-adapter NPT1-1/2, 316Ti

      Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71113450

      Prolunga 225mm, adattat. HT R1-1/2 +

      Per: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71113451

      Extension 325mm, HT-adattatore R1-1/2 +

      Per: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71113452

      Estensione 525mm, HT-adattatore R1-1/2 +

      Per:FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71113453

      Extension 225mm, HT-Adapter NPT1-1/2

      Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71113454

      Extension 325mm, HT-adapter NPT1-1/2

      Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71113455

      Extension 525mm, HT-adapter NPT1-1/2

      Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 52017501

      Mounting bracket FQR5x/FDR5x, Aluminium

      Per: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 52017502

      Mounting bracket FQR5x/FDR5x, Plastics

      Per: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71006345

      Flangia DN40 PN6, Rp1-1/2, Alu

      Cerchio dei fori: 100mm. Per: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71006346

      Flangia 1-1/2" 150lbs, NPT1-1/2, Alu

      Cerchio dei fori: 98.6mm, Per: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71006348

      Flangia DN40 PN16, Rp1-1/2, 316Ti

      EN1092-1, A. Per: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71006349

      Flangia 1-1/2" Cl.150, NPT1-1/2, 316Ti

      ASME B16.5. Per: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71006350

      Flangia DN50 PN16, Rp1-1/2, 316Ti

      Per: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71006351

      Flange NPS 2" Cl.150, NPT1-1/2, 316Ti

      ASME B16.5. Per: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71006352

      Flangia DN100 PN16, Rp1-1/2, 316Ti

      Per: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71006353

      Flangia NPS 4" CL.150, NPT1-1/2, 316Ti

      ASME B16.5. Per: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71026443

      Supporto saldato DN50, 200oC

      Viti di montaggio. Materiale: 316Ti, silicone Per: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71026444

      Supporto saldato DN80, 200oC

      Viti di montaggio. Materiale: 316Ti, silicone Per: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71026445

      Supporto saldato DN100, 200oC

      Viti di montaggio Materiale: 316Ti, silicone Per: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71026446

      Supporto saldato DN50, 10bar, 200oC

      Viti di montaggio Materiale: 316Ti/321, silicone Per: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71026447

      Supporto saldato DN80, 10bar, 200oC

      Viti di montaggio Materiale: 316Ti/321, silicone Per: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71026448

      Supporto saldato DN100, 10bar, 200oC

      Viti di montaggio Materiale: 316Ti/321, silicone Per: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71026449

      Supporto flangiato DIN/EN DN50, 25bar,20

      Viti di montaggio per contro flangia. Materiale: 316Ti, PTFE, C4400 Per: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71026450

      Supporto flangiato DIN/EN DN80, 25bar,20

      Viti di montaggio per contro flangia. Materiale: 316Ti, PTFE, C4400 Per: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71026451

      Supporto flangiato DIN/EN DN100,25bar,2

      Viti di montaggio per contro flangia. Materiale: 316Ti, PTFE, C4400 Per: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71108383

      Flange DN40 PN16, Rp1-1/2, 316Ti, 3.1

      EN1092-1,A. Inspection cert. EN10204-3.1 material (316Ti wetted parts). Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71108387

      Flange 1-1/2" Cl.150,NPT1-1/2,316Ti,3.1

      ASME B16.5. Inspection cert. EN10204-3.1 material (316Ti wetted parts). Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71108388

      Flange DN50 PN16, Rp1-1/2, 316Ti, 3.1

      EN1092-1,A. Inspection cert. EN10204-3.1 material (316Ti wetted parts). Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71108389

      Flange 2" Cl.150, NPT1-1/2,316Ti, 3.1

      ASME B16.5. Inspection cert. EN10204-3.1 material (316Ti wetted parts). Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71108390

      Flangia DN100 PN16, Rp1-1/2, 316Ti, 3.1

      EN1092-1,A. certificato ispezione materiali EN10204-3.1 (316Ti parti bagnate). Per FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71108391

      Flange 4" Cl.150, NPT1-1/2,316Ti, 3.1

      ASME B16.5. Inspection cert. EN10204-3.1 material (316Ti wetted parts). Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71209097

      Sightglass disc DN100, 25bar, 200oC

      Installation on flange fitting. Material: borosilicate glass. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71209100

      Sightglass disc DN80, 25bar, 200oC

      Installation on flange fitting. Material: borosilicate glass. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71209101

      Sightglass disc DN50, 25bar, 200oC

      Installation on flange fitting. Material: borosilicate glass. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71209107

      Sightglass disc DN100, 10bar, 200oC

      Installation on weld-in fitting. Material: borosilicate glass. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71209111

      Sightglass disc DN80, 10bar, 200oC

      Installation on weld-in fitting. Material: borosilicate glass. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71209114

      Sightglass disc DN50, 10bar, 200oC

      Installation on weld-in fitting. Material: borosilicate glass. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71209115

      Sightglass disc DN100, 200oC

      Installation on weld-in fitting. Material: borosilicate glass. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71209116

      Sightglass disc DN80, 200oC

      Installation on weld-in fitting. Material: borosilicate glass. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71209118

      Sightglass disc DN50, 200oC

      Installation on weld-in fitting. Material: borosilicate glass. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71209119

      Sightglass disc DN100, 6bar, 200oC

      Installation on screw-type fitting. Material: borosilicate glass. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71209121

      Sightglass disc DN80, 6bar, 200oC

      Installation on screw-type fitting. Material: borosilicate glass. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71209122

      Sightglass disc DN50, 6bar, 200oC

      Installation on screw-type fitting. Material: borosilicate glass. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.
