Conductive
Point level detection
Pump Protection FTW360

Compact flush-mounted probe

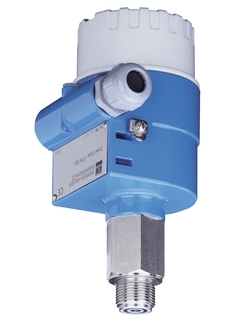

  • Pump Protection FTW360 ©Endress+Hauser

The FTW360 is made for detection of liquids on the suction side of a pump for dry run protection. It operates in all conductive liquids, sludges and pastes that do not form an insulated build-up on the wall of the piping (e.g. oil film). The unit is also suitable for minimum or maximum detection in tanks.

Benefits

  • Simple and reliable solution also for adhesive or viscous products

  • Cost-effective probe for conductive liquids

  • Universal electronics for AC and DC voltages

Field of application

For detection of liquids on the suction side of a pump for dry run protection. For conductive liquids, sludges and pastes that do not form an insulated build-up on the wall of the piping (e.g. oil film). For minimum or maximum detection in tanks.

  • Process connection: Thread

  • Sensor length: Flush-mounted

  • Temperature: -20 to +100°C (-4 to +212°F), CIP to 130°C, for ½ h

  • Pressure: -1 to 10bar (-14.5 to 145psi)

Features and specifications

Documents / Manuals / Software

Accessories / Spare parts

Predecessor / Successor

Predecessor: T10805, T12824, T6256
